Lunatone Light Management Relais-Controller DALI 4Ch RC - 89453860-DE
Lunatone Light Management Relais-Controller DALI 4Ch RC - 89453860-DE
Shipping in 5 day(s)
€70.45
Prices incl. VAT plus shipping costs net €59.20
Product information "Lunatone Light Management Relais-Controller DALI 4Ch RC - 89453860-DE"

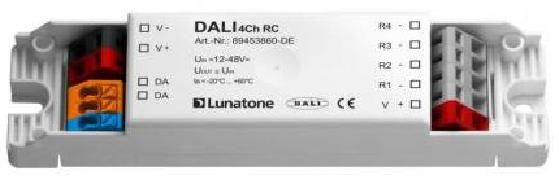

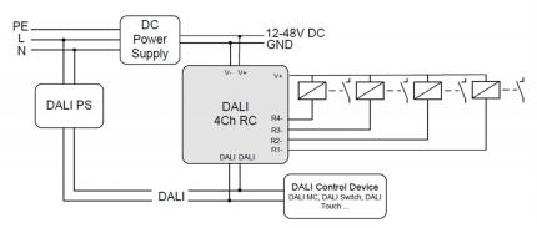

The 4-channel relay controller DALI 4Ch RC allows you to connect switched loads to a DALI system. It is suitable for circuit breakers and and relays with coils-voltages of 12V to 48V DC.
Each channel has its own DALI address (Device DALI Type 7). The maximum input current is 8A ; the maximum output current per channel is 2A.
The configuration is done via the DALI-Cockpit software tool and the DALI USB interface. The Lunatone 4-channel relay controller is mounted by ceiling void mounting.
Downloads & Documents
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|---|
| country of origin: | Bulgaria |

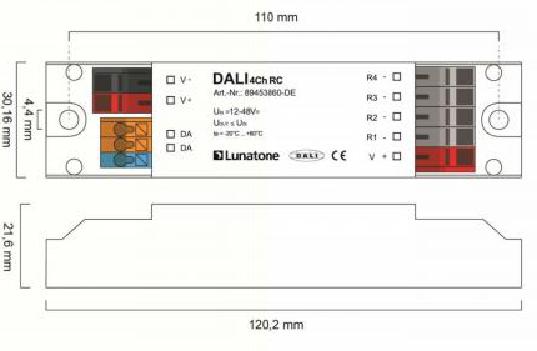

Dimensions & packaging
| EAN | 9010342011252 |
|---|---|
| Length | 120 mm |
| Width | 30 mm |
| Height | 22 mm |
| Weight | 60 g |
Lunatone Industrielle Elektronik GmbH
Paukerwerkstraße 5
1210 Wien
AT
office@lunatone.com
www.lunatone.com
