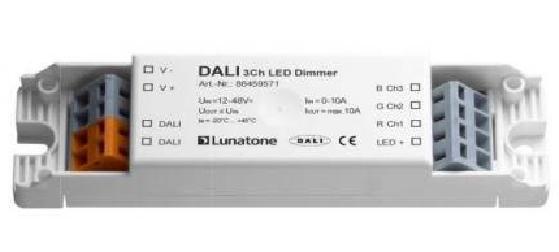

Lunatone Light Management LED-Dimmer DALI 3Ch LED Dimmer CV 10A

Product number: 86459571
Lunatone Industrielle Elektronik GmbH

Lunatone Light Management LED-Dimmer DALI 3Ch LED Dimmer CV 10A

Product number: 86459571

Shipping in 14 day(s)

The Lunatone 3-channel constant voltage DALI LED Dimmer DALI 3Ch CV 10A with max. input currents of 10A is suitable for the control of constant voltage LED modules. The max. input current can be distributed to the channels at will.The dimmer has a DT6 function, which allows individual channel contr ... Read more

€77.73


Content: 1 Stück

Product information "Lunatone Light Management LED-Dimmer DALI 3Ch LED Dimmer CV 10A"

The Lunatone 3-channel constant voltage DALI LED Dimmer DALI 3Ch CV 10A with max. input currents of 10A is suitable for the control of constant voltage LED modules. The max. input current can be distributed to the channels at will.

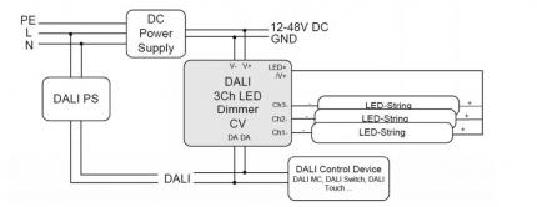

The dimmer has a DT6 function, which allows individual channel control via 3 DALI addresses. With the aid of the Color & Dim function, control is possible via 2 DALI addresses, one for adjusting the light level and one for adjusting the color. In SwitchDIM2 operation, light level and color can be controlled via 2 button inputs without DALI.

The dimming range is between 0.1 and 100%.

The Lunatone DALI LED dimmer has an adjustable PMW frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 12V to 48V DC.

The 3-channel constant voltage LED dimmer has a low standby power consumption and a high efficiency.

The dimmer can be configurated via the PC software DALI-Cockpit and the DALI USB software. It is suitable for ceiling void mounting.

Electrical data
rated voltage: 12-48 V
conformity: CE
lifetime: 100000 h
Casing
ballproof: no
max housing temperature (tc-max): 75 °C
protection type: IP20
mounting: surface mounting
environment temperature from: -20 °C
environment temperature to: 60 °C
Photometric data
application: indoor
color: white
interface: DALI
Logistic data
item category: light management

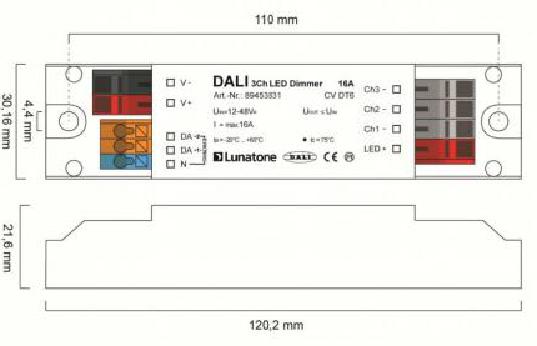

Dimensions & packaging
EAN 9010342011771
Length 120 mm
Width 30 mm
Height 22 mm
