Lunatone Light Management LED-Dimmer DALI 3Ch CC 500mA gem-

Product number: 89453846-500GM
Lunatone Industrielle Elektronik GmbH

Lunatone Light Management LED-Dimmer DALI 3Ch CC 500mA gem-

Product number: 89453846-500GM

Immediately available

DALI DT6 LED dimmer for light regulationThe Lunatone 3-channel constant current DALI DT6 LED dimmer for connection currents of 500 mA enables light regulation via DALI MC / Switch / Touchpanel. It has a dimming range from 0.1% to 100% and a switchable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz). ... Read more

€98.81


Content: 1 Stück

Product information "Lunatone Light Management LED-Dimmer DALI 3Ch CC 500mA gem- "

DALI DT6 LED dimmer for light regulation

The Lunatone 3-channel constant current DALI DT6 LED dimmer for connection currents of 500 mA enables light regulation via DALI MC / Switch / Touchpanel. It has a dimming range from 0.1% to 100% and a switchable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz). It also has a common negative pole. The LED dimmer is suitable for flush mounting.

DT8, Dim2Warm, SwitchDim2

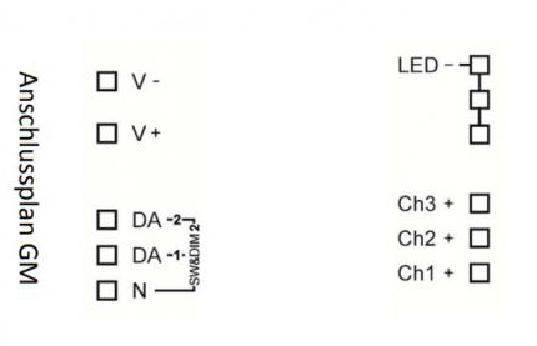

In DT6 mode, the channels are controlled separately via 3 DALI addresses. In Dim2Warm mode there is one DALI address for dimming with simultaneous change of the color temperature. The SwitchDim2 operating mode allows operation via 2 button inputs and thus the control of brightness and color temperature without DALI.

The supply voltage is 12V to 48V DC; the output voltage is up to 45VDC. The Lunatone DALI LED dimmer has a built-in short-circuit protection. You also benefit from low standby losses and high efficiency. The configuration takes place via the PC software DALI-Cockpit and the DALI USB interface. You get the LED dimmer in a user-friendly delivery state.


Electrical data
rated voltage: 12-48 V
lifetime: 100000 h
Casing
ballproof: no
max housing temperature (tc-max): 75 °C
protection type: IP20
mounting: Installation
environment temperature from: -20 °C
environment temperature to: 60 °C
Photometric data
application: indoor
dimming range to: 100 %
color: white
interface: DALI
Logistic data
item category: light management
Dimensions & packaging
EAN 9010342011733

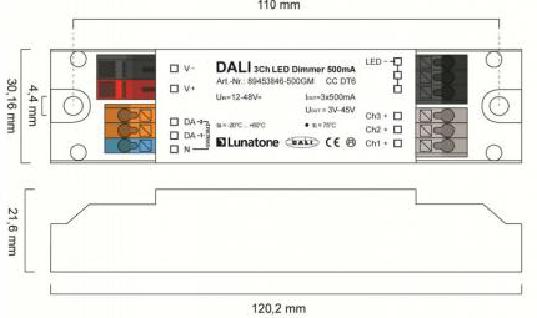

Length 120 mm
Width 30 mm
Height 22 mm
