Lunatone Light Management LED-Dimmer DALI 2Ch LED Dimmer 8A CV - 89453833
Lunatone Light Management LED-Dimmer DALI 2Ch LED Dimmer 8A CV - 89453833
Shipping in 5 day(s)
€74.26
Prices incl. VAT plus shipping costs net €62.40
Product information "Lunatone Light Management LED-Dimmer DALI 2Ch LED Dimmer 8A CV - 89453833"

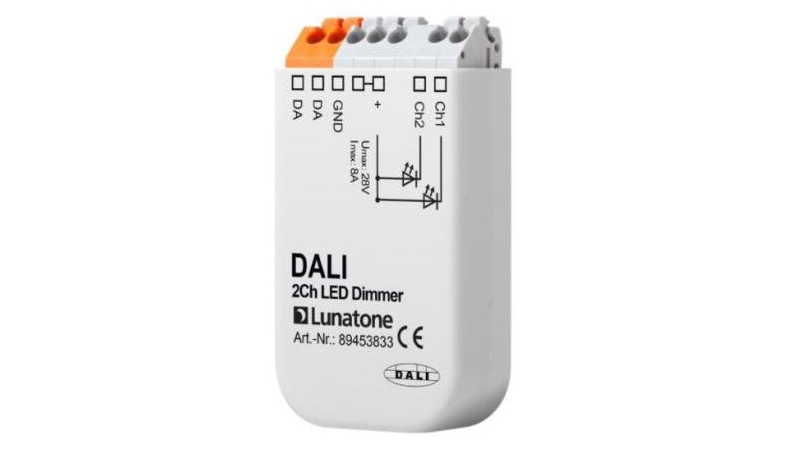

The Lunatone 2-channel constant voltage DALI LED Dimmer DALI 2Ch 8A CV with max. input currents of 8A is suitable for the control of constant voltage LED modules. The max. input current can be distributed to the channels at will.
The dimmer has a DT6 function, which allows individual channel control via 2 DALI addresses. With the aid of the Balance & Dim function, control is possible via 2 DALI addresses, one for adjusting the light level and one for adjusting the channel balance (e.g. colour temperature).
The Dim2Warm operating mode allows simultaneous adjustment of light level and colour temperature) via one DALI-adress. In SwitchDIM2 operation, light level and color can be controlled via 2 button inputs without DALI.
The dimming range is between 0.1 and 100%.
The Lunatone DALI LED dimmer has an adjustable PMW frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 12V to 48V DC.
The 2-channel constant voltage LED dimmer has a low standby power consumption and a high efficiency.
The dimmer can be configurated via the PC software DALI-Cockpit and the DALI USB software. It is suitable for built-in mounting.
Electrical data
| rated voltage: | 12-48 V |
|---|---|
| conformity: | CE |
| lifetime: | 100000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 60 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|---|
| country of origin: | Bulgaria |

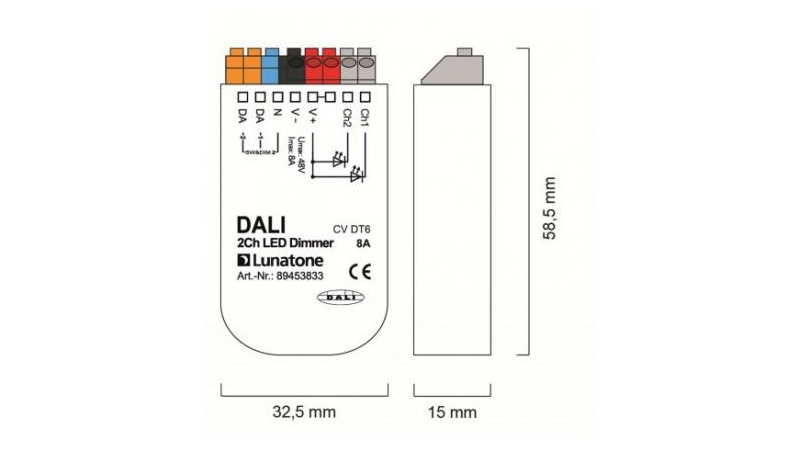

Dimensions & packaging
| EAN | 9010342011672 |
|---|---|
| Length | 59 mm |
| Width | 33 mm |
| Height | 15 mm |
| Weight | 18 g |
