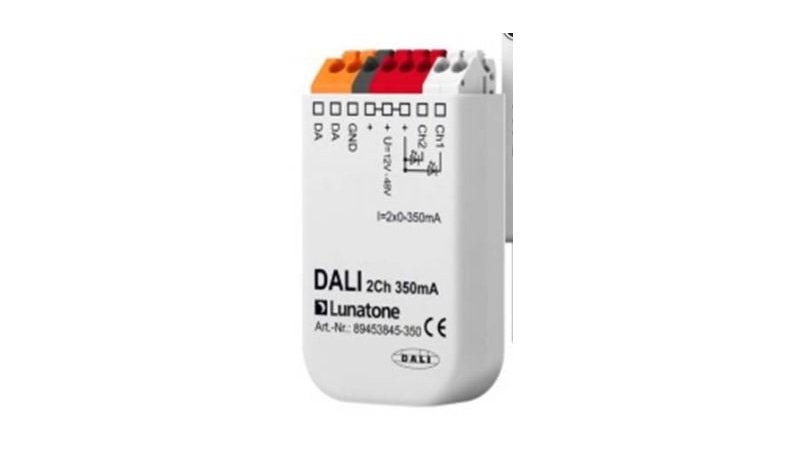

Lunatone Light Management LED-Dimmer DALI 2Ch CC 350mA

Product number: 89453845-350
Lunatone Industrielle Elektronik GmbH

Lunatone Light Management LED-Dimmer DALI 2Ch CC 350mA

Product number: 89453845-350

Immediately available

DALI LED dimmer for light regulationThe Lunatone 2-channel constant current DALI DT6 LED dimmer for connection currents of 350 mA enables light regulation via DALI MC / Switch / Touchpanel. It has a dimming range from 0.1% to 100% and a switchable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz). He a ... Read more

€57.29

Product information "Lunatone Light Management LED-Dimmer DALI 2Ch CC 350mA"

DALI LED dimmer for light regulation

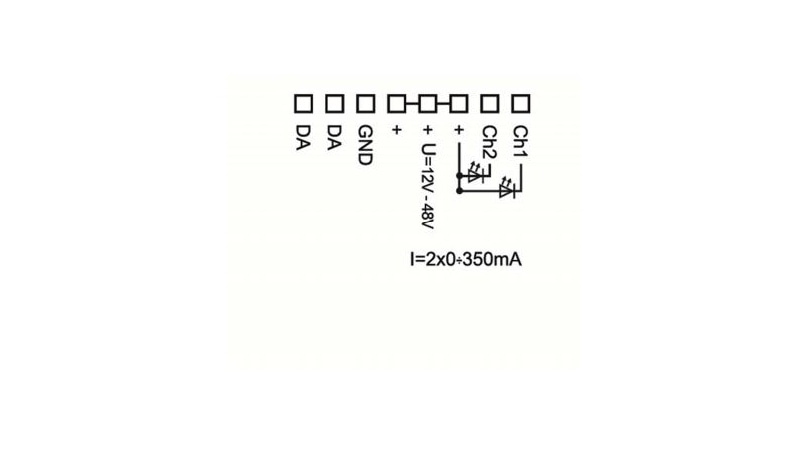

The Lunatone 2-channel constant current DALI DT6 LED dimmer for connection currents of 350 mA enables light regulation via DALI MC / Switch / Touchpanel. It has a dimming range from 0.1% to 100% and a switchable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz). He also has a common positive pole. The LED dimmer is suitable for flush mounting.

DT6, Balance & Dim, Dim2Warm, SwitchDim2

In DT6 mode, the channels are controlled separately via 2 DALI addresses. In Balance & Dim mode, control takes place via 2 DALI addresses, one for adjusting the brightness and one for adjusting the channel distribution (e.g. color temperature). In Dim2Warm mode there is one DALI address for dimming with simultaneous change of the color temperature. The SwitchDim2 operating mode allows operation via 2 button inputs and thus the control of brightness and color temperature without DALI.

The supply voltage is 12V to 48V DC; the output voltage is up to 45VDC. The Lunatone DALI LED dimmer has a built-in short-circuit protection. You also benefit from low standby losses and high efficiency. The configuration takes place via the PC software DALI-Cockpit and the DALI USB interface. You get the LED dimmer in a user-friendly delivery state.



Technical Data

Logistic Data

EAN (pcs): 9010342010347

Customs tariff number: 85423190

Country of Origin: Bulgaria

Electrical Data

Rated Voltage: 12-48V

Conformity: CE

Service life: 100000h

Technical lighting data

Dimming range: 0,1-100%

Dimmable: yes

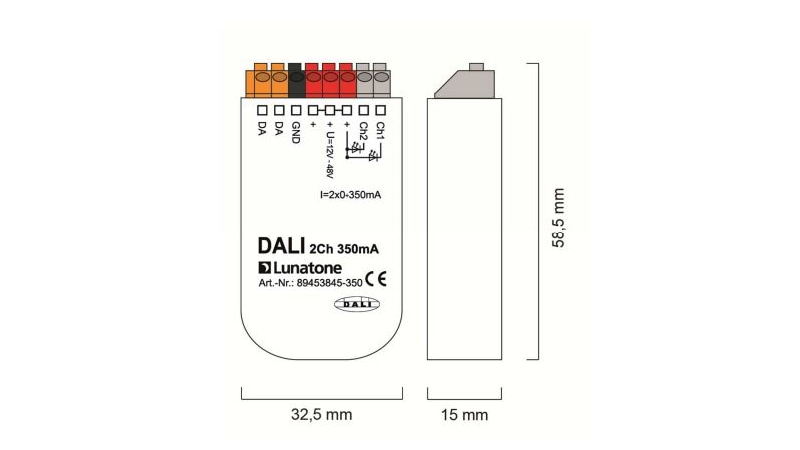

Dimensions

Width [mm]: 33mm

Height [mm]: 15mm

Length [mm]: 59mm

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 75°C

Ambient temperature (ta): -20...+60°C

Item number: 89453845-350
