Lunatone Light Management LED-Dimmer DALI 1Ch CC 1000mA

Product number: 89453844-1000DE
Lunatone Industrielle Elektronik GmbH

Lunatone Light Management LED-Dimmer DALI 1Ch CC 1000mA

Product number: 89453844-1000DE

Shipping in 14 day(s)

Constant current DALI DT6 LED dimmerWith the 1-channel DALI DT6 LED dimmer from Lunatone, constant current LED modules can be triggered up to 1000 mA which allows you to control the light via DALI MC / Switch / Touchpanel. The dimming range is between 0.1% and 100%. The dimmer has a switchable PWM ... Read more

€75.57


Content: 1 Stück

Product information "Lunatone Light Management LED-Dimmer DALI 1Ch CC 1000mA"

Constant current DALI DT6 LED dimmer

With the 1-channel DALI DT6 LED dimmer from Lunatone, constant current LED modules can be triggered up to 1000 mA which allows you to control the light via DALI MC / Switch / Touchpanel. The dimming range is between 0.1% and 100%. The dimmer has a switchable PWM frequency (122Hz / 244Hz / 488Hz / 976Hz). The supply voltage is 12V-48V DC; the output voltage is up to 45VDC.

Integrated SwitchDim2 function

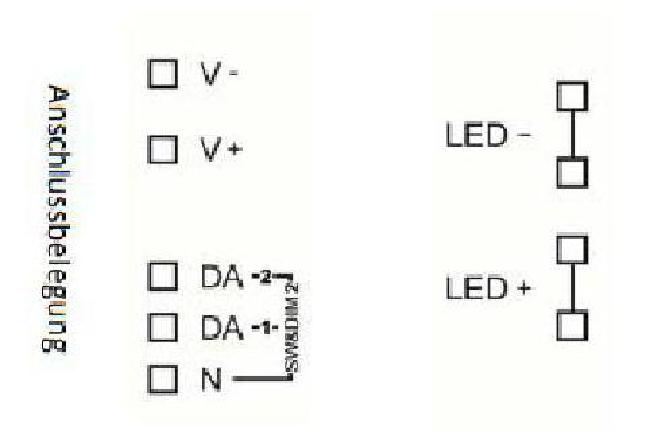

In SwitchDim2 mode, operation is carried out via 2 push-button inputs, allowing control of brightness and switching of scenes without DALI. As of FW 4.0, the corridor function can also be used for direct control with a motion detector.

The Lunatone DALI LED dimmer has a built-in short-circuit protection. You benefit from low standby losses and high efficiency. The configuration is made via the PC software DALICockpit or the DALI USB Interface. You get the dimmer in a user-friendly delivery state. It is suitable for built-in mounting.

Electrical data
rated voltage: 12-48 V
conformity: CE
lifetime: 100000 h
Casing
ballproof: no
form type: linear
max housing temperature (tc-max): 75 °C
protection type: IP20
mounting: Installation
environment temperature from: -20 °C
environment temperature to: 60 °C
Photometric data
application: indoor
dimming range to: 100 %
color: white
interface: DALI
Logistic data
item category: light management

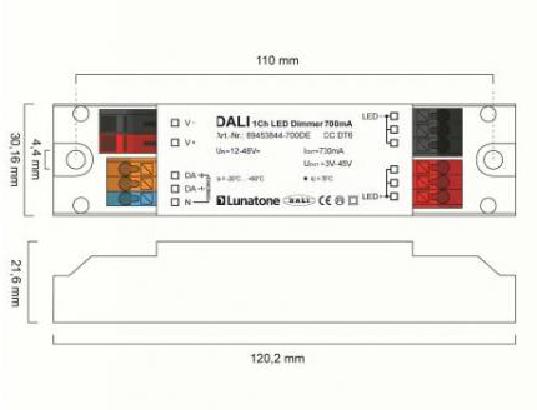

Dimensions & packaging
EAN 9010342011481
Length 120 mm
Width 30 mm
Height 22 mm
Weight 61 g
