Lunatone Light Management DALI Touchpanel - 24035465
Product information "Lunatone Light Management DALI Touchpanel - 24035465"

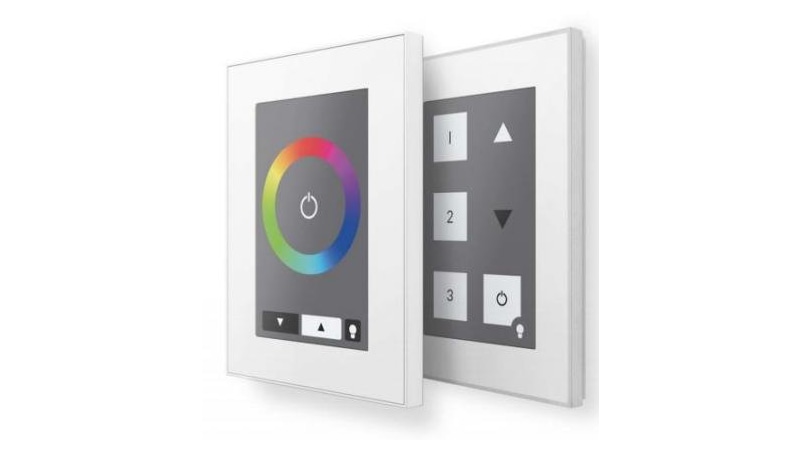

The Lighting Management DALI Touchpanel from Lunatone is a multifunctional DALI control module with flexible layout. It can be installed easily on a conduit box.

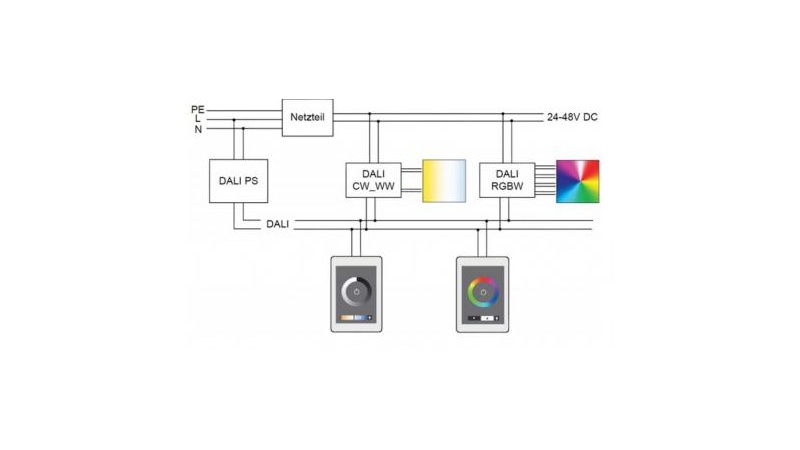

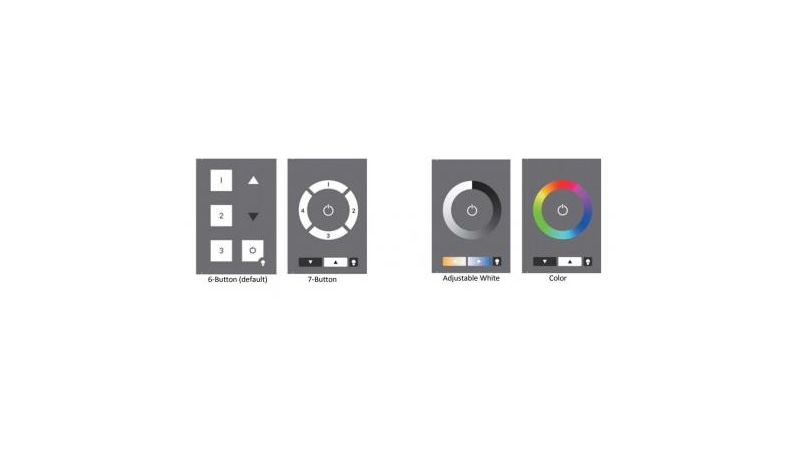

Four standard layouts for colour and colour temperature control as well as for switching and dimming are already preset. Other layouts can be configurated individually. Configuration is possible via the DALI-Cockpit software or the DALI-USB interface.

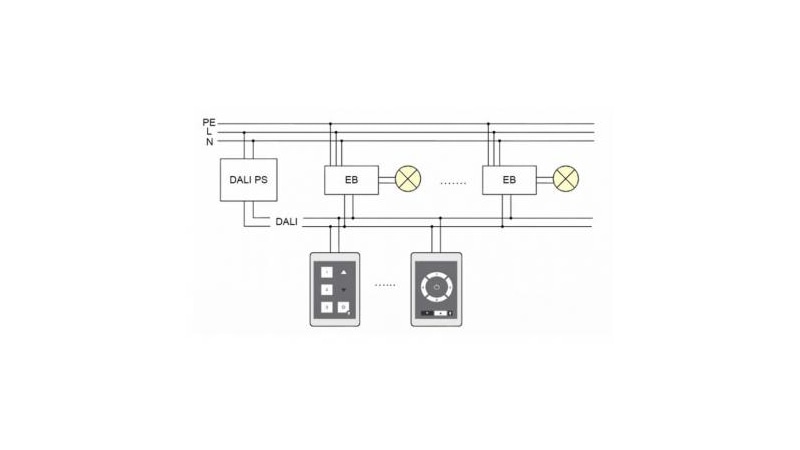

The DALI touch panel is multimaster capable: multiple touch panels can be installed on the same DALI-line. The module supplied directly via the DALI signal line.
The housing of the control module is made of ABS plastic and is equipped with the IP20 protection.
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| rated voltage: | DALI bus V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| protection type: | IP20 |
| mounting: | flush mounting |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|

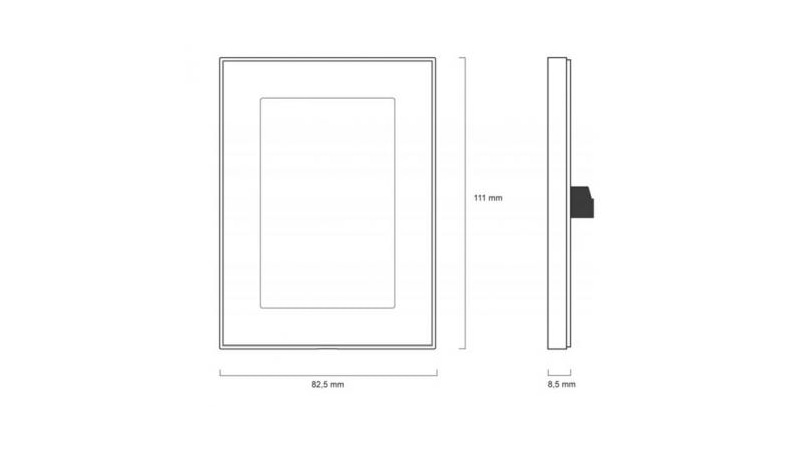

Dimensions & packaging
| EAN | 9010342010279 |
|---|---|
| Length | 111 mm |
| Width | 83 mm |
| Height | 9 mm |
| Weight | 96 g |
