Lunatone Light Management DALI to 0-10V Interface

Product number: 86458508-AN
Lunatone Industrielle Elektronik GmbH

Lunatone Light Management DALI to 0-10V Interface

Product number: 86458508-AN

Shipping in 14 day(s)

The light management DALI to 0-10V interface from Lunatone is a compact interface module for converting a digital DALI signal into a 0-10V analog signal for electronically isolated control inputs. With its help, luminaires with 0-10 V control input can be integrated into a DALI system. It is s ... Read more

€36.89


Content: 1 Stück

Product information "Lunatone Light Management DALI to 0-10V Interface"

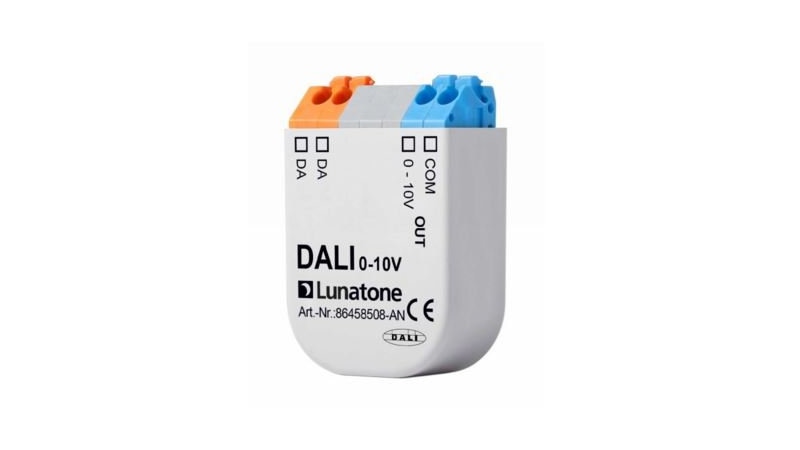

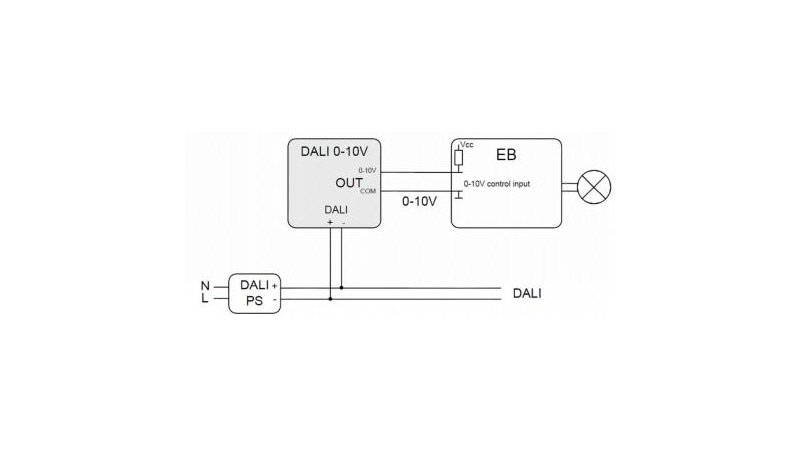

The light management DALI to 0-10V interface from Lunatone is a compact interface module for converting a digital DALI signal into a 0-10V analog signal for electronically isolated control inputs. With its help, luminaires with 0-10 V control input can be integrated into a DALI system. It is suitable for Installation.

The interface transforms the DALI 8-bit Arc power level into an analogue output signal from 0 to 10V. A linear or logarithmic dimming curve (DT5) can be selected. On delivery, the D5 default settings are selected: logarithmic dimming curve and 1-10 V output voltage.

The maximun output current is 1 mA (current sink). The module is supplied directly by the DALI line so that no additional supply is required.

The light management DALI to 0-10V interface has its own DALI address and can be assigned to groups and scenes. In addition, an Auto Calibration Mode is integrated, which can be deactivated or triggered manually via the DALI Cockpit.

The housing is equipped with IP20 protection.

Electrical data
number of channels: 1
rated voltage: DALI bus V
conformity: CE
Casing
protection type: IP20
mounting: flush mounting
environment temperature from: -10 °C
environment temperature to: 75 °C
Photometric data
color: white
interface: DALI
Logistic data
item category: light management

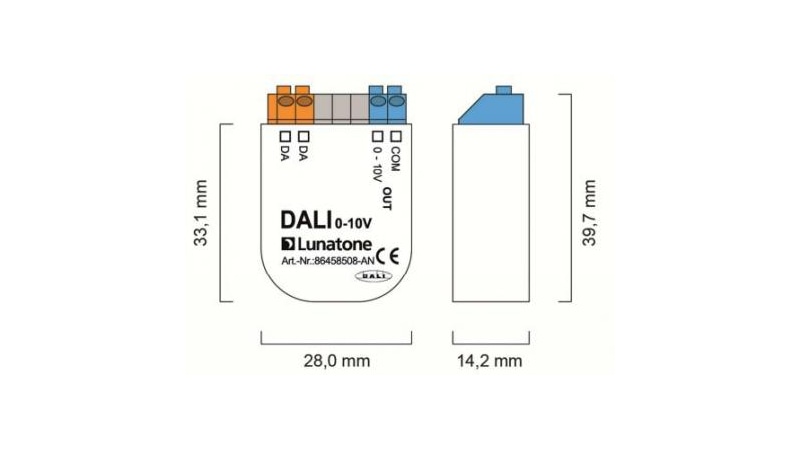

Dimensions & packaging
EAN 9010342010699
Length 40 mm
Width 28 mm
Height 14 mm
