Lunatone Light Management DALI 1Ch LED Booster Dimmer 16A CV

Product number: 86459838
Lunatone Industrielle Elektronik GmbH

Lunatone Light Management DALI 1Ch LED Booster Dimmer 16A CV

Product number: 86459838

Shipping in 14 day(s)

The 1-channel dimmer DALI 1Ch LED Booster Dimmer 16A CV by Lunatone enables the control of constant voltage LED modules. Possible control signals are PWM (50Hz-1kHz), 0-10V voltage signals (active and passive) and 100 kOhm potentiometers.At the analogue input a 100kOhm potentiometer or a 0-10V cont ... Read more

€52.69


Content: 1 Stück

Product information "Lunatone Light Management DALI 1Ch LED Booster Dimmer 16A CV"

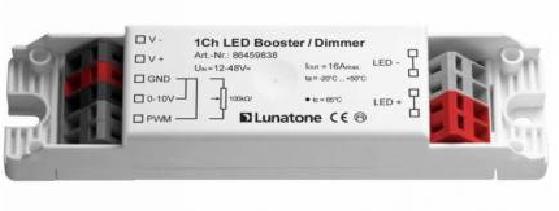

The 1-channel dimmer DALI 1Ch LED Booster Dimmer 16A CV by Lunatone enables the control of constant voltage LED modules. Possible control signals are PWM (50Hz-1kHz), 0-10V voltage signals (active and passive) and 100 kOhm potentiometers.

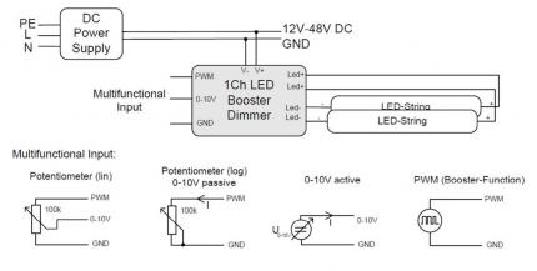

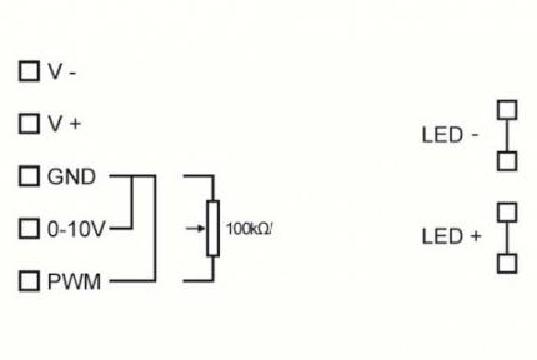

At the analogue input a 100kOhm potentiometer or a 0-10V control device can be connected. The control signal is converted into a corresponding PWM output signal. The PWM control signal is suitable for the use of LED dimmers with common plus connector.

The Lunatone Booster Dimmer has a logarithmic dimming curve. The supply voltage is 12-48V DC. The maximum connection current is 16A.

The 1-channel dimmer is suitable for remote ceiling mounting.

Electrical data
rated voltage: 12-48 V
conformity: CE
lifetime: 50000 h
Casing
ballproof: no
max housing temperature (tc-max): 65 °C
protection type: IP20
mounting: Installation
environment temperature from: -20 °C
environment temperature to: 50 °C
Photometric data
application: indoor
color: white
interface: DALI
Logistic data
item category: light management
Dimensions & packaging
EAN 9010342010774

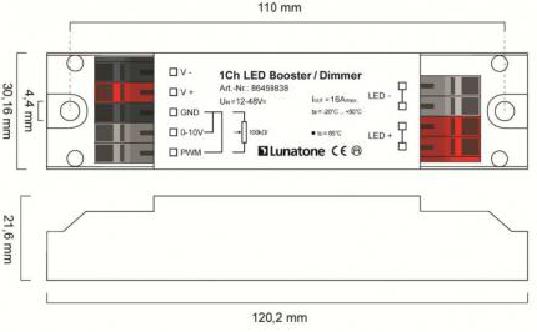

Length 120 mm
Width 30 mm
Height 22 mm
