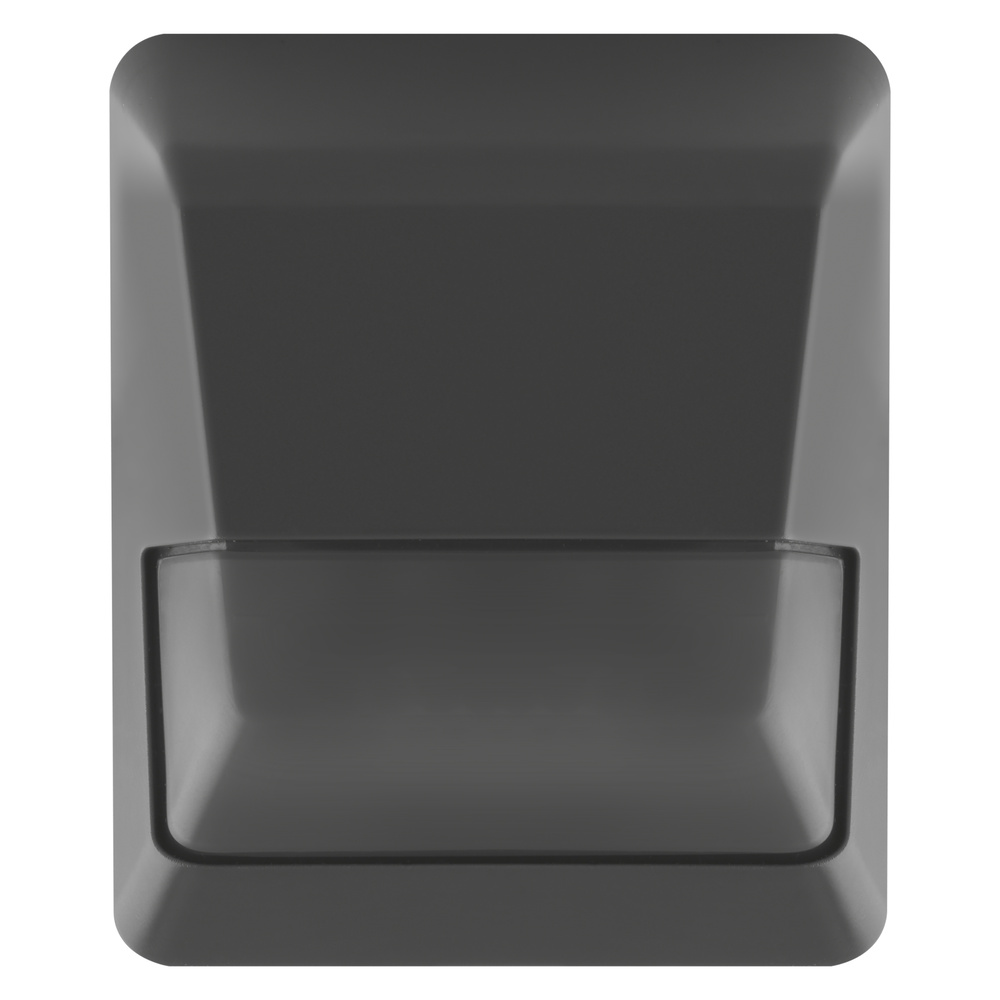

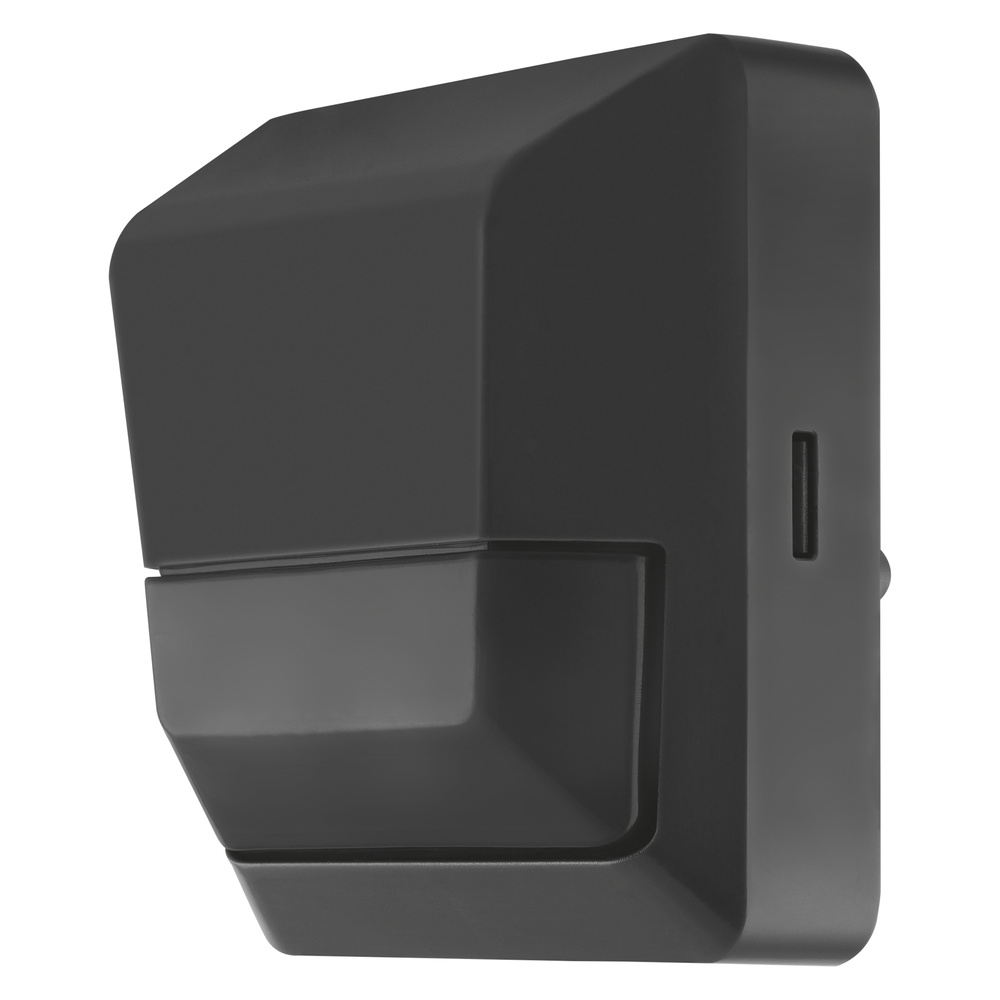

Ledvance sensor SENSOR WALL 180DEG IP55 DG - 4058075244795
Product information "Ledvance sensor SENSOR WALL 180DEG IP55 DG - 4058075244795"
Stand-alone movement and light sensors for wall assembly with 180 ° movement recording. Product properties: 3 setting options selectable (light 6h permanently on, switch on when moving or dusk). Zero through circuit for optimized LED lighting operation. Protection class: IP55. Protection class: II. Product advantages: precise motion recording thanks to modern lens look. Areas of application: outdoor areas. Corridore, entrance areas. Garages. Basement, cellar. Arcades. 180 ° collection area enables the sensor to be installed right next to the doors.
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | rectangular |
| protection type: | IP55 |
| material: | polycarbonate |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 40 °C |
Photometric data
| sensor: | yes |
|---|---|
| dimmable: | no |
| color: | grey |
| sensor type: | passive infrared |
| solar panel: | no |
Logistic data
| item category: | sensors |
|---|---|
| country of origin: | China |
Dimensions & packaging
| EAN | 4058075244795 |
|---|---|
| Length | 76 mm |
| Width | 50 mm |
| Height | 91 mm |
| Weight | 136 g |
