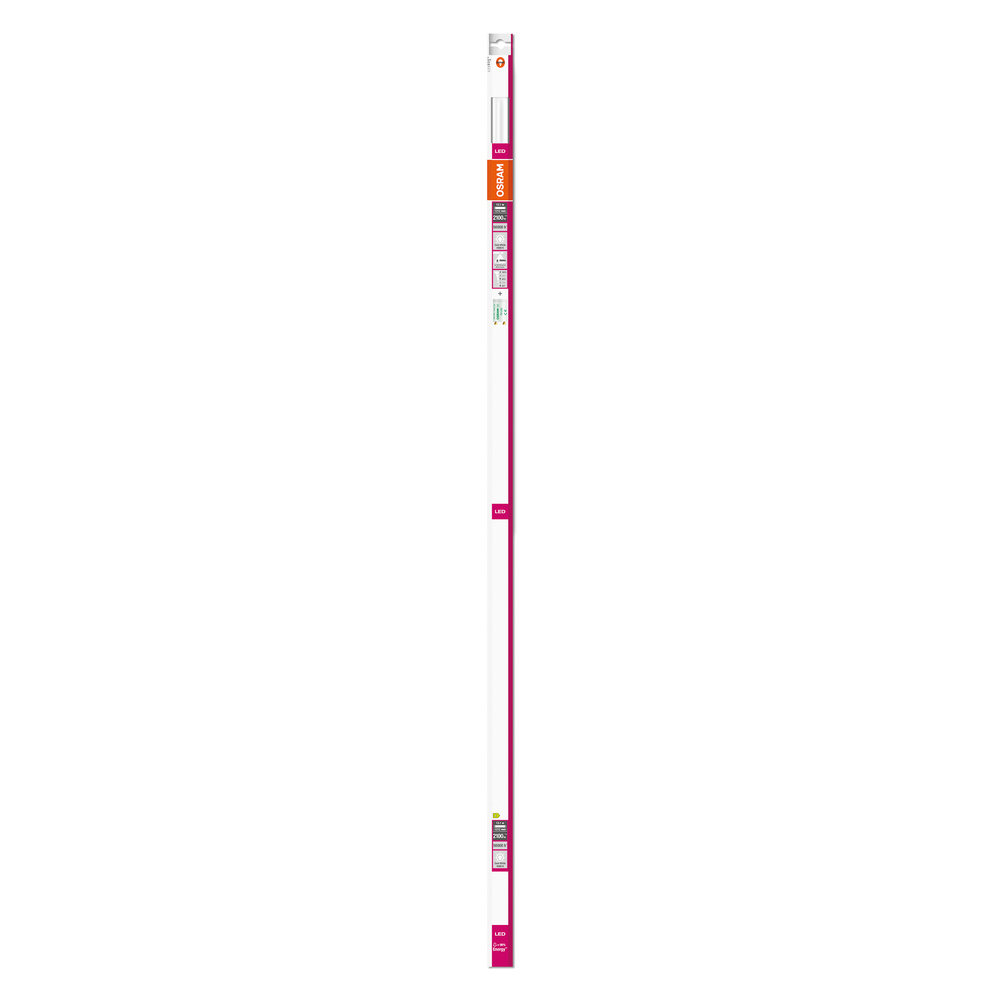

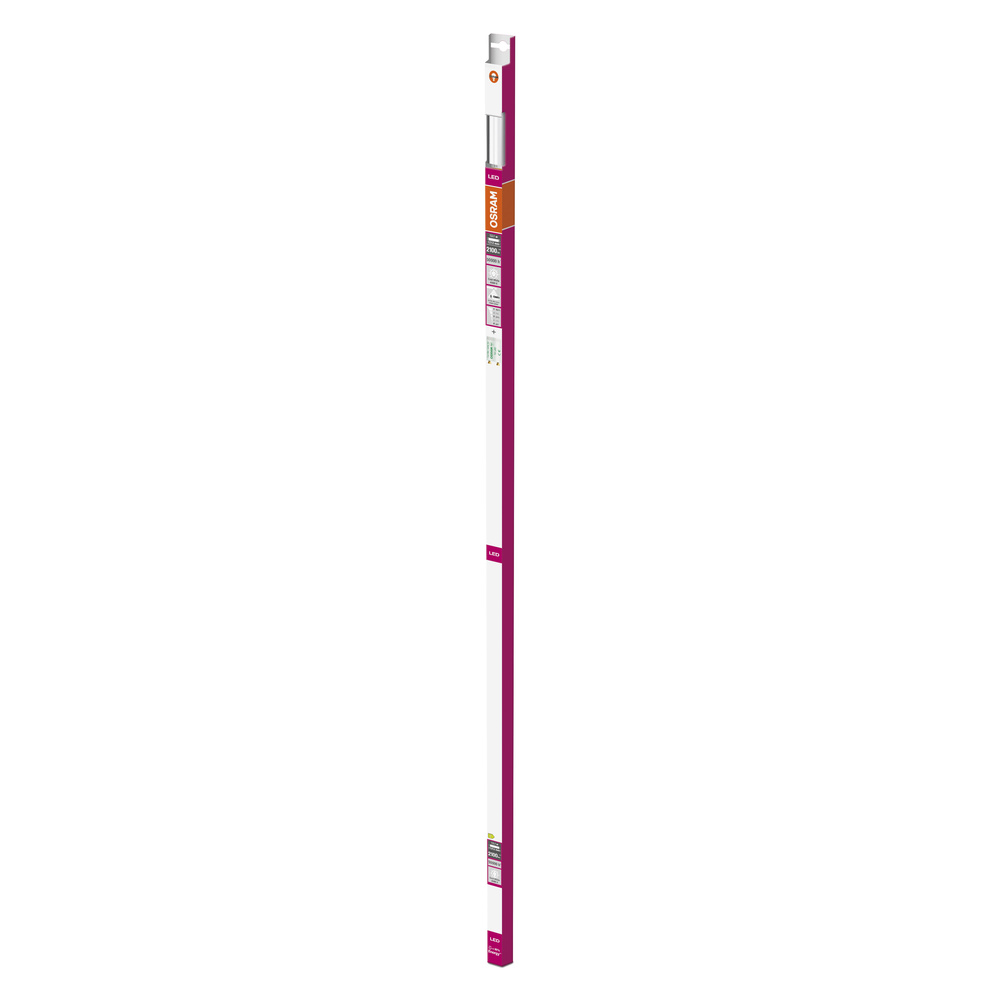

Ledvance LED tube LED TUBE T8 EM MOTION SENSOR P 1200 mm 13.1W 840 – 4099854044960 – replacement for 36 W - 4099854044960

LEDVANCE

Ledvance LED tube LED TUBE T8 EM MOTION SENSOR P 1200 mm 13.1W 840 – 4099854044960 – replacement for 36 W - 4099854044960

Product number: 4099854044960

Shipping in 3 day(s)

c
a g
Datasheet

€27.80


Content: 1 Stück

Prices incl. VAT plus shipping costs net €23.36

Product information "Ledvance LED tube LED TUBE T8 EM MOTION SENSOR P 1200 mm 13.1W 840 – 4099854044960 – replacement for 36 W - 4099854044960"

LED tubes with integrated microwave sensor for electromagnetic ballast (KVG/VVG), splinter protection. Product properties: LED replacement for conventional fluorescent lamps with G13 base in KVG or mains voltage. Integrated motion detector with microwave technology. Automatic dimming to a 20 % luminous flux after 5 minutes without motion detection. Automatic light shutdown 7 minutes after the last movement recording. Microwave sensor with 5.8 GHz. Movement entry of up to 5 m. Product advantages: thanks to the microwave technology suitable for closed lights. No slopes thanks to glass tube. Splitter protection thanks to special PET coating. Support in implementing the HACCP concepts from production to goods presentation. Very high switching resistance. Energy saving up to 90 % compared to conventional fluorescent lamp. Simple, faster and safer exchange of a fluorescent lamp without the KVG rewirting. Also suitable for operation at low temperatures. Areas of application: general lighting in ambient temperatures of -20 ...+50 ° C. Corridore, stairs and parking garages. Warehouses. Slide and corridors. Storage rooms. Logistics areas, traffic buildings and corridors. Parking spaces. Technical equipment: Suitable for operation with low -loss and conventional ballast



ECG compatibility

Electronic transformers were all first developed for conventional halogen, fluorescent or compact fluorescent lamps and not for lamps with integrated electronic like LED lamps. Therefore, LEDVANCE is providing a list of electronic control gears (ECG) that have been tested and proven to be compatible with our range of LED lamps

Follow this link to the ECG compatibility list

Electrical data
operating frequency: 50/60 Hz
energy efficiency index: C
rated voltage: 220-240 V
lifetime: 50000 h
switching cycles: 200000
Casing
form type: linear
protection type: IP20
material: glass
Photometric data
dimmable: no
color temperature [Kelvin]: 4000
color rendering index [CRI]: >80
lamp type: LED
socket: G13
lum flux: 2100 lm
Logistic data
country of origin: China
Dimensions & packaging
EAN 4099854044960
Length 1212 mm
Width 26.7 mm
Height 26.7 mm
Weight 200 g
