Ledvance LED pendant luminaire PANEL DIRECT/INDIRECT 1200 UGR < 19 DALI 36 W 4000 K UGR19 DALI - 4058075504042
LEDVANCE
Ledvance LED pendant luminaire PANEL DIRECT/INDIRECT 1200 UGR < 19 DALI 36 W 4000 K UGR19 DALI - 4058075504042
Product number:
4058075504042
Shipping in 7 day(s)
€278.83
Content:
1 Stück
Prices incl. VAT plus shipping costs net €234.31
Product information "Ledvance LED pendant luminaire PANEL DIRECT/INDIRECT 1200 UGR < 19 DALI 36 W 4000 K UGR19 DALI - 4058075504042"
Pendant lights with edge feeding for direct and indirect lighting, heavy threatening, 1200 mm and Dali-2 IoT technology. Product properties: Io-capable lamp with DALI-2 technology. Rectangular (1200 mm x 300 mm) stand-alone glow with direct (70 %) and indirect (30 %) light emission. Driver integrated in the remote driver box. UGR ≤ 19 according to EN12464-1. High light output: up to 110 lm/w. Lifespan (L70/B50): 80,000 h (at 25 ° C). Follow the uniform design language of Ledvance (Scale Design). Very narrow aluminum housing. Product advantages: Suitable lamp for Vivares and other Dali-2 Licht Management systems. Pendant lights with edge lighting for direct (70%) and indirect lighting (30%). Attractive and functional design for office applications. Good glow (UGR ≤ 19). Very homogeneous light. Low maintenance and low operating costs. External driver for expanded flexibility. Special lighting design for lighting with low glare. Simple and quick installation. Flicker light thanks to special electronic ballast. 5 years of guarantee. Areas of application: Efficient replacement for traditional T8 and T5 light strips. Offices. Meeting rooms. Conference rooms. Reception areas, entrance areas. Technical equipment: Department contained
Downloads & Documents
Electrical data
| operating frequency: | 0/50/60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| lifetime: | 80000 h |
| system power: | 36 |
| switching cycles: | 100000 |
Casing
| protection type: | IP20 |
|---|---|
| material: | aluminum |
| impact resist: | IK03 |
| protection class: | I |
| environment temperature from: | -20 °C |
| environment temperature to: | 45 °C |

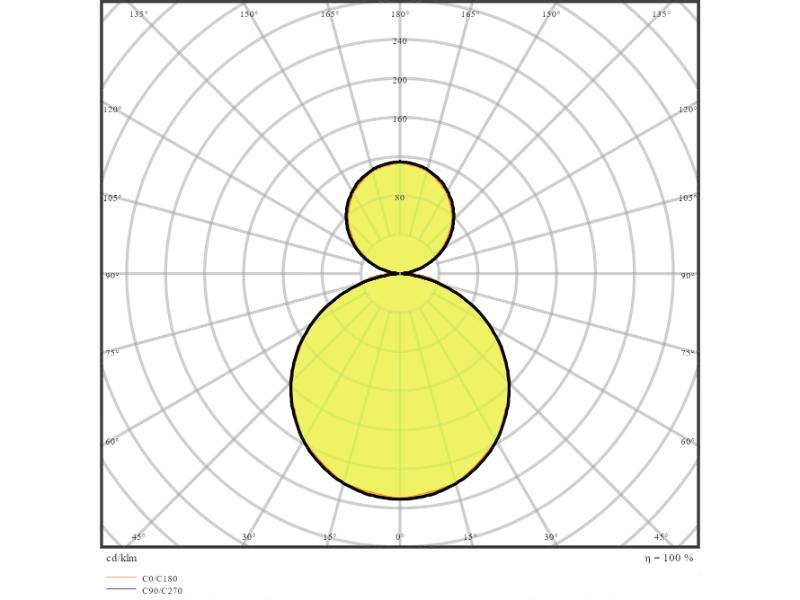

Photometric data
| radiation angle: | 110 ° |
|---|---|
| dimmable: | yes |
| color code: | 840 |
| color: | white |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 110 lm/W |
| interface: | DALI |
| start time: | 0,5 s |
| lum flux: | 4000 lm |
Logistic data
| item category: | LED suspended luminaire |
|---|---|
| country of origin: | China |
Dimensions & packaging
| EAN | 4058075504042 |
|---|---|
| Length | 1200 mm |
| Width | 300 mm |
| Height | 16 mm |
| Weight | 3500 g |
