LEDVANCE

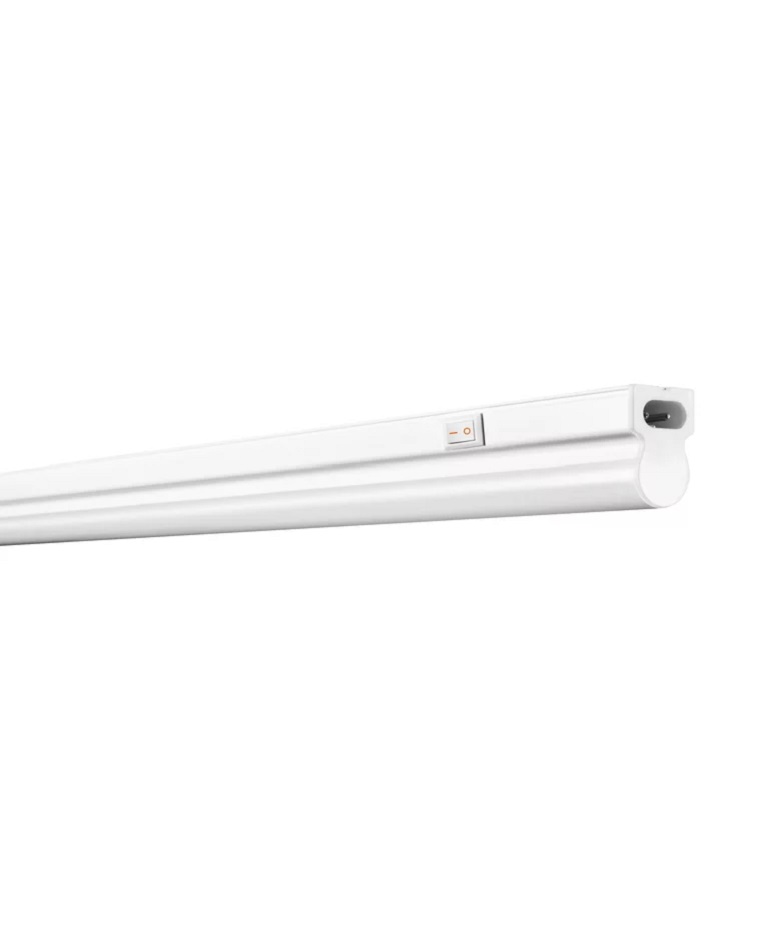

Ledvance LED luminaire with switch for single or strip applications LINEAR COMPACT SWITCH 1500 17 W 3000 K – 4058075683341
Product number:
4058075683341
Shipping in 7 day(s)
€21.54
Content:
1 Stück
Prices incl. VAT plus shipping costs net €18.10
Product information "Ledvance LED luminaire with switch for single or strip applications LINEAR COMPACT SWITCH 1500 17 W 3000 K – 4058075683341"
Compact lamp with switch for single or luminaire band applications. Product properties: built -in switch. Up to 10 luminaires can be connected. Transparent end caps. Versions with a luminous flux 400 ... 1900 LM available. 5 different lengths available. High luminaire output: up to 112 lm/w. Low wire test according to IEC 60695-2-12: 850 ° C. Product advantages: compact dimensions. Need little space thanks to the compact dimensions. Seamless connection option with up to 10 luminaires per luminaire tape installation. Practical switches installed directly on the lamp. Flicker luminaire thanks to special electronic ballast. Flexible installation in 2 different angles with 2 fastening options. Flexible application through a wide range of available lengths from 300 to 1500 mm. Angle connection with the enclosed cable possible. Areas of application: Direct replacement for luminaires with fluorescent lamps. Interior applications. Corridore, entrance areas, stairwells, living room, basement. Accent luminaireing. Ãfental space. Voute luminaireing. Shelves, furniture integration or substructure. Seamless luminaire strips. Technical equipment: equipped with a current connector, cable connector and line connectors for the connection of further luminaires. Contain assembly material for wall and ceiling fastening
Downloads & Documents
Electrical data
| operating frequency: | 50/60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | 220-240 V |
| system power: | 17 |
| switching cycles: | 100000 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP20 |
| material: | polycarbonate |
| mounting: | surface mounting |
| impact resist: | IK03 |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 40 °C |
Photometric data
| radiation angle: | 140 ° |
|---|---|
| dimmable: | no |
| color code: | 830 |
| color: | white |
| color temperature [Kelvin]: | 3000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 106 lm/W |
| inclusive lamp: | yes |
| solar panel: | no |
| lum flux: | 1800 lm |
Dimensions & packaging
| EAN | 4058075683341 |
|---|---|
| Length | 1473 mm |
| Width | 28 mm |
| Height | 36 mm |
| Weight | 520 g |
