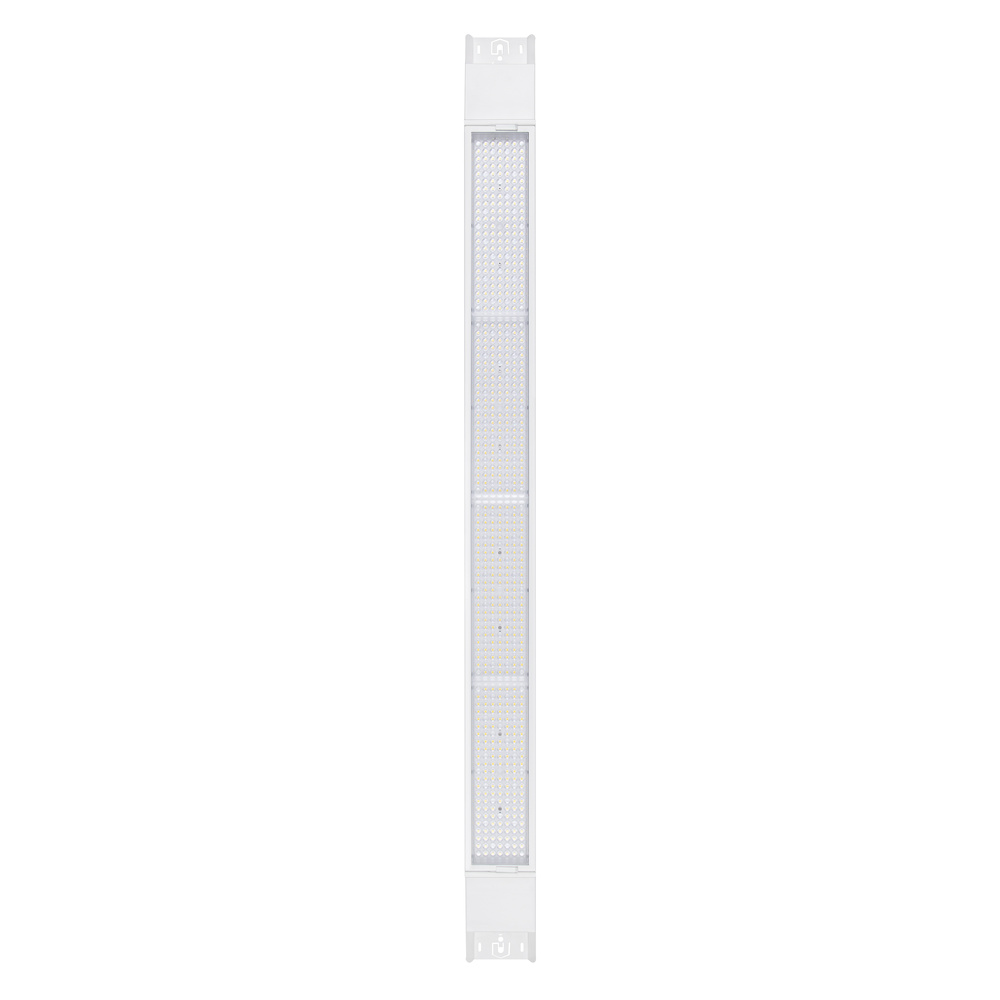

Ledvance LED low bay luminaire LOW BAY FLEX 1500 DALI P 105W 840 VW – 4058075676343
LEDVANCE
Ledvance LED low bay luminaire LOW BAY FLEX 1500 DALI P 105W 840 VW – 4058075676343
Product number:
4058075676343
Shipping in 7 day(s)
€222.42
Content:
1 Stück
Prices incl. VAT plus shipping costs net €186.91
Product information "Ledvance LED low bay luminaire LOW BAY FLEX 1500 DALI P 105W 840 VW – 4058075676343"
Low-Bay luminaire up with an attractive linear design, up to 160 lm/w. Product properties: Different luminaire flows and angles for assembly heights from ~ 4 m to ~ 10 m in 4000 K. Wiring cable already installed. Lifespan (L80/B10): up to 100,000 h. High color consistency: ≤ 3 sdcm. Product advantages: Economically thanks to the high luminaire luminaire output up to 160 lm/w. Easy and quick installation thanks to a connection box with 5- and 7-pin, toolless connection clamp. Modern and robust design. 5 years of guarantee. Areas of application: replacement for luminaires with mercury steam or halogen metal steam lamps. Warehouses. Logistics halls. Industrial and warehouse areas. Discounter, supermarkets. Technical equipment: Department available as separate accessories
Downloads & Documents
Electrical data
| operating frequency: | 50/60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | 220-240 V |
| system power: | 105 |
| switching cycles: | 50000 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP23 |
| material: | steel |
| mounting: | suspended, surface mounting |
| impact resist: | IK08 |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| radiation angle: | 120 ° |
|---|---|
| dimmable: | yes |
| color code: | 840 |
| color: | white |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 160 lm/W |
| inclusive lamp: | yes |
| solar panel: | no |
| lum flux: | 16800 lm |
Dimensions & packaging
| EAN | 4058075676343 |
|---|---|
| Length | 1527 mm |
| Width | 115 mm |
| Height | 65 mm |
| Weight | 4200 g |
