Ledvance LED high bay luminaire high bay luminaire HIGH BAY GEN 4 190W 840 70DEG IP65 – 4058075692824
LEDVANCE
Ledvance LED high bay luminaire high bay luminaire HIGH BAY GEN 4 190W 840 70DEG IP65 – 4058075692824
Product number:
4058075692824
Shipping in 3 day(s)
€294.31
Content:
1 Stück
Prices incl. VAT plus shipping costs net €247.32
Product information "Ledvance LED high bay luminaire high bay luminaire HIGH BAY GEN 4 190W 840 70DEG IP65 – 4058075692824"
Hall luminaires up to 150 lm/w and attractive UGR values. Product properties: Different luminaire flows and angles for assembly heights from ~ 6 m to 14 m in 4000 K or 6500 K. Product advantages: Improved UGR compared to earlier generations, up to UGR ≤ 22 in combination with reflector. High luminaire output. Up to 64 % energy savings compared to conventional indoor mirror luminaires. 5 years of guarantee. Weight and size optimization through compact design. Areas of application: replacement for indoor mirror luminaires with mercury steam or halogen metal steam lamps. Warehouses. Logistics halls. Industry. High ceilings (e.g. in shopping centers, airports, business buildings, lobbies). Technical equipment: Montagering included. Montal brackets, reflectors and refractors available as separate accessories
Downloads & Documents
Electrical data
| operating frequency: | 50/60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
| system power: | 190 |
| switching cycles: | 200000 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| protection type: | IP65 |
| material: | aluminum |
| mounting: | suspended, surface mounting |
| impact resist: | IK08 |
| protection class: | I |
| environment temperature from: | -30 °C |
| environment temperature to: | 50 °C |
Photometric data
| radiation angle: | 70 ° |
|---|---|
| dimmable: | no |
| color code: | 840 |
| color: | black |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 140 lm/W |
| inclusive lamp: | yes |
| solar panel: | no |
| lum flux: | 27000 lm |

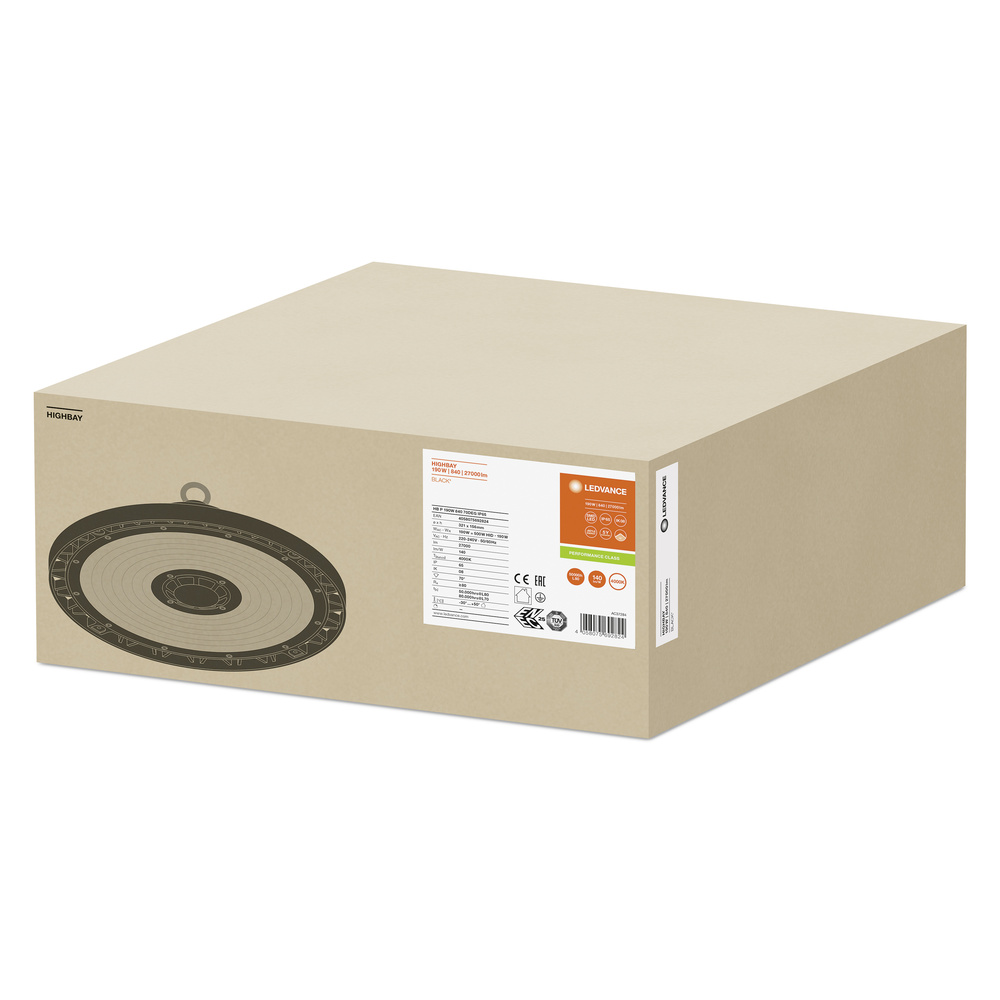

Dimensions & packaging
| EAN | 4058075692824 |
|---|---|
| Length | 321 mm |
| Width | 321 mm |
| Height | 156 mm |
| Weight | 2830 g |
