Ledvance LED high bay luminaire HIGH BAY GEN 4 147W 840 70DEG IP65 - 4058075692800
LEDVANCE
Ledvance LED high bay luminaire HIGH BAY GEN 4 147W 840 70DEG IP65 - 4058075692800
Product number:
4058075692800
Shipping in 7 day(s)
€205.50
Content:
1 Stück
Prices incl. VAT plus shipping costs net €172.69
Product information "Ledvance LED high bay luminaire HIGH BAY GEN 4 147W 840 70DEG IP65 - 4058075692800"
Hall lights up to 150 lm/w and attractive UGR values. Product properties: Different light flows and angles for assembly heights from ~ 6 m to 14 m in 4000 K or 6500 K. Product advantages: improved UGR compared to earlier generations, up to UGR ≤ 22 in combination with reflector. High light output. Up to 64 % energy savings compared to conventional indoor mirror lights. 5 years of guarantee. Weight and size optimization through compact design. Areas of application: replacement for indoor mirror lights with mercury steam or halogen metal steam lamps. Warehouses. Logistics halls. Industry. High ceilings (e.g. in shopping centers, airports, business buildings, lobbies). Technical equipment: Montagering included. Montal brackets, reflectors and refractors available as separate accessories
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| energy efficiency index: | D |
| rated voltage: | 220-240 V |
| lifetime: | 80000 h |
| system power: | 147 |
| switching cycles: | 200000 |
Casing
| protection type: | IP65 |
|---|---|
| material: | aluminum |
| impact resist: | IK08 |
| protection class: | I |
| environment temperature from: | -30 °C |
| environment temperature to: | 50 °C |

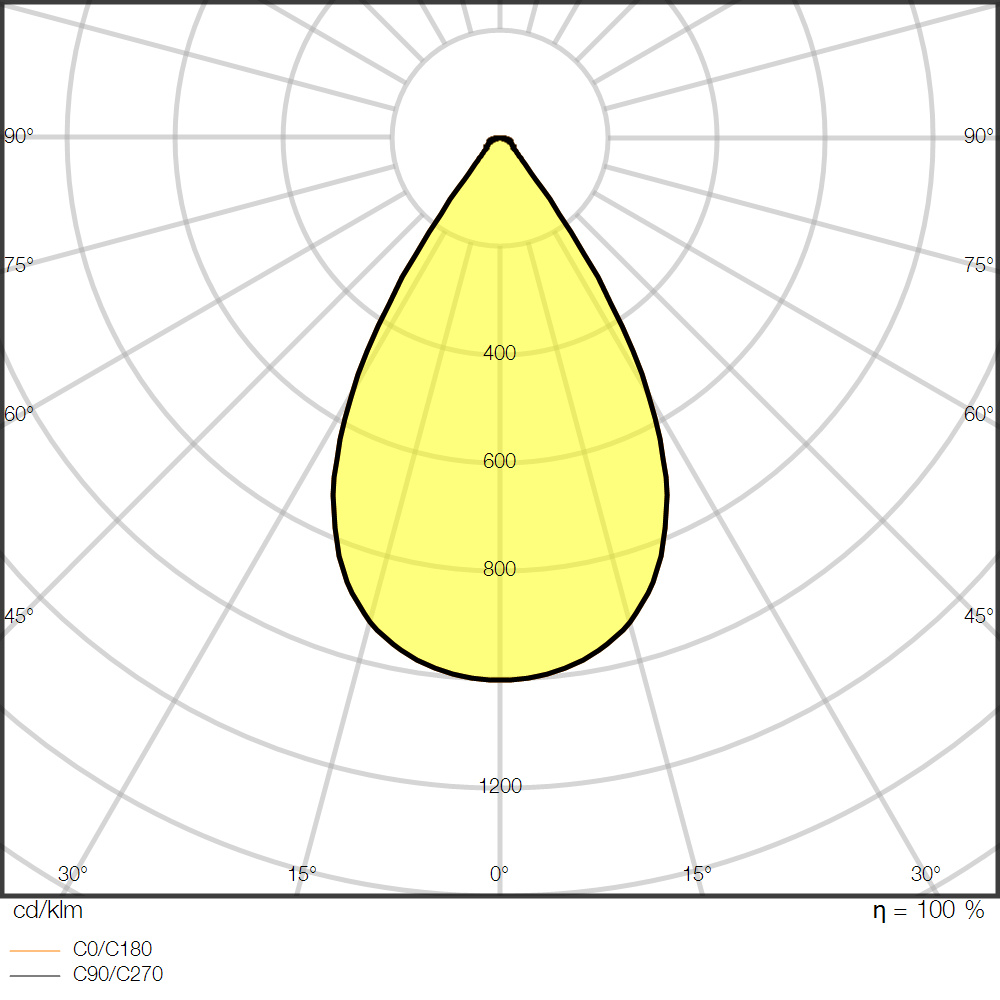

Photometric data
| radiation angle: | 70 ° |
|---|---|
| dimmable: | no |
| color: | black |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 150 lm/W |
| start time: | 0,5 s |
| lum flux: | 22000 lm |
Logistic data
| item category: | LED high bay luminaires |
|---|---|
| country of origin: | China |

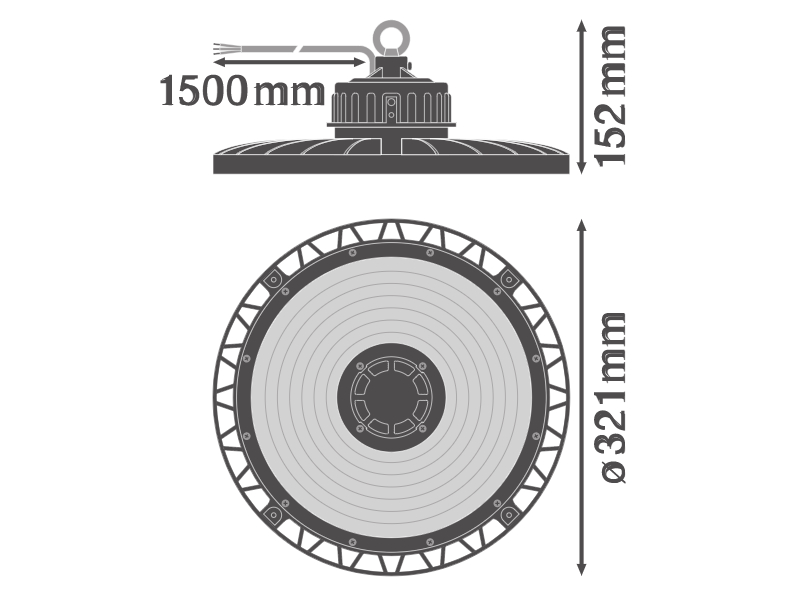

Dimensions & packaging
| EAN | 4058075692800 |
|---|---|
| Length | 321 mm |
| Width | 321 mm |
| Height | 152 mm |
| Weight | 2554 g |
