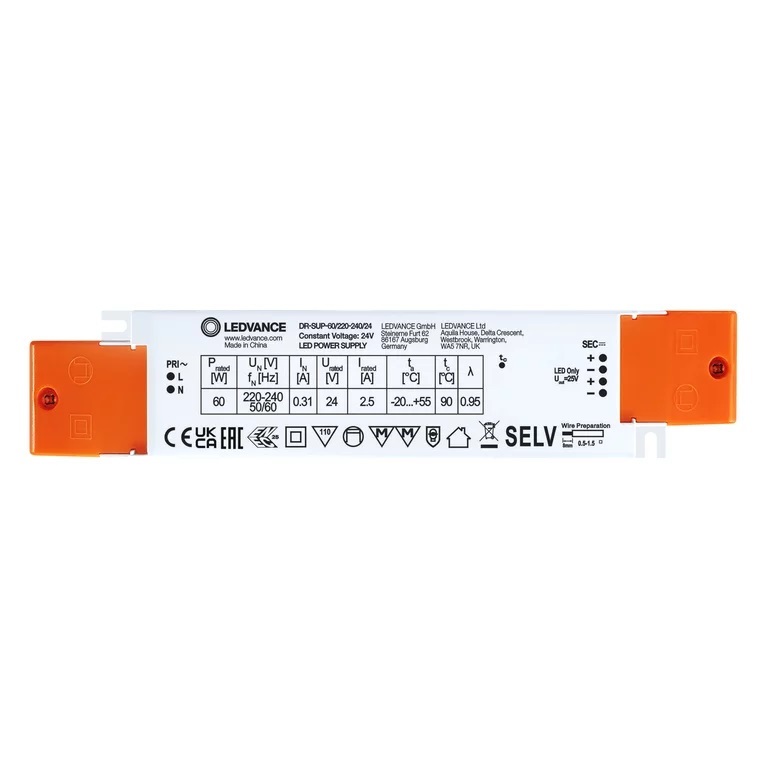

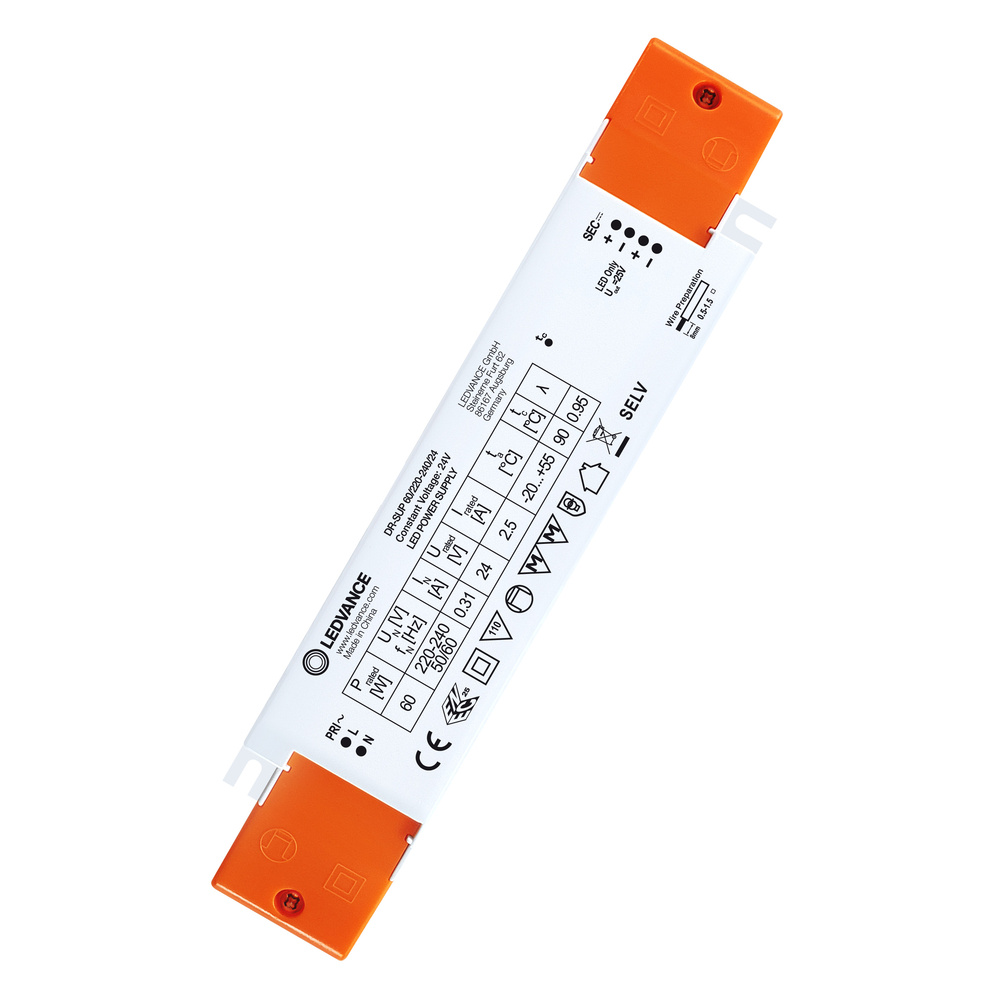

Ledvance LED driver DR-SUP-60/220-240/24 – 4058075437807
Product information "Ledvance LED driver DR-SUP-60/220-240/24 – 4058075437807"
Constant voltage LED drivers with a long service life. Product properties: available in 30 W, 60 W, 100 W and 200 W. Integrated cable clamp for independent installation. Lifespan: up to 60,000 hours (at max. TC temperature). Protection class: IP20. Low rippling current <5%. Supply voltage: 220 ... 240 V. Operating frequency: 50/60 Hz. Operation with less than 60 V: safety small voltage (SELV). Reverse over temperature, overload, short-circuit and work current protection. Product advantages: Optimized for operation with 24 V flexible LED light band. Proven, long lifespan at maximum permissible temperatures. 5 years of guarantee. Maintenance -free operation and minimum installation costs. Quick and easy assembly. High efficiency and reliability. Areas of application: voute lighting, also in cramped space. Wallwasher effect lighting in living rooms, eating rooms, bedrooms, entrance areas. Offices, shopping centers, hospitals, restaurants, hotels. For SELV installations indoors.
Downloads & Documents
Electrical data
| operating frequency: | 0/50/60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| conformity: | CE |
| system power: | 60 |
Casing
| form type: | linear |
|---|---|
| protection type: | IP20 |
| material: | plastic |
| mounting: | universal mounting |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 55 °C |
Photometric data
| dimmable: | no |
|---|---|
| color: | white |
| lamp type: | LED |
| sensor type: | no |
Logistic data
| country of origin: | China |
|---|

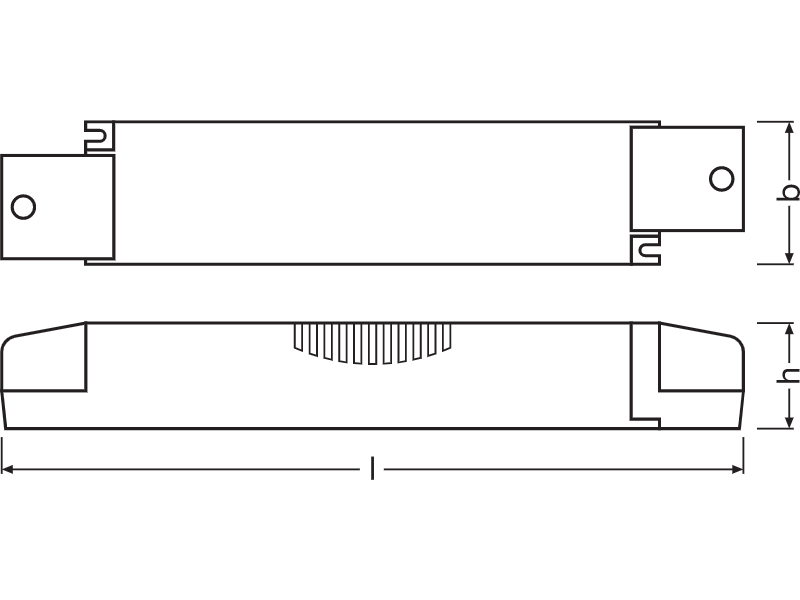

Dimensions & packaging
| EAN | 4058075437807 |
|---|---|
| Length | 198 mm |
| Width | 43 mm |
| Height | 30 mm |
| Weight | 192 g |
