LEDVANCE

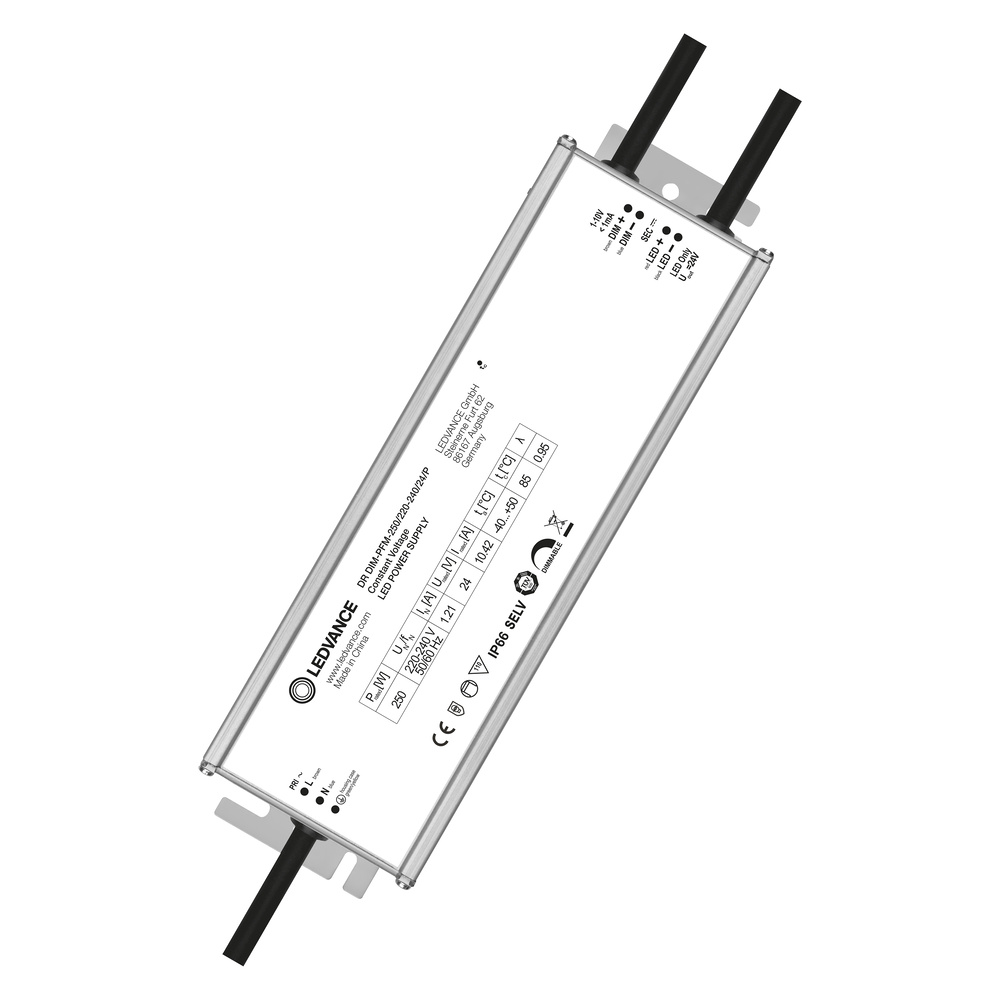

Ledvance LED DRIVER 1-10 V DIM OUTDOOR PERFORMANCE -250/220-240/24/P

Product number: 4058075240155
LEDVANCE

Ledvance LED DRIVER 1-10 V DIM OUTDOOR PERFORMANCE -250/220-240/24/P

Product number: 4058075240155

Shipping in 6 day(s)

Constant voltage LED drivers for the outdoor area with 1-10 V-Dimm interface. Product properties: Available in 20 W, 40 W, 60 W, 100 W, 150 W and 250 W. Dimmable over 1 ... 10 V-DimM control. Dimmable of 10 ... 100 %. Lifespan: up to 50,000 hours (at max. TC temperature). Protection class: IP66. Op ... Read more

€88.80


Content: 1 Stück

Product information "Ledvance LED DRIVER 1-10 V DIM OUTDOOR PERFORMANCE -250/220-240/24/P"

Constant voltage LED drivers for the outdoor area with 1-10 V-Dimm interface. Product properties: Available in 20 W, 40 W, 60 W, 100 W, 150 W and 250 W. Dimmable over 1 ... 10 V-DimM control. Dimmable of 10 ... 100 %. Lifespan: up to 50,000 hours (at max. TC temperature). Protection class: IP66. Operating temperature range at TA: -40 ... 50 ° C. Supply voltage: 220 ... 240 V. Operating frequency: 50/60 Hz. Overvoltage protection: up to 6 kV (L-n), 6 kv (l/n-PE). Short-circuit and overload protection. Product advantages: Optimized for operation with 24 V flexible LED light band. 5 years of guarantee. Very stable output power. Quick and easy installation through pre -wiring. High efficiency and reliability. Installation in very cold and hot environments. Areas of application: Suitable for installations indoors and outdoors. Facade and building lighting. Particularly suitable for lighting public spaces. Baths, kitchens and outdoor areas. Offices, shopping centers, hospitals, restaurants, hotels.
Electrical data
operating frequency: 0/50-60 Hz
rated voltage: 220-240 V
system power: 250 W
Casing
ballproof: no
fire protection: no
form type: linear
protection type: IP66
material: metal
protection class: I
Photometric data
application: indoor
dimmable: yes
color: aluminium
lamp type: LED
interface: 1-10 V
solar panel: no
Logistic data
item category: LED drivers
country of origin: China

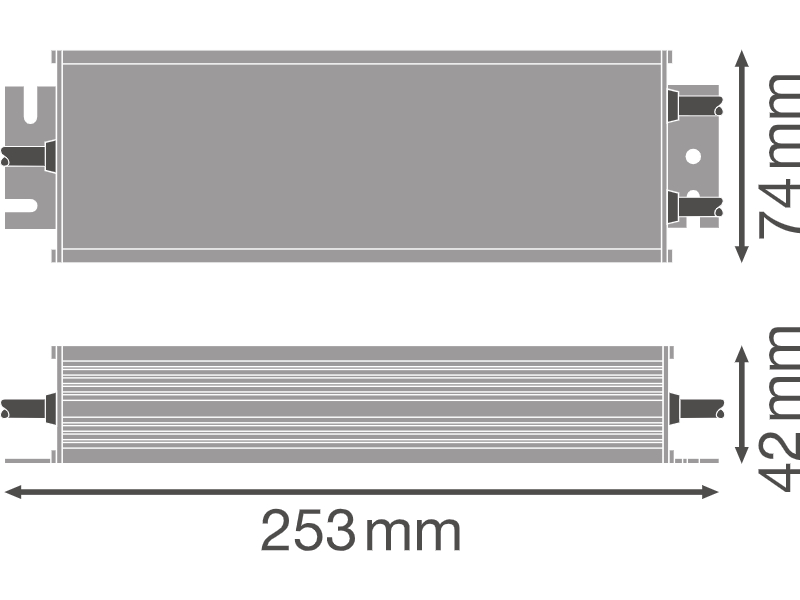

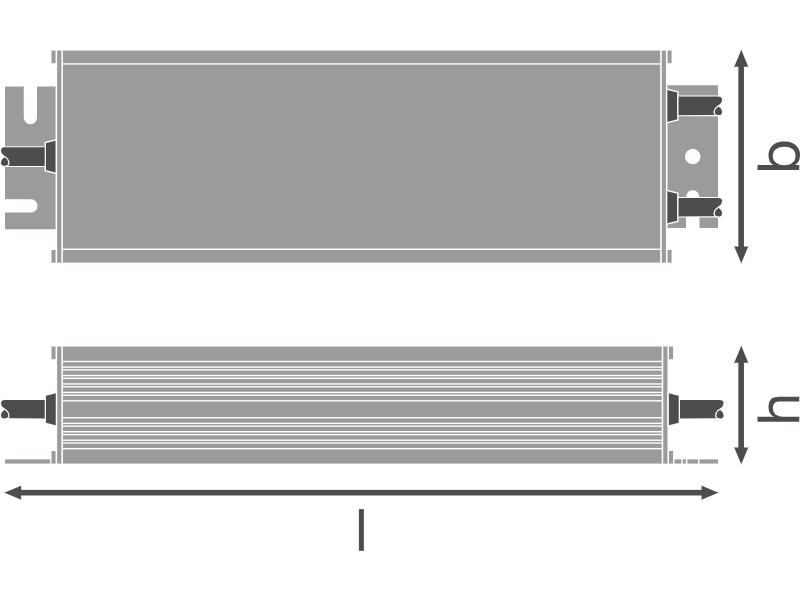

Dimensions & packaging
EAN 4058075240155
Length 253 mm
Width 74 mm
Height 42 mm
Weight 1250 g
