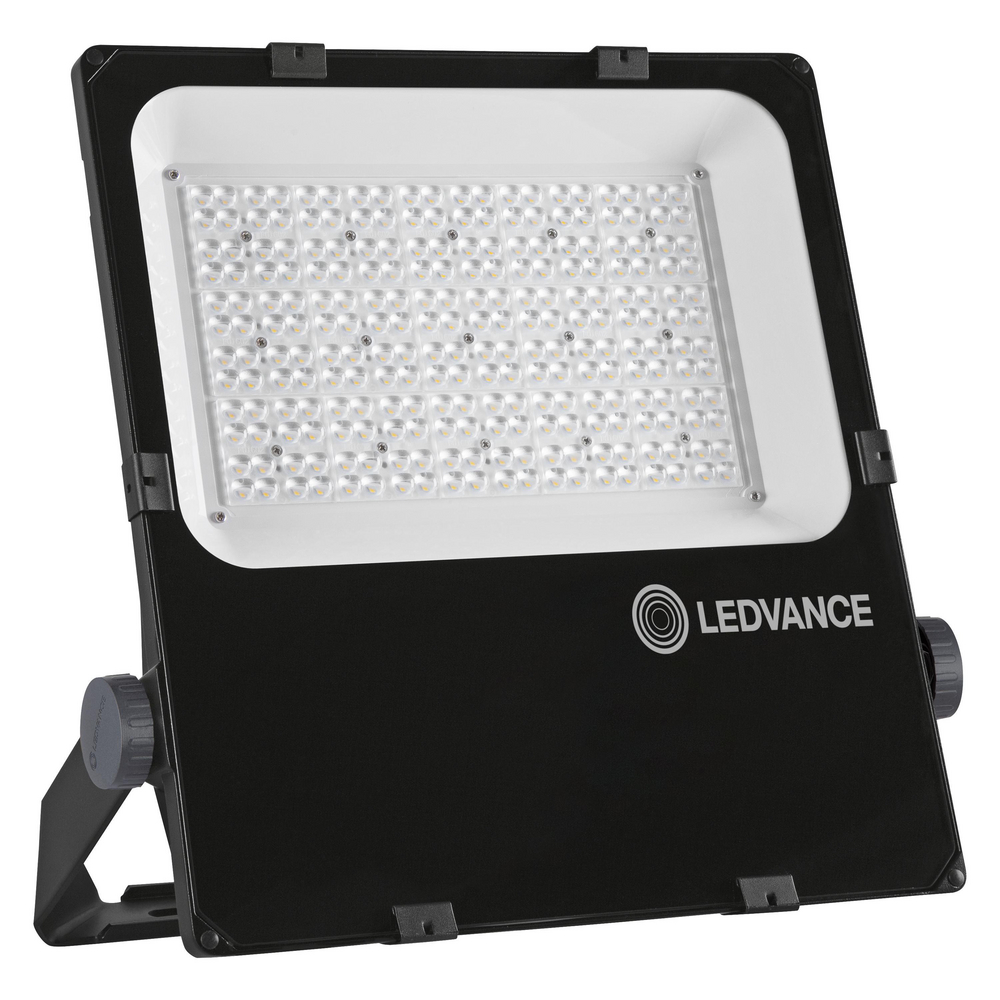

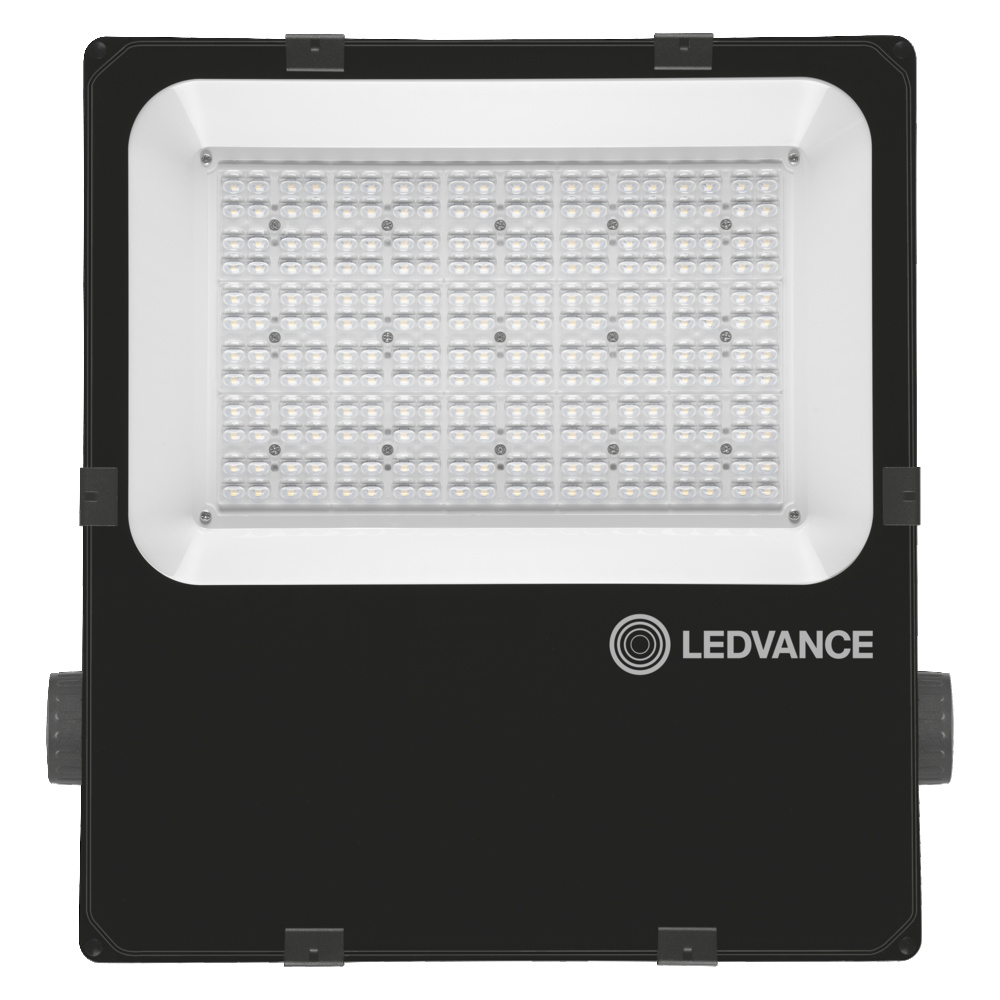

Ledvance LED floodlight FLOODLIGHT PERFORMANCE SYM R30 200 W 4000 K BK - 4058075353787
LEDVANCE
Ledvance LED floodlight FLOODLIGHT PERFORMANCE SYM R30 200 W 4000 K BK - 4058075353787
Product number:
4058075353787
Shipping in 7 day(s)
€612.87
Content:
1 Stück
Prices incl. VAT plus shipping costs net €515.02
Product information "Ledvance LED floodlight FLOODLIGHT PERFORMANCE SYM R30 200 W 4000 K BK - 4058075353787"
Headlights with rotation -symmetrical light distribution for large mast heights. Product properties: High light output: up to 140 lm/w. Rotation -sensitive light distribution for high installation heights. Bumped (45 °) assembly bracket with a rotary range of up to 180 °. Protection class: IP66. Short strength: IK08. Ambient temperature area for operation: -30 ...+50 ° C. High overvoltage protection of up to 10 kV (L/N-PE), 6 KV (L-N). Integrated climate membrane to prevent condensation inside the lamp. Connection via cable (2 m), wiring required. Product advantages: Energy savings of up to 90 % compared to halogen lamp floods. Up to 45 % energy savings compared to lights that use conventional discharge lamps. Bright, robust and durable. Uniform luminance distribution and reduced glare. No light exit in the upper half area (Ulor 0%) at 0 °. Key hole for particularly easy assembly. 5 years of guarantee. Areas of application: Direct replacement for lights that use HID lamps. Exterior application (IP66). Parking spaces. Uefental space. Industry. Sports facilities. Large area lighting. D-signs in accordance with EN 60598-2-24 for fire-hazardous branches, e.g. B. by accumulation of dust.
Downloads & Documents
Electrical data
| operating frequency: | 50-60 Hz |
|---|---|
| operating voltage: | 220-240 V |
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
| system power: | 200 |
| switching cycles: | 100000 |
Casing
| form type: | rectangular |
|---|---|
| protection type: | IP66 |
| material: | aluminum |
| impact resist: | IK08 |
| protection class: | I |
| environment temperature from: | -30 °C |
| environment temperature to: | 50 °C |

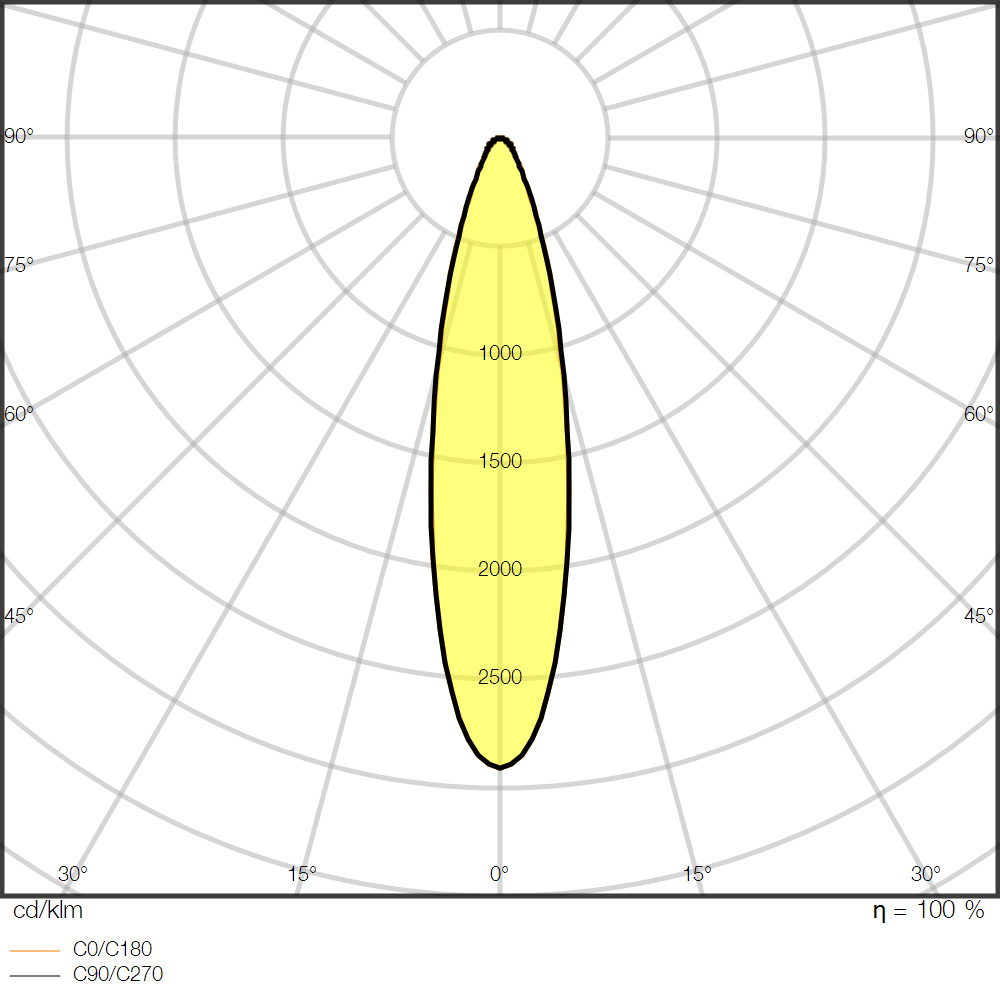

Photometric data
| radiation angle: | 30 ° |
|---|---|
| dimmable: | no |
| color: | black |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 140 lm/W |
| start time: | 0,5 s |
| lum flux: | 26800 lm |
Logistic data
| item category: | outdoor luminaires |
|---|---|
| country of origin: | China |

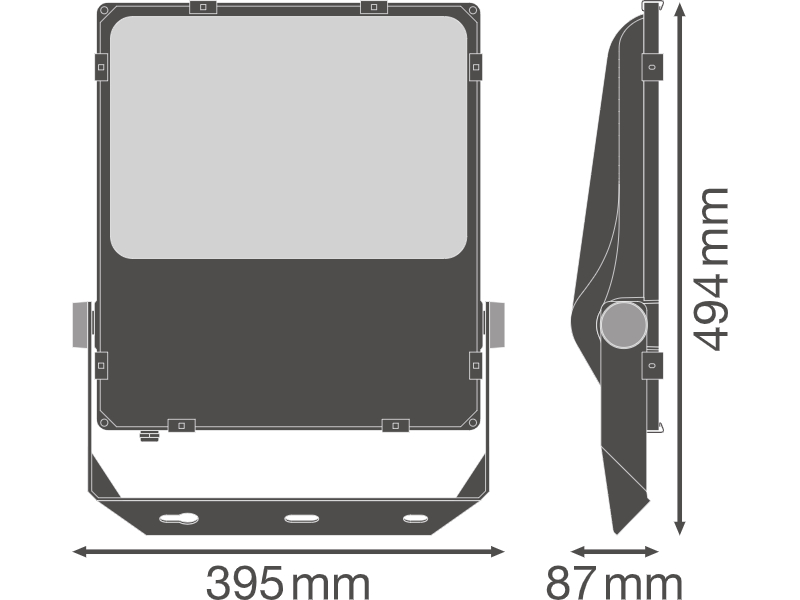

Dimensions & packaging
| EAN | 4058075353787 |
|---|---|
| Length | 494 mm |
| Width | 395 mm |
| Height | 87 mm |
| Weight | 6300 g |
