Product information "Helvar LED Driver Switch Control Dimmkonverter LL1-CV-SC - 5701000"
Dimming converter for constant voltage LED ECG

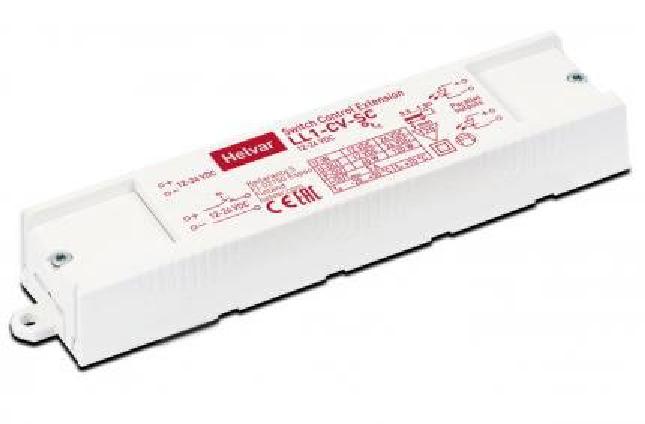

The 12-24V dimming converter LL1-CV-SC with Switch-Control input by Helvar is designed for use with the Helvar constant voltage LED drivers and provides solutions for your decorative lighting: it allows the use of the Helvar switch control, a light control protocol with a retractable switch, for lighting applications with constant voltage (12 - 24 V).
Parallel connection possible
The dimming converter is a device of protection class II, which is suitable for luminaires of protection class I, II and III (SELV) as well as for independent mounting. It convinces with a low standby power of less than 0.1 watts. Duplicated output terminals allow optional parallel connection. The Switch-Control input is doubly insolated from the driver input and output.
Downloads & Documents
Electrical data
| number of channels: | 1 |
|---|---|
| system power: | 60 |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | III |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimming range to: | 100 % |
|---|---|
| color: | white |
Logistic data
| item category: | LED drivers |
|---|

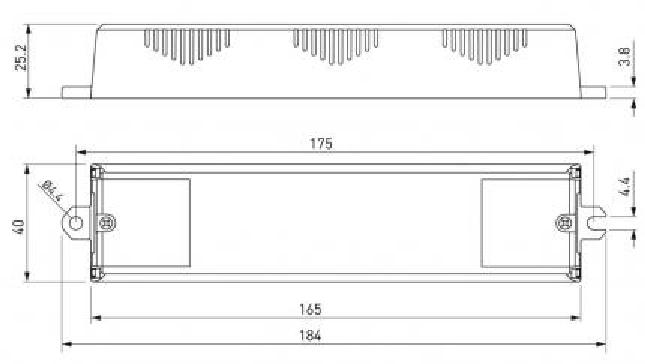

Dimensions & packaging
| Length | 184 mm |
|---|---|
| Width | 40 mm |
| Height | 25 mm |
