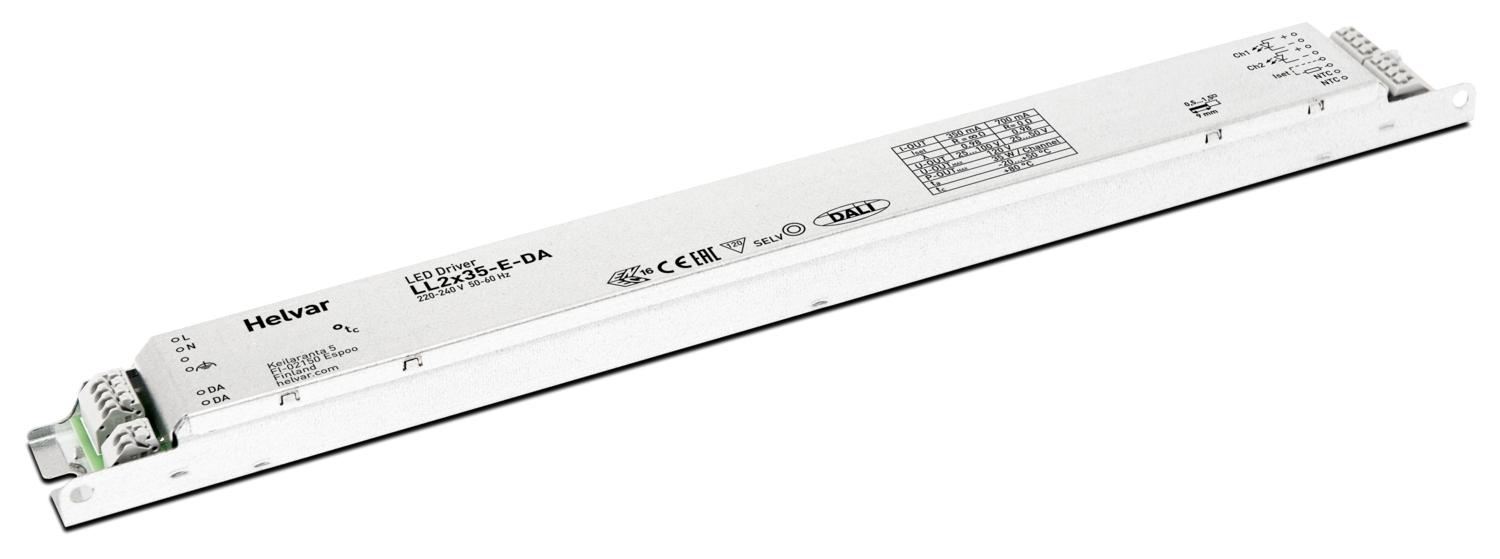

Helvar LED driver LL2x35-E-DA 840 - 5514000
No longer available
For an alternative please contact us!
Product information "Helvar LED driver LL2x35-E-DA 840 - 5514000"
- 2 × 35 W DALI dimmable LED driver
- 350 mA – 700 mA adjustable current output
- Lifetime up to (h): 100000
- Dimming range: 1% – 100%
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| lifetime: | 50000 h |
| system power: | 35 |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| protection class: | I/II |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | DALI |
Logistic data
| country of origin: | Finland |
|---|

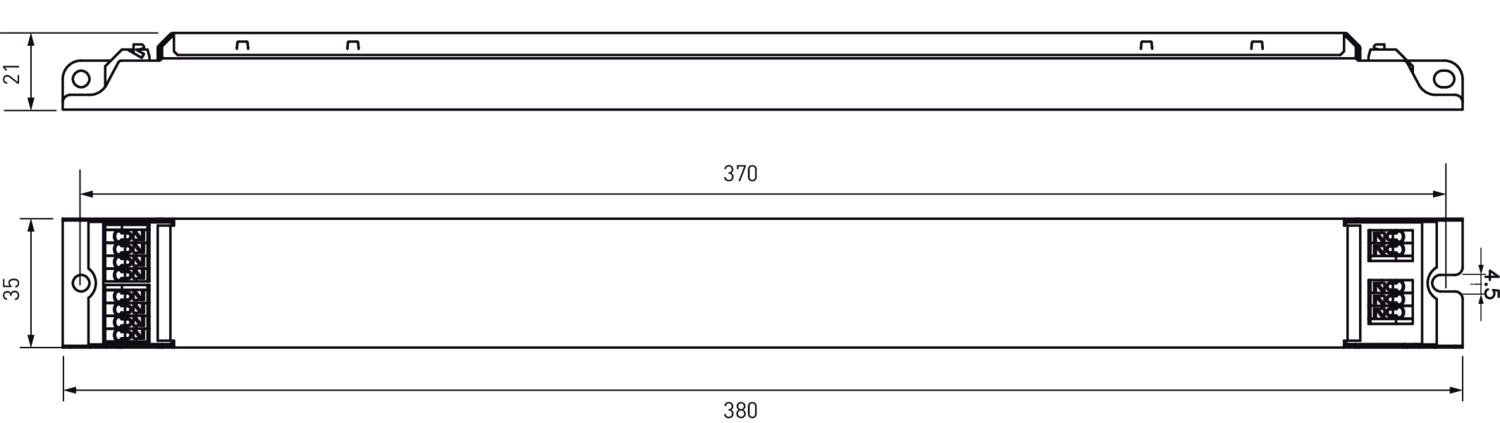

Dimensions & packaging
| Length | 380 mm |
|---|---|
| Width | 35 mm |
| Height | 21 mm |
| Weight | 365 g |
