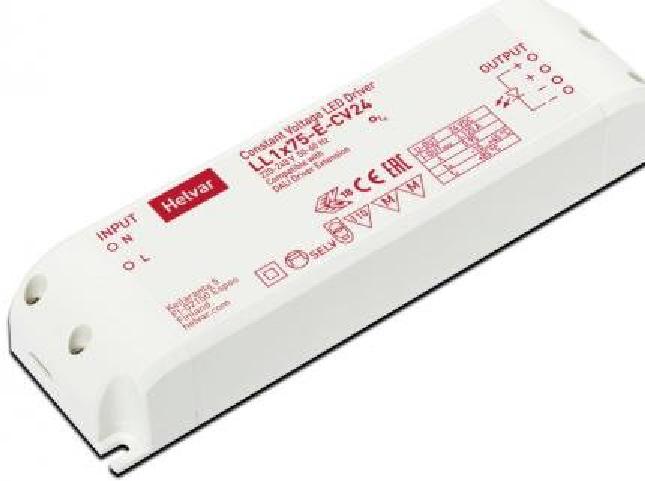

Product information "Helvar LED-Driver LL1x75-E-CV24"
24V constant voltage LED ECG with up to 75W
The 24V constant voltage LED driver LL1x75-E-CV24 from Helvar is suitable for installation in Class I and II luminaires or for independent mounting. It has a nominal output of up to 75 watts.
SELV output for safety and flexibility
The LED ECG is protected against open circuit, short circuit and overload. Its SELV output ensures safety and flexibility in luminaires. The lifespan is 30,000 hours.
Downloads & Documents
Datasheet-Helvar-LED-Driver-LL1x75-E-CV24-5588000_1592154108_3
CE-Zertifikat-Helvar-LED-Treiber-LL1x75-E-CV24-5588000_1592154108_5
Declaration-of-Confirmity-Certificate-Helvar-LED-Driver-LL1x75-E-CV24-5588000_1592154108_6
CE-Certificate-Helvar-LED-Driver-LL1x75-E-CV24-5588000_1592154108_7
ENEC-Certificate-Helvar-LED-Driver-LL1x75-E-CV24-5588000_1592154102_8
Login
Electrical data
| number of channels: | 1 |
|---|---|
| output voltage: | 24 V |
| rated voltage: | 220-240 V |
| lifetime: | 30000 h |
| system power: | 75 W |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| mounting: | with strain relief |
| protection class: | II |
| environment temperature from: | -15 °C |
| environment temperature to: | 45 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|

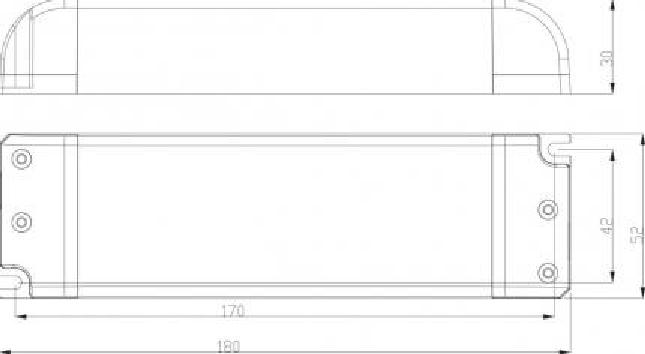

Dimensions & packaging
| Length | 180 mm |
|---|---|
| Width | 52 mm |
| Height | 30 mm |
