Helvar Oy AB

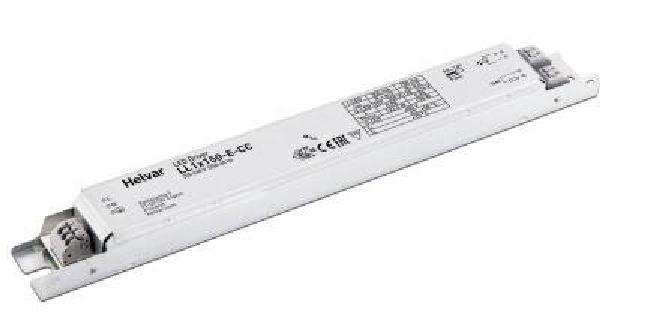

Helvar LED-Driver LL1x150-E-CC

Product number: 5551001
Helvar Oy AB

Helvar LED-Driver LL1x150-E-CC

Product number: 5551001

Immediately available

Highly efficient LED ECG with up to 150 WThe constant current LED driver LL1x150-E-CC from Helvar is ideally suited for installation in luminaires of protection class I, but can also be used without problems for luminaires of protection class II. It has a nominal output of up to 150 watts and a ver ... Read more

€21.51

Product information "Helvar LED-Driver LL1x150-E-CC"

Highly efficient LED ECG with up to 150 W

The constant current LED driver LL1x150-E-CC from Helvar is ideally suited for installation in luminaires of protection class I, but can also be used without problems for luminaires of protection class II. It has a nominal output of up to 150 watts and a very high efficiency of up to 96%.

Output current adjustable

The LED ECG is suitable for DC operation and a low ripple current. The output current can be adjustable between 350 and 700 mA. The LED driver is protected against open circuit and short circuit. Its long lifespan is up to 100,000 hours.


Technical Data

Electrical Data

Rated Voltage: 220-240V

Rated frequency: 0/50/60Hz

Output voltage: 128.0000-350.0000V

Output current: 0.3500-0.7000A

Conformity: CE/ENEC/EAC

Service life: 50000h

Operating mode: Constant current

Technical lighting data

Wattage: LED#1#0#150#0.7#0.7#128#214#1

Dimmable: no

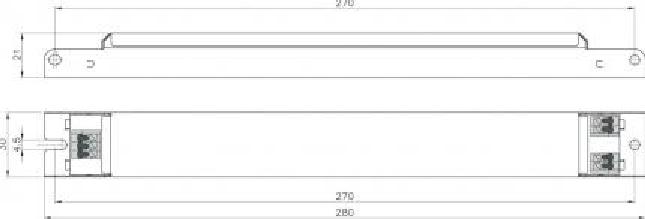

Dimensions

Width [mm]: 30mm

Height [mm]: 21mm

Length [mm]: 280mm

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 85°C

Ambient temperature (ta): -20...+50°C

Protection class: II

Item number: 5551001
