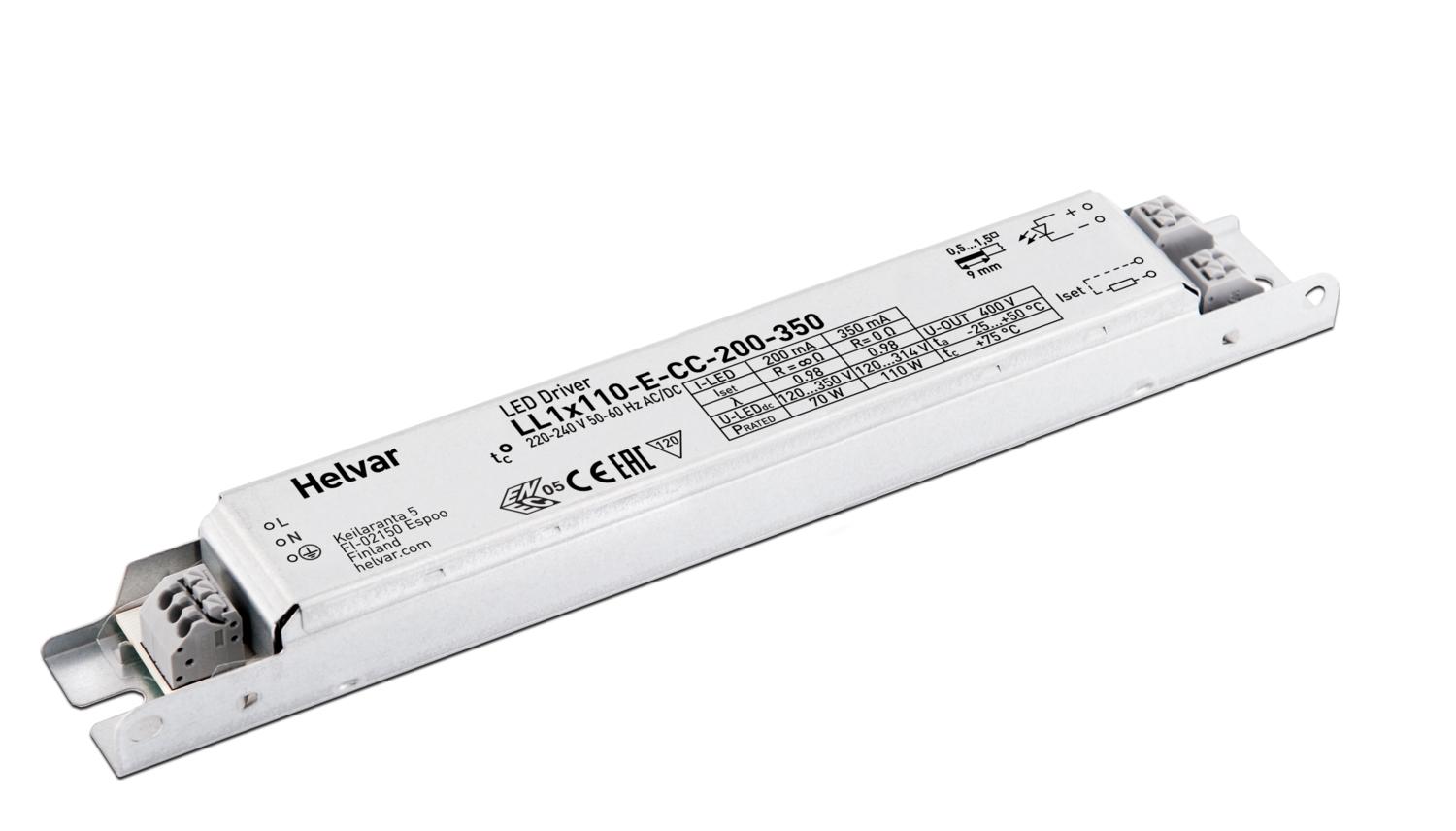

Helvar LED driver LL1x110-E-CC-200-350 - 5538001
Product information "Helvar LED driver LL1x110-E-CC-200-350 - 5538001"
- 110W constant current LED driver
- 200-350 mA adjustable output current
- Rated life up to [hrs]: 100000
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| lifetime: | 100000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| protection class: | I/II |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | no |
|---|---|
| color: | white |
Logistic data
| country of origin: | Finland |
|---|

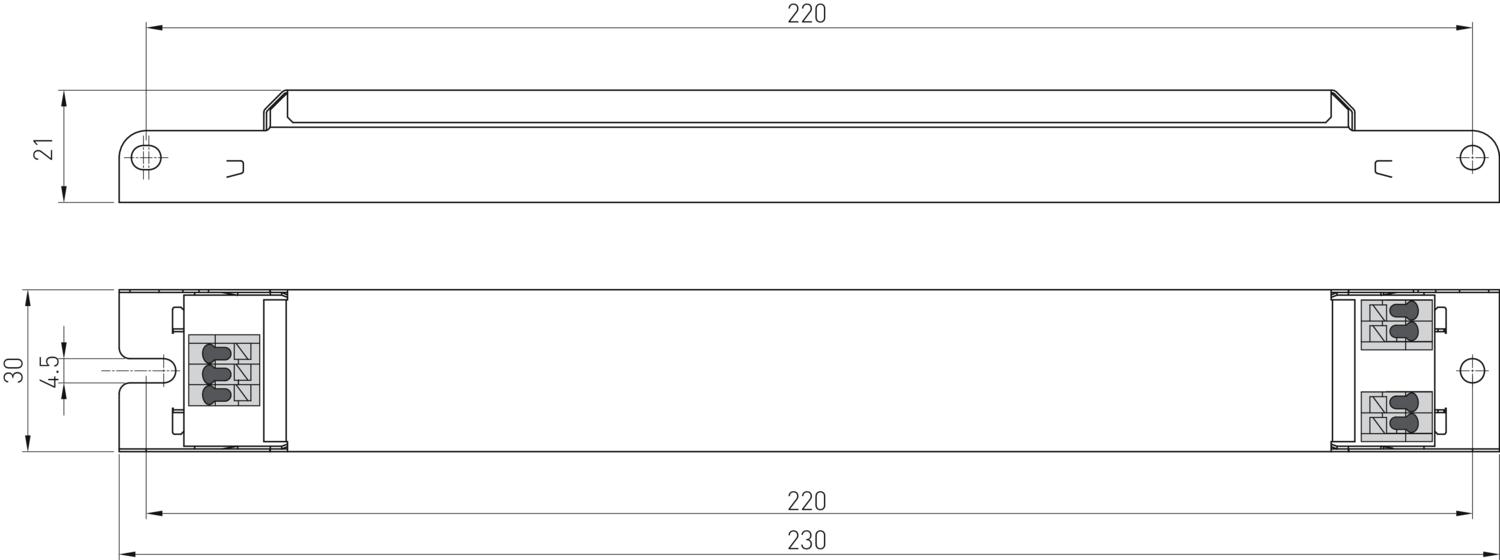

Dimensions & packaging
| Length | 220 mm |
|---|---|
| Width | 30 mm |
| Height | 21 mm |
| Weight | 173 g |
