Product information "Helvar LED-Driver LL1x10-42-CR-DA - 5721001"
DALI-2 dimmable LED ECG with up to 42W
The DALI-2 constant current LED driver LL1x10-42-CR-DA from Helvar is suitable for installation in closed luminaires where protection is provided by the luminaire construction (Class I or II). The driver itself has Class I. It has a nominal power of up to 42 watts and a high efficiency of up to 92%. It is also suitable for DC operation. The LED ECG can be dimmed within a range of 1-100% via its DALI-2 interface. The output current is adjustable between 120 mA (default) and 350 mA.
Helvar Driver Configurator support
The LED driver complies with the IEEE 1789 standard due to its very low flicker output. It is suitable for flicker-free camera recording applications. It also has the special Helvar Driver Configurator support. The latest Switch Control 2 functionality ensures user-friendly intensity control. In addition, the Helvar LED ECG has integrated power monitoring (real time), Running hour monitor (accumulative) and energy management (accumulative).
The LED ECG has an adaptive overload protection, which reduces the output current if a minor overload (up to 45 W) is detected, and a constant lumen output (CLO), adjustable up to 100,000 h (default setting: deactivated). The output current peak is limited (600 mA) during load change. In addition, the LED driver has a full load detection with automatic recovery, no-load and short-circuit protection. The long life of the LED driver is 100,000 hours.
Downloads & Documents
Datenblatt-Helvar-LED-Treiber-LL1x10-42-CR-DA-5721001_1592173612_3
Datasheet-Helvar-LED-Driver-LL1x10-42-CR-DA-5721001_1592173612_4
CE-Certificate-Helvar-LED-Driver-LL1x10-42-CR-DA-5721001_1592173612_6
ENEC-Zertifikat-Helvar-LED-Treiber-LL1x10-42-CR-DA-5721001_1592173612_7
CE-Zertifikat-Helvar-LED-Treiber-LL1x10-42-CR-DA-5721001_1592173607_8
Login
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 60000 h |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | yes |
|---|---|
| dimming range to: | 100 % |
| dimming range from: | 1 % |
| color: | white |
| interface: | DALI |
Logistic data
| item category: | LED drivers |
|---|

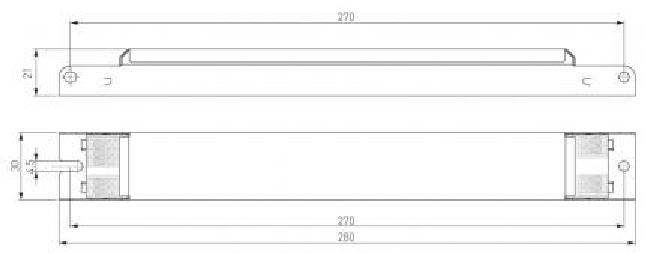

Dimensions & packaging
| Length | 280 mm |
|---|---|
| Width | 30 mm |
| Height | 21 mm |
