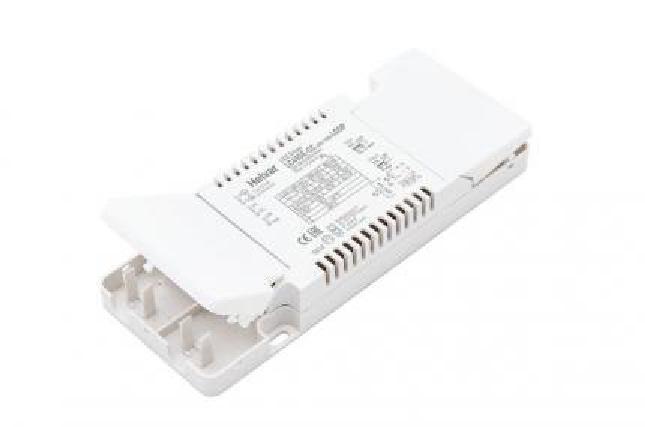

Helvar LED-Driver LC45SE-CC-600-1050-LOOP

Product number: 5742000
Helvar Oy AB

Helvar LED-Driver LC45SE-CC-600-1050-LOOP

Product number: 5742000

Shipping in 14 day(s)

Constant current LED driver with up to 45 WThe constant current LED driver LC45SE-CC-600-1050-LOOP by Helvar is ideal for installation in Class I and II luminaires. The nominal power is up to 45 watts. It is suitable for DC operation.Output current adjustableThe LED ECG has a very low current rippl ... Read more

€20.88

Product information "Helvar LED-Driver LC45SE-CC-600-1050-LOOP"

Constant current LED driver with up to 45 W

The constant current LED driver LC45SE-CC-600-1050-LOOP by Helvar is ideal for installation in Class I and II luminaires. The nominal power is up to 45 watts. It is suitable for DC operation.

Output current adjustable

The LED ECG has a very low current ripple according to IEEE 1789 standard. SELV output protection ensures safety and flexibility in luminaires. The output current can be set between 600 mA and 1050 mA.

The LED driver has an optimized mechanism for independent applications. Integrated, spacious strain reliefs with screwless clamps ensure a quick and simple installation process. Double input terminals allow looping through the mains cable.

The long lifetime of the Helvar LED driver is 100,000 hours.


Technical Data

Electrical Data

Rated Voltage: 220-240V

Rated frequency: 0/50/60Hz

Output voltage: 25.0000-54.0000V

Output current: 0.6000-1.0500A

Conformity: CE/ENEC/EAC

Service life: 60000h

Operating mode: Constant current

Technical lighting data

Wattage: LED#1#0#45#1.05#1.05#25#42.8#1

Dimmable: no

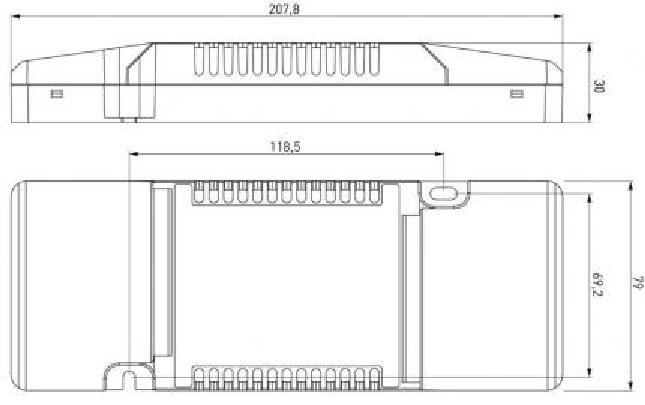

Dimensions

Width [mm]: 79mm

Height [mm]: 30mm

Length [mm]: 208mm

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 85°C

Ambient temperature (ta): -25...+45°C

Item number: 5742000
