Helvar Oy AB

Helvar FL-ECG EL4X18sc 220-240V 50-60

Product number: 4950000
Helvar FL-ECG EL4X18sc 220-240V 50-60
Helvar FL-ECG EL4X18sc 220-240V 50-60
Helvar FL-ECG EL4X18sc 220-240V 50-60
Helvar FL-ECG EL4X18sc 220-240V 50-60
Helvar Oy AB

Helvar FL-ECG EL4X18sc 220-240V 50-60

Product number: 4950000

Immediately available

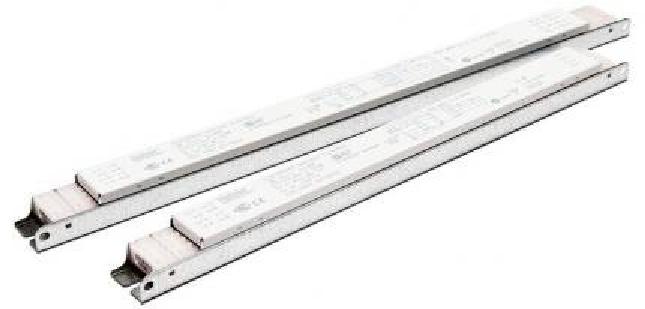

1-10V 4-flame dimmable electronic ballast for T8 fluorescent lamps with a max. Rated power up to 18Watt for luminaire installation

€57.38


Content: 1 Stück

Prices incl. VAT plus shipping costs net €48.22

Product information "Helvar FL-ECG EL4X18sc 220-240V 50-60"

1-10V 4-flame dimmable electronic ballast for T8 fluorescent lamps with a max. Rated power up to 18Watt for luminaire installation
Electrical data
number of channels: 4
energy efficiency index: A1
rated voltage: 220-240 V
lifetime: 50000 h
system power: 18 W
Casing
form type: linear
max housing temperature (tc-max): 80 °C
mounting: Installation
environment temperature from: 10 °C
environment temperature to: 50 °C
Photometric data
dimmable: yes
dimming range to: 100 %
dimming range from: 3 %
color: white
lamp type: T8
interface: 1-10 V
Logistic data
item category: electronic ballasts
Dimensions & packaging
EAN 6410040208368

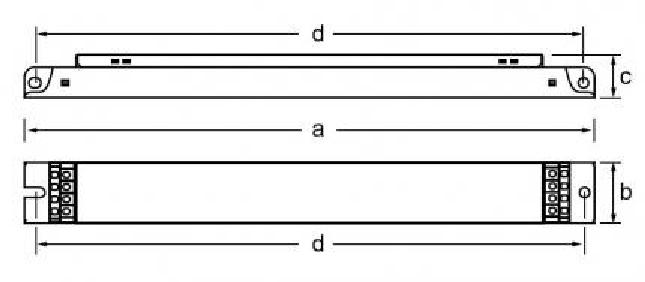

Length 430 mm
Width 30 mm
Height 21 mm
