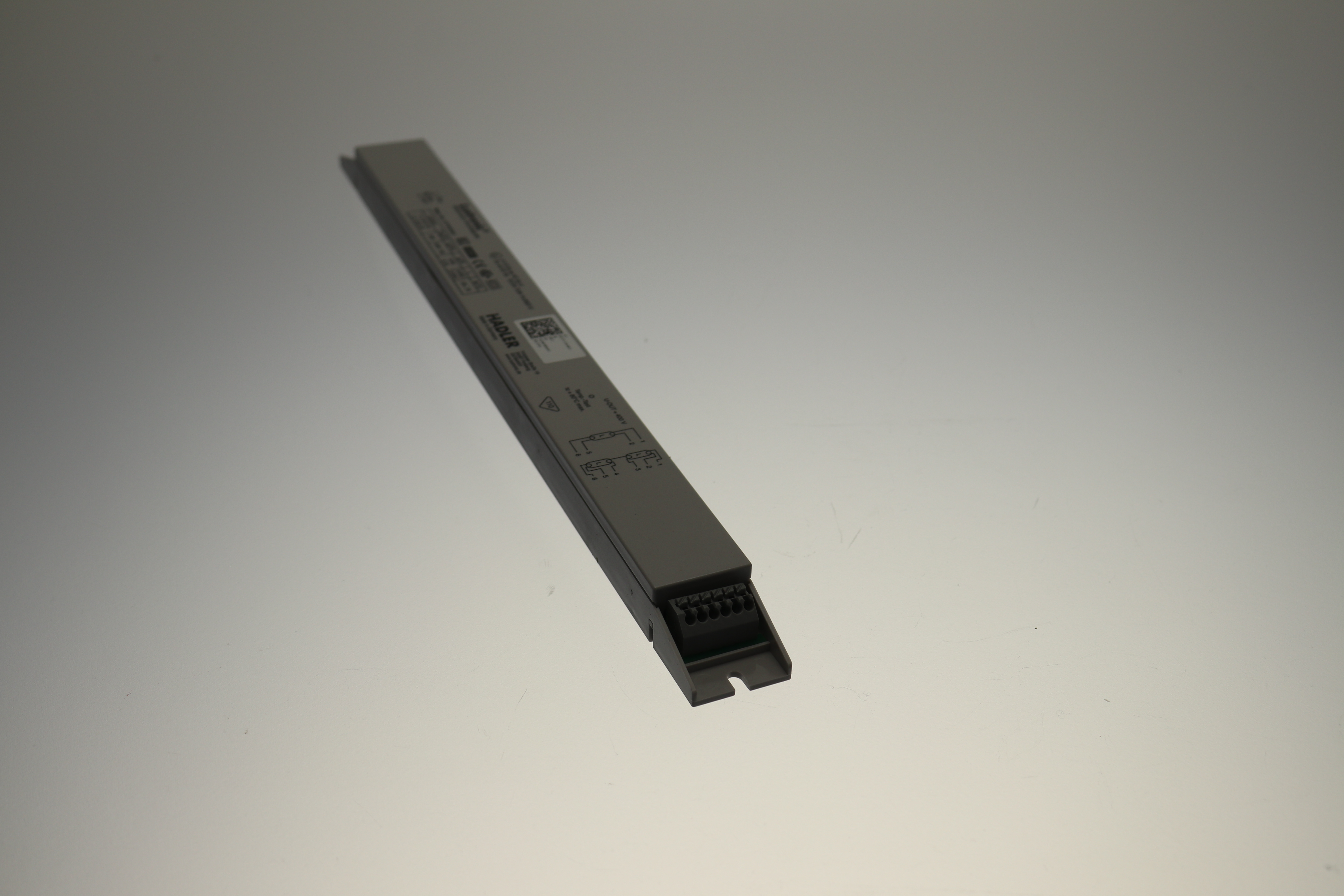

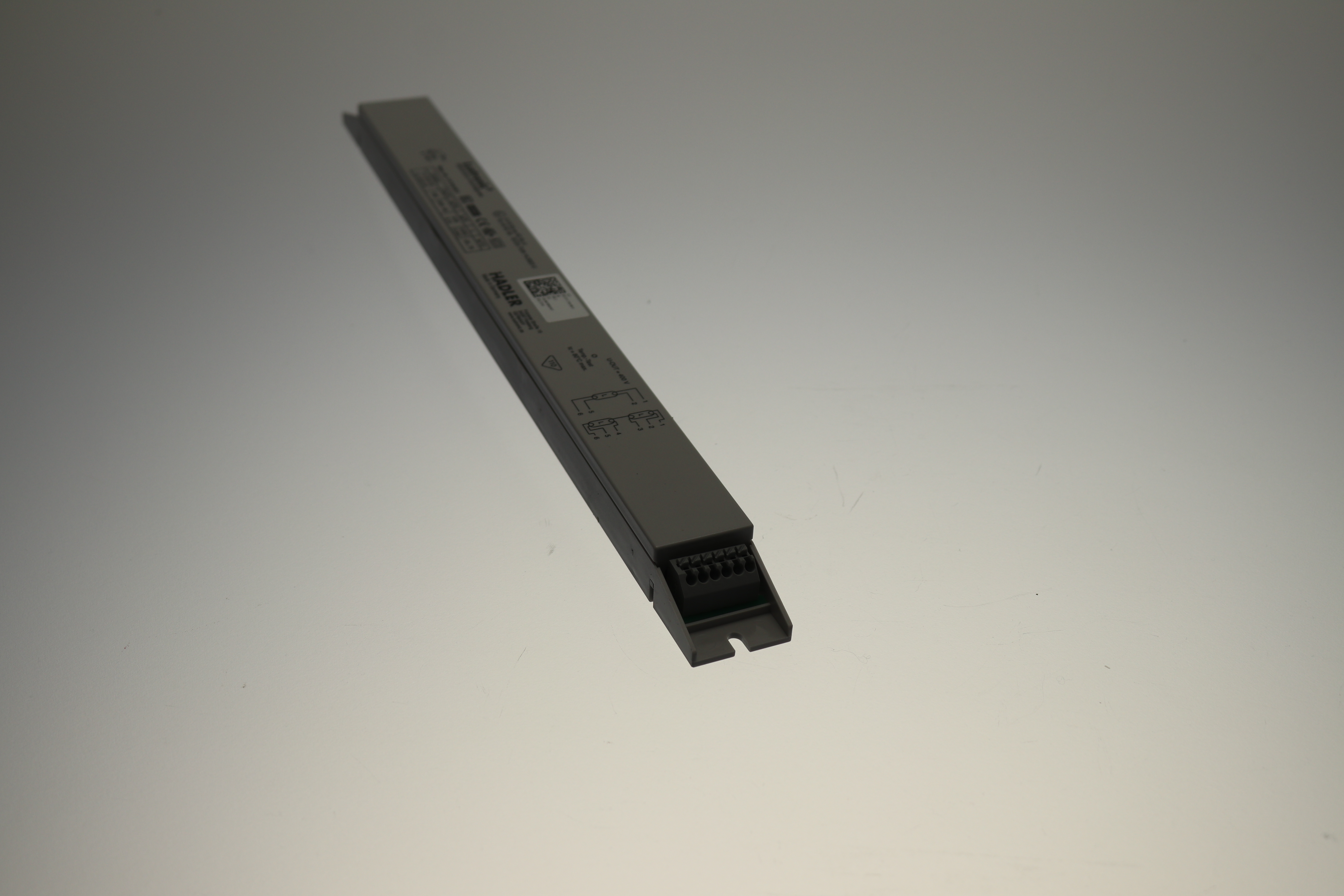

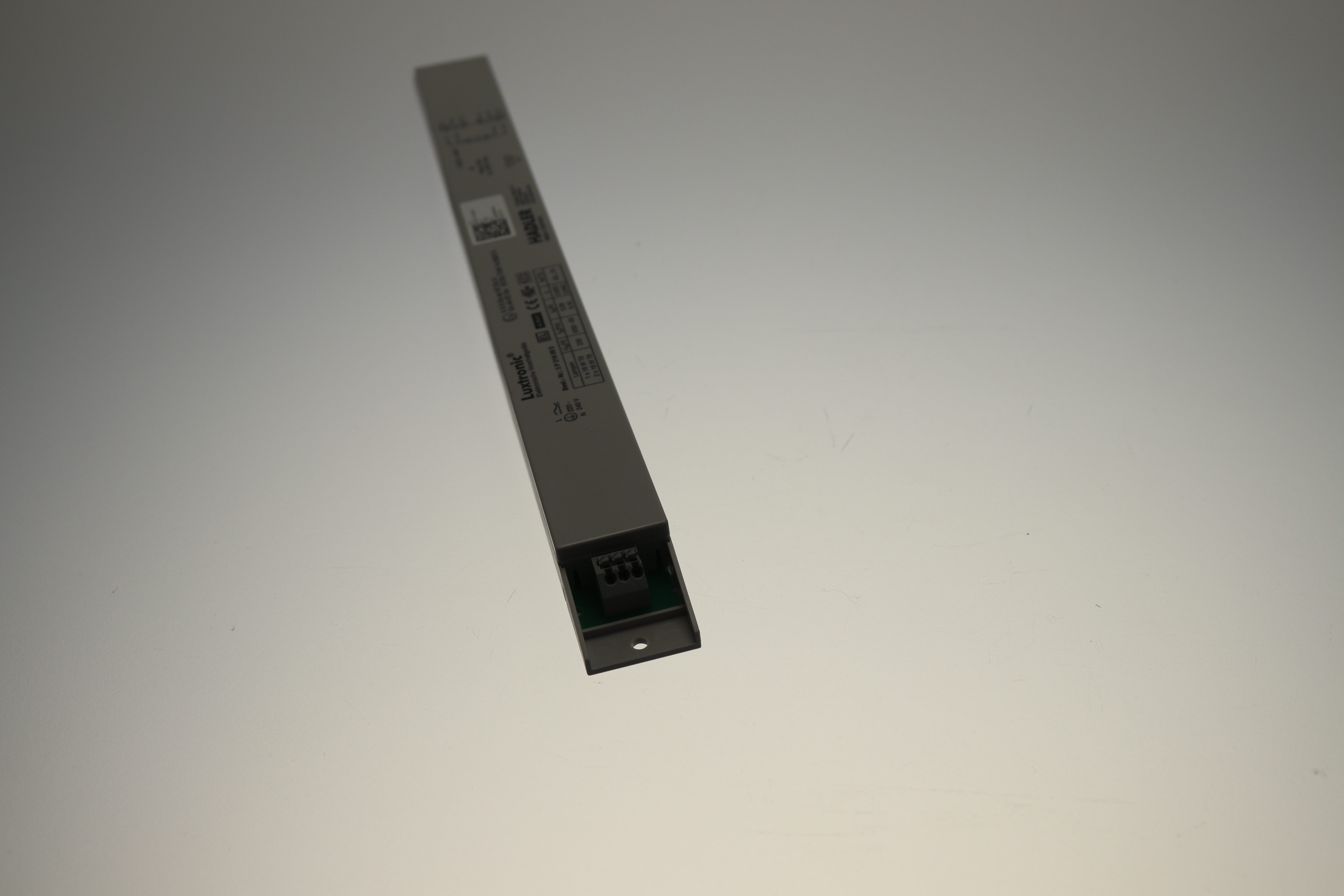

Hadler FL-ECG Luxtronic Linear VI 2x18 EX - 3 P 218 08 0
Immediately available
€22.26
Prices incl. VAT plus shipping costs net €18.71
Product information "Hadler FL-ECG Luxtronic Linear VI 2x18 EX - 3 P 218 08 0"
Explosion-proof FL ECG for T8 lamps
The 2-flame explosion-proof electronic ballast for T8 lamps Luxtronic Linear VI 2x18 EX from Hadler is suitable for luminaire installation. It is ideal for use in Zone 2 hazardous areas and has a rated power of 18 watts.
The IP20-protected housing of the FL ECG has the standard design 360 x 30 x 21 mm. It can be used in a temperature range of -20 - + 60 ° C. Its Ex-certification with statement of conformity enables easy luminaire certification and extra safety.
Long life, low replacement costs
In addition, the Hadler FL ECG has a lifespan of 100,000 h at ta = 60 ° C, so that the replacement costs are reduced and you benefit from an enhanced profitability.
Downloads & Documents
Electrical data
| number of channels: | 2 |
|---|---|
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
| system power: | 18 |
Casing
| max housing temperature (tc-max): | 80 °C |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 75 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|

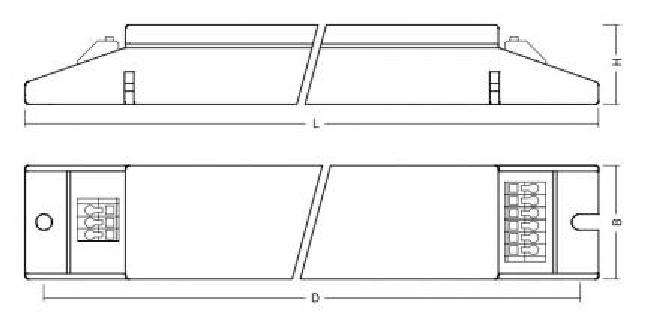

Dimensions & packaging
| Length | 360 mm |
|---|---|
| Width | 30 mm |
| Height | 21 mm |
| Weight | 170 g |
