Tridonic GmbH & Co KG

ECG-LED LCA 25W 350-1050mA one4all SC

Product number: 28000675
Tridonic GmbH & Co KG

ECG-LED LCA 25W 350-1050mA one4all SC

Product number: 28000675

Shipping in 14 day(s)

Dimming range 1 to 100 %Type of protection IP205-year guaranteeCasing: polycarbonate, whiteDimmable built-in LED DriverSuitable for emergency escapge lighting systems acc. to EN 50172Power-up fading at ACNominal life-time up to 100,000 hOutput current adjustable between 350 – 1,050 mAPower input on ... Read more

€39.44

Product information "ECG-LED LCA 25W 350-1050mA one4all SC"

  • Dimming range 1 to 100 %
  • Type of protection IP20
  • 5-year guarantee
  • Casing: polycarbonate, white
  • Dimmable built-in LED Driver
  • Suitable for emergency escapge lighting systems acc. to EN 50172
  • Power-up fading at AC
  • Nominal life-time up to 100,000 h
  • Output current adjustable between 350 – 1,050 mA
  • Power input on standby < 0.15 W
  • one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
  • ready2mains (configuration and dimming via mains)
  • Terminal blocks: 0° push terminals
  • Adjustable output current (DALI, ready2mains, I-select 2)
  • Constant light output function (CLO)
  • Configurable via ready2mains
  • Service monitor to log certain events
  • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
  • Application-oriented operating window for maximum compatibility
  • Best energy savings due to low standby losses and high efficiency
  • Flexible configuration via DALI, ready2mains and I-select 2
  • Reliability proven by life-time up to 100,000 h and 5-year guarantee
  • For linear/area lighting in office applications
  • Max. output power 25 W
  • Up to 90 % efficiency

Technical Data

Logistic Data

EAN (pcs): 9006210523996

EAN (packunit): 9006210523941

Electrical Data

Rated Voltage: 220 - 240 V

Rated frequency: 0/50/60 Hz

Output voltage: 20 - 50 V

Output current: 0.3 - 1.050 A

Starting time: 0,33 s

Service life: 100000 h

Power input: 7 - 26 W

Technical lighting data

Dimming range: 1 - 100 %

Wattage: LED#1#9#23#0.425#0.475#20#50#1

Dimmable: yes

Interface: corridor function; one4all

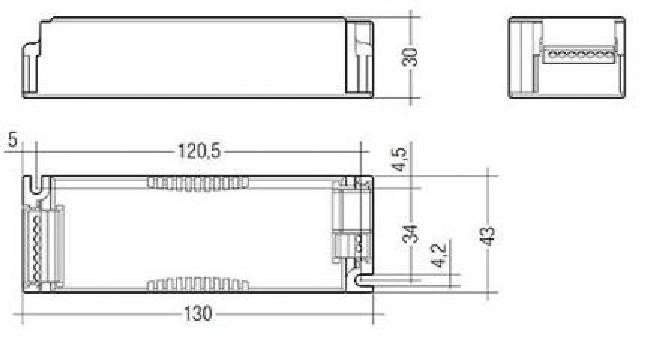

Dimensions

Width [mm]: 43 mm

Height [mm]: 30 mm

Length [mm]: 130 mm

Hole dimension [mm]: 120,5 mm

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 75 °C

Ambient temperature (ta): -25 - +60 °C

Item number: 28000675
