Brumberg LED downlight spot white, square – 12262073 – 425004785316 - 12262073
Brumberg LED downlight spot white, square – 12262073 – 425004785316 - 12262073
Shipping in 7 day(s)
€44.91
Prices incl. VAT plus shipping costs net €37.74
Product information "Brumberg LED downlight spot white, square – 12262073 – 425004785316 - 12262073"
Brumberg SEVEN-S 12262073. LED recessed spot, Square. Toolless ceiling installation by installation springs. Ceiling cut-out Ø 68 mm, Installation depth 38 mm, Length 82 mm, Width 82 mm, Weight 0,124 kg, Reflector silver with rotattionssymmetrical, deep, wide distributed light intensity. optimal light distribution due to a plastic, transparent cover. Luminous flux 740 lm, Power 1 x 7 W, System Efficiency 106 lm/W, Light colour warm white, Correlated color temprature (CCT) 2.700 K, Colour rendering index CRI > 80, Rated life time L70/B50 at 25 °C: 50000 h, Housing material: Aluminium / Polycarbonate, Colour: White, Permissible ambient temperature (ta): -20 °C - +25 °C, Protection class (EN 61140): III, Degree of protection (DIN EN 60529): IP20. For direct connection to mains voltage, Dimming depending on driver dimmable. BRUMBERG article number: 12262073 , GTIN: 4250047785316
Downloads & Documents
Electrical data
| through wiring: | no |
|---|---|
| conformity: | CE |
| lifetime: | 50000 h |
| system power: | 7 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | square |
| protection type: | IP20 |
| material: | aluminum, polycarbonate |
| mounting: | ceiling mounting, Installation |
| protection class: | III |
| environment temperature from: | -20 °C |
| environment temperature to: | 25 °C |

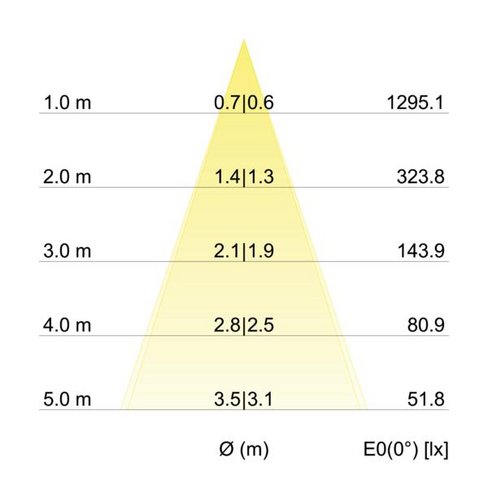

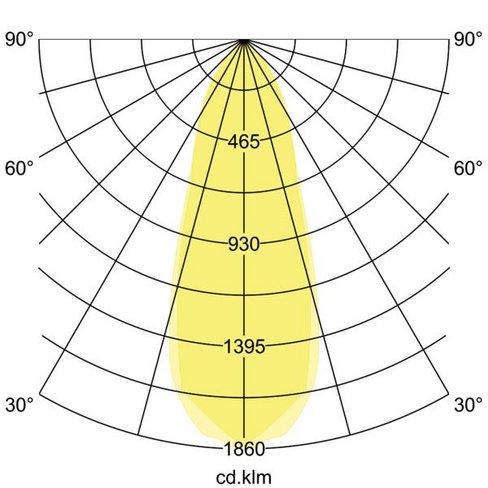

Photometric data
| radiation angle: | 38 ° |
|---|---|
| sensor: | no |
| dimmable: | no |
| color code: | 827 |
| color: | white |
| color temperature [Kelvin]: | 2700 |
| color rendering index [CRI]: | >80 |
| lamp type: | LED |
| lamp efficiency: | 106 lm/W |
| inclusive lamp: | no |
| solar panel: | no |
| lum flux: | 740 lm |

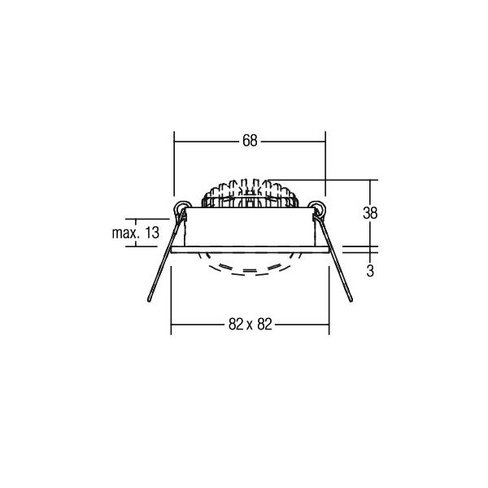

Dimensions & packaging
| Width | 82 mm |
|---|---|
| Weight | 124 g |
