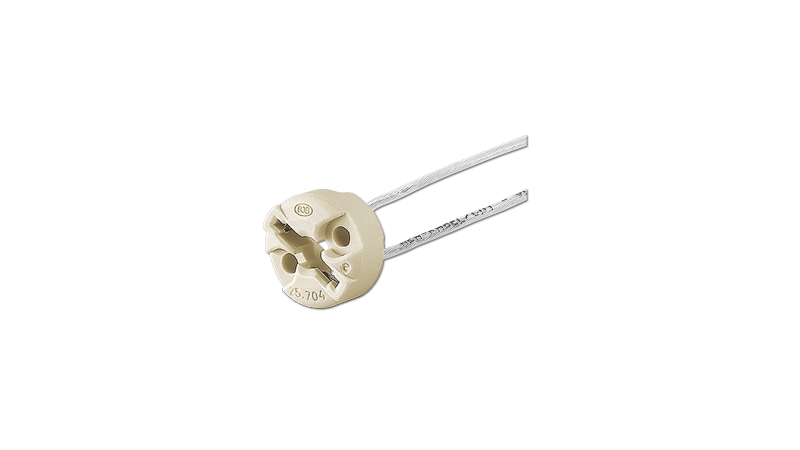

BJB Lampholder PGJ5 for HID lamps - 25.704.3001.00
Product information "BJB Lampholder PGJ5 for HID lamps - 25.704.3001.00"
Wires: 2 ignition cables attached, Cu, nickel plated, 0.75 mm², with ferrule, Insulation: PTFE (max. 250° C), Free cable length: 230 mm;Custom tariff no: 85366190
Downloads & Documents
Casing
| ballproof: | no |
|---|---|
| material: | ceramics/PPS |
| mounting: | screw mounting |
Photometric data
| sensor: | no |
|---|---|
| socket: | PGJ5 |
Logistic data
| item category: | lamp socket |
|---|
Dimensions & packaging
| Weight | 6 g |
|---|
