BAG electronics GmbH

BAG EVG CCD135-18QS-01/220-240/1-10V

Product number: 10078978
BAG electronics GmbH

BAG EVG CCD135-18QS-01/220-240/1-10V

Product number: 10078978

Immediately available

Electonic control gear units LEDDimmable 1-channel ECG for constant current operation of LED modules SELV equiv. output voltage ≤ 60 VDC Very high efficiency of up to 90 % (100 % load) Soft start and low output current ripple For use in luminaires of protection class I ECG extensivel ... Read more

€35.14


Content: 1 Stück

Product information "BAG EVG CCD135-18QS-01/220-240/1-10V"

Electonic control gear units LED
  • Dimmable 1-channel ECG for constant current operation of LED modules
  • SELV equiv. output voltage ≤ 60 VDC
  • Very high efficiency of up to 90 % (100 % load)
  • Soft start and low output current ripple
  • For use in luminaires of protection class I
  • ECG extensively protected against abnormal operating conditions at the output e.g. short-circuit, open circuit or overload
  • Suitable for direct current operation and application in combination with central battery installations
  • Push-Dim function of DALI interface: switching and dimming via push-button
  • Settable recovery function: automatic switch-on after mains failure
  • Dimming range: 1 ... 100 % luminous flux
  • PWM dimming with 500 Hz for flicker-free light and prevention of stroboscopic effects
  • Compact housing for maximum flexibility in luminaire design
  • Identical dimensions for dimmable and non-dimmable version
  • Certified as thermally protected device
  • Conformance with international regulations, regarding safety and operation, electromagnetic compatibility and immunity to interference
  • Nominal service life: 50,000 h with failure rate ≤ 10 % and operation at tc = tc,max
Electrical data
number of channels: 1
output voltage: 10-50 V
rated voltage: 220-240 V
lifetime: 50000 h
system power: 4-17 W
Casing
form type: rectangular
protection type: IP20
environment temperature from: -25 °C
environment temperature to: 50 °C
Photometric data
dimmable: yes
color: white
interface: 1-10 V
Logistic data
item category: LED drivers

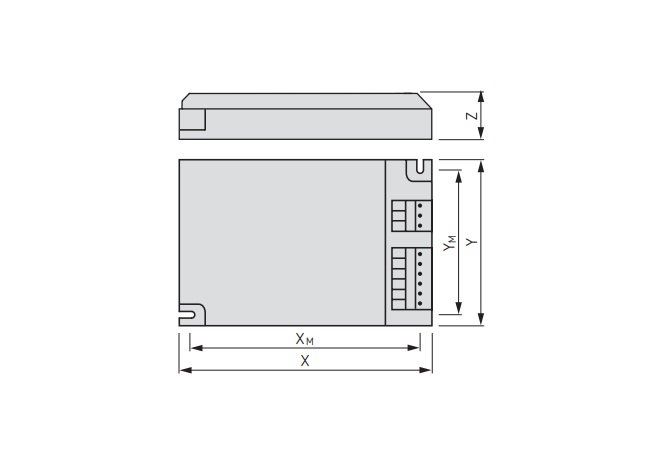

Dimensions & packaging
Length 123 mm
Width 79 mm
Height 21 mm
Weight 177 g
