BAG electronics GmbH

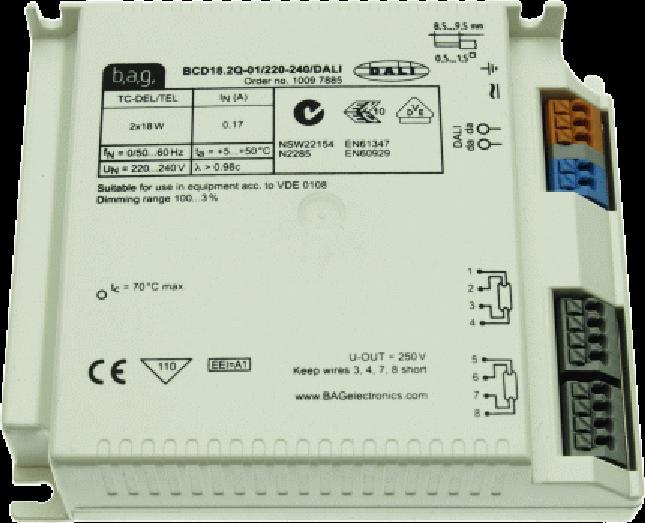

BAG EVG BCD18.2Q-01/220-240/DALI

Product number: 10097885
BAG electronics GmbH

BAG EVG BCD18.2Q-01/220-240/DALI

Product number: 10097885

Immediately available

Electronic control gears ECG for compact fluorescent lampsDim interface: DALIDim range 3...100% luminous flux Multi-Power technology for operation of different lamps and wattages on the same ECG Suitable for dimming amalgam lamps Electrode preserving warm start for maximum lamp life, even at increa ... Read more

€13.89


Content: 1 Stück

Product information "BAG EVG BCD18.2Q-01/220-240/DALI"

Electronic control gears ECG for compact fluorescent lamps
  • Dim interface: DALI
  • Dim range 3...100% luminous flux
  • Multi-Power technology for operation of different lamps and wattages on the same ECG
  • Suitable for dimming amalgam lamps
  • Electrode preserving warm start for maximum lamp life, even at increased switching frequency; starting time < 1.5 s
  • Cut-Off technology at 100% luminous flux: minimised heat current through electrodes during operation, for optimum light output and reduced power
  • Safety switch-off in case of abnormal lamp operation, e. g. defective electrode and end of lamp life; tested acc. to EN 61347-2-3 + Test 2
  • Constant lamp output independent of mains voltage fluctuations
  • Automatic restart after lamp replacement
  • Suitable for direct current operation and emergency lighting installations; complies with requirements for emergency lighting according to EN 61347- 2-3/J
  • Quick restart of lamps after short power disruptions
  • Energy efficiency EEI=A1
  • Nominal service life: 50.000 h with failure rate of ≤ 10% and operation at tc=tc,max
Electrical data
number of channels: 2
energy efficiency index: A1
rated voltage: 220-240 V
lifetime: 50000 h
system power: 18 W
Casing
max housing temperature (tc-max): 70 °C
protection type: IP20
environment temperature from: 5 °C
environment temperature to: 50 °C
Photometric data
application: indoor
dimmable: yes
interface: DALI
Logistic data
item category: electronic ballasts
Dimensions & packaging
Length 123 mm
Width 102 mm
Height 33 mm
Weight 246 g
