Adels Contact Socket Plug flat IP20/40 AC 166 GSTF/315 white - 162453
Adels Contact Socket Plug flat IP20/40 AC 166 GSTF/315 white - 162453
Immediately available
€0.98
Prices incl. VAT plus shipping costs net €0.82
Product information "Adels Contact Socket Plug flat IP20/40 AC 166 GSTF/315 white - 162453"
Connector for 3-pin connection wires
The white contact socket plug for 3-pole connection wires by Adels serves as socket version for screw mounting. It has a nominal cross-section of 2.5 mm2 and a cable diameter of 7.5 mm (min.) / 8.5 mm (max.). The nominal voltage is 250 V; the nominal current is 20.0 A.
IP20 / IP40 protection

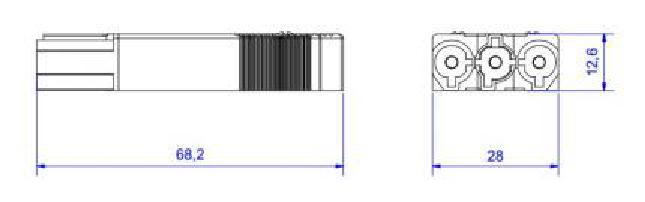

The flat connector has the dimensions 68 x 28 x 13 mm. It has IP20 protection and, when plugged in, IP40 protection.
Downloads & Documents
Datenblatt-Adels-Contact-Steckverbinder-flach-IP20-40-AC-166-GSTF-315-162453-weiss_1592170703_3
Certificate-CSA-Adels-Contact-Socket-Plug-flat-IP20-40-AC-166-GSTF-315-162453-white_1592170703_4
Datasheet-Adels-Contact-Socket-Plug-flat-IP20-40-AC-166-GSTF-315-162453-white_1592170703_5
Zertifikat-CSA-Adels-Contact-Steckverbinder-flach-IP20-40-AC-166-GSTF-315-162453-weiss_1592170703_6
Zertifikat-VDE-Adels-Contact-Steckverbinder-flach-IP20-40-AC-166-GSTF-315-162453-weiss_1592170703_7
Declaration-of-Confirmity-Adels-Contact-Socket-Plug-flat-IP20-40-AC-166-GSTF-315-162453-white_1592170703_8
Certificate-UL-Adels-Contact-Socket-Plug-flat-IP20-40-AC-166-GSTF-315-162453-white_1592170703_9
Konformitaetserklaerung-Adels-Contact-Steckverbinder-flach-IP20-40-AC-166-GSTF-315-162453-weiss_1592170703_10
Electrical data
| number of channels: | 1 |
|---|---|
| operating frequency: | 0/50-60 Hz |
| rated voltage: | 250 V |
| terminal type: | screw terminal |
Casing
| ballproof: | no |
|---|---|
| fire protection: | V2 |
| form type: | linear |
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20/40 |
| material: | brass |
| mounting: | universal mounting |
| environment temperature to: | 70 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| inclusive lamp: | no |
| sensor type: | no |
Logistic data
| item category: | installation materials |
|---|
Dimensions & packaging
| EAN | 4028012106967 |
|---|---|
| Length | 68 mm |
| Width | 28 mm |
| Height | 13 mm |
