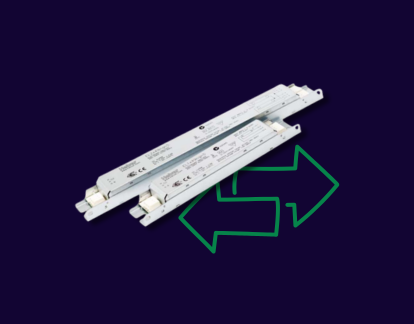

Replacing an Electronic Ballast: Step-by-Step Guide

Ballast failed, fluorescent lamp flickering or not striking at all? In most cases, the electronic ballast is the culprit. This guide walks you through how to replace a ballast correctly, and when it makes more sense to switch to LED instead.

Contents

How to tell if your ballast has failed

Before you replace the ballast, a quick fault diagnosis is worth doing. Not every flicker points to the ballast – sometimes the tube itself is the issue. These symptoms clearly indicate a faulty electronic ballast:

  • Persistent flickering even after fitting a new tube
  • Lamp fails to strike at all, or only strikes after several attempts
  • Noticeably delayed starting that wasn't there before
  • Audible humming or buzzing from inside the luminaire housing
  • Lamp runs but at significantly reduced light output

Quick check: swap the tube for a known-good replacement. If the problem continues, the ballast is the likely cause.


Replace the ballast or switch to LED?

A ballast failure is also an opportunity to reassess. Here's a straightforward comparison to help you decide:

Replace ballast Switch to LED
Cost Low (from ~€15) Higher (LED tube + possible rewiring)
Effort Low – like-for-like swap Medium – wiring modification required
Energy consumption Unchanged Significantly reduced (up to –50%)
Service life Ballast: 10,000–50,000 h LED tube: up to 50,000 h
Best when Luminaire is in good condition, budget is tight Luminaire is old, energy costs are a factor

For older luminaires in commercial or industrial settings, switching to LED almost always pays off. Our guide Replacing fluorescent lamps with LED covers everything you need to know.


Preparation: tools and replacement part

Before you start, make sure you have everything to hand:

  • Screwdriver (crosshead and flathead)
  • Voltage tester – mandatory, not optional
  • Wire stripper
  • Insulating tape or ferrules
  • Correct replacement ballast (see Step 3 for selection)
Electrician's tip: Photograph the existing wiring before you disconnect a single terminal. That photo is your wiring reference – especially useful if the nameplate on the old ballast is no longer legible.

Step 1: Disconnect the power supply

Switch off the relevant circuit at the distribution board – don't just operate the light switch. Secure the breaker with a warning label to prevent accidental re-energisation. Then use your voltage tester to confirm directly at the luminaire that no voltage is present. Only then proceed.


Step 2: Remove the failed ballast

Open the luminaire housing to access the ballast – on most T8 batten luminaires, this means removing the tubes and taking off the cover. Photograph the wiring now. Then disconnect all terminals and remove the ballast from its mounting. Note down the details from the nameplate: wattage, number of lamps, manufacturer, part number.


Step 3: Select the correct replacement

The replacement ballast must match your existing installation exactly. The key parameters are:

  • Tube type: T8 (26 mm diameter) or T5 (16 mm) – these are not interchangeable
  • Wattage: e.g. 1 × 36 W, 2 × 18 W, 1 × 58 W
  • Dimming: dimmable luminaires require a dimmable ballast (DALI or 1–10 V)
  • Protection rating: IP rating matters for damp or outdoor locations

Find the right electronic ballasts in the WATT24 shop, filtered by tube type and wattage.


Step 4: Connect the new ballast

Mount the new ballast in the housing. Wire it up using your photo and the included wiring diagram. Pay attention to:

  • Correct L/N assignment – do not swap live and neutral
  • Firm seating on all terminals – loose connections cause overheating
  • Cable strain relief where provided
  • Ferrules on flexible stranded conductors

Step 5: Test the luminaire

Close the housing, refit the tubes and switch the circuit back on. A correctly installed electronic ballast will strike the lamp within a few seconds, without flickering. If the lamp still flickers or fails to light: switch off immediately and recheck the wiring. A swapped or loose terminal is the most common cause.


Not sure which ballast you need? We'll help.

Free advice from the WATT24 lighting experts

Can't find the right ballast in the catalogue, or unsure about dimming compatibility or switching to an LED driver? Our lighting specialists know the full range from Tridonic, OSRAM, Philips, Helvar, TCI and Lunatone – and will find the right solution for your luminaire, regardless of brand.

  • Cross-referencing to compatible ballast alternatives and LED drivers
  • High availability – including older and discontinued types
  • Individual, brand-independent advice

Get in touch


FAQs: electronic ballast replacement

How do I know if my electronic ballast has failed?
Common signs include persistent flickering, failure to strike, or significantly delayed starting – even with a new tube. An audible hum from inside the luminaire can also indicate a faulty ballast. Quick check: swap the tube. If the problem persists, the ballast is the likely cause.
How much does an electronic ballast cost?
Basic T8 ballasts start at around €15–20. Dimmable versions or multi-lamp units typically range from €40 to €80, depending on wattage, number of lamp positions and dimming capability.
Can I replace a ballast myself?
Ballast replacement must be carried out by a qualified electrician. Work on fixed electrical installations requires appropriate professional training and safe working practices when dealing with mains voltage.
Replace the ballast or switch to LED – which makes more sense?
Replacing the ballast makes sense when the luminaire is in good condition and you need a quick, low-cost fix. Switching to LED is the better choice for older luminaires or where energy savings are a priority – LED tubes use significantly less power and last much longer.
Which ballast is compatible with my fluorescent lamp?
The replacement must match the tube wattage (e.g. 18 W, 36 W, 58 W), tube type (T8 or T5) and number of lamp positions. Dimmable luminaires need a dimmable ballast. All specifications are on the nameplate of the original unit.
What is the difference between an electronic ballast and a magnetic ballast?
A magnetic ballast uses a choke and starter – older technology with higher energy consumption and visible flicker at mains frequency. An electronic ballast operates at high frequency, provides flicker-free starting, runs cooler and is significantly more efficient. Electronic ballasts have largely replaced magnetic ones in new installations.
