Vossloh Schwabe LED driver EDXd 170/24.081 220-240V – 187058.02
Vossloh Schwabe Deutschland GmbH
Vossloh Schwabe LED driver EDXd 170/24.081 220-240V – 187058.02
Product number:
187058.02
Immediately available
€35.70
Content:
1 Stück
Prices incl. VAT plus shipping costs net €30.00
Product information "Vossloh Schwabe LED driver EDXd 170/24.081 220-240V – 187058.02"
Product features
- Linear casing shape
Functions
- The required current output can be chosen via DALI or 1–10 V
Electrical features
- Mains voltage: 220–240 V ±10%
- Mains frequency: 50–60 Hz
- DC operation: 176–264 V, 0 Hz
- Push-in terminals: 0.2–1.5 mm²
- Power factor at full load: 0.95
- Secondary side switching of LED modules is not allowed
Dimming
- PWM dimming at 1 kHz
- Optional analogue dimming via 1–10 V or DALI interface
- Dimming also possible with resistor (100 kΩ) nat 1–10 V interface
- Dimming range: 1 to 100%
Downloads & Documents
Electrical data
| output voltage: | 24 |
|---|---|
| operating frequency: | 50-60 Hz |
| rated voltage: | 220-240 V |
| conformity: | CE |
| lifetime: | 50000 h |
Casing
| fire protection: | no |
|---|---|
| form type: | linear |
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimming range to: | 100 % |
|---|---|
| dimming range from: | 1 % |
| color: | white |
| lamp type: | LED |
| interface: | NFC |

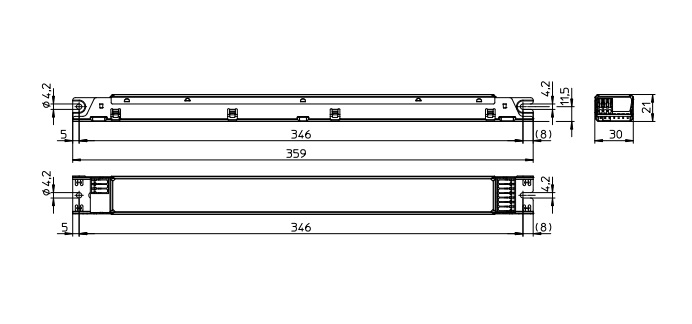

Dimensions & packaging
| Length | 359 mm |
|---|---|
| Width | 30 mm |
| Height | 21 mm |
