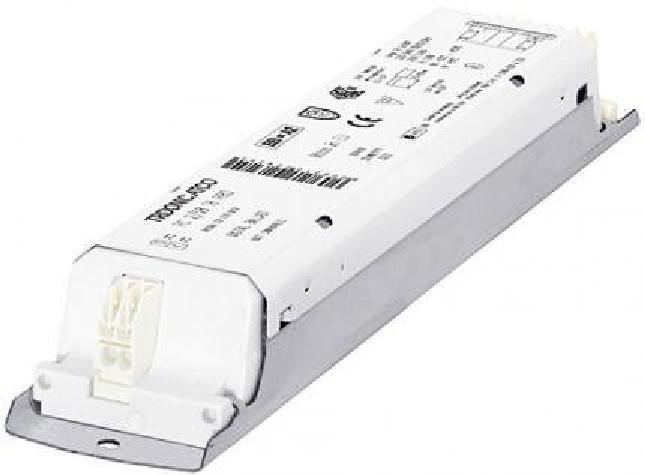

Tridonic PC 1/70 T8 PRO - 22176171
Immediately available
€17.46
(34% saved)
€11.50
Content:
1 Stück
Prices incl. VAT plus shipping costs net €9.66
Product information "Tridonic PC 1/70 T8 PRO - 22176171"
For emergency lighting systems as per EN 50172
Temperature protection as per EN 61347-2-3 C5e
Large temperature range (for values see table)
Automatic start after replacement of defective lamps
Constant luminous flux irrespective of fluctuations in mains voltage
For luminaires of protection class I and protection class II
Insulation Displacement Connection (IDC) terminal for rapid automatic or manual wiring
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Nominal life-time up to 50,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
Safety shutdown of defective lamps and at end of lamp life
CELMA Energy Efficiency Index A2
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Temperature protection as per EN 61347-2-3 C5e
Large temperature range (for values see table)
Automatic start after replacement of defective lamps
Constant luminous flux irrespective of fluctuations in mains voltage
For luminaires of protection class I and protection class II
Insulation Displacement Connection (IDC) terminal for rapid automatic or manual wiring
Intelligent Voltage Guard (overvoltage indication and undervoltage shutdown)
Nominal life-time up to 50,000 h (at ta 50 °C with a failure rate ≤ 0.2 % per 1,000 h)
Safety shutdown of defective lamps and at end of lamp life
CELMA Energy Efficiency Index A2
For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
Downloads & Documents
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A3 |
| rated voltage: | 220-240 V |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| protection class: | I/II |
| environment temperature from: | -25 °C |
| environment temperature to: | 55 °C |
Photometric data
| dimmable: | no |
|---|---|
| color: | white |
Logistic data
| item category: | electronic ballasts |
|---|

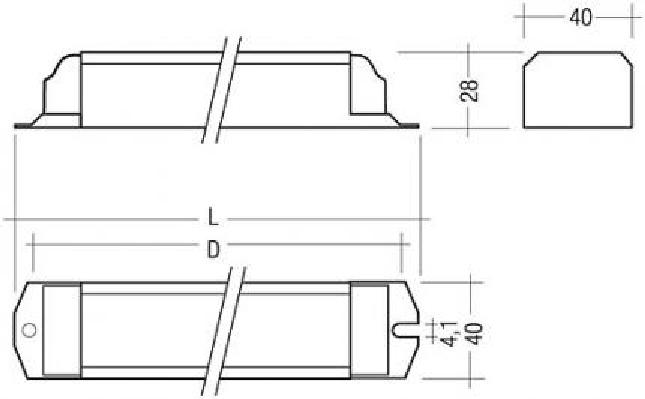

Dimensions & packaging
| EAN | 9006210262994 |
|---|---|
| Length | 234 mm |
| Width | 40 mm |
| Height | 28 mm |
| Weight | 202 g |
