Tridonic luminaire accessories contact protection LINEAR COVER SY Diffuse 1500mm – 28000436
Tridonic GmbH & Co KG
Tridonic luminaire accessories contact protection LINEAR COVER SY Diffuse 1500mm – 28000436
Product number:
28000436
Shipping in 28 day(s)
€12.71
Content:
1 Stück
Prices incl. VAT plus shipping costs net €10.68
Product information "Tridonic luminaire accessories contact protection LINEAR COVER SY Diffuse 1500mm – 28000436"

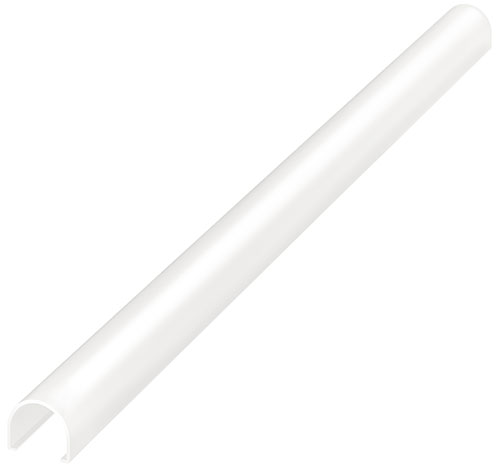

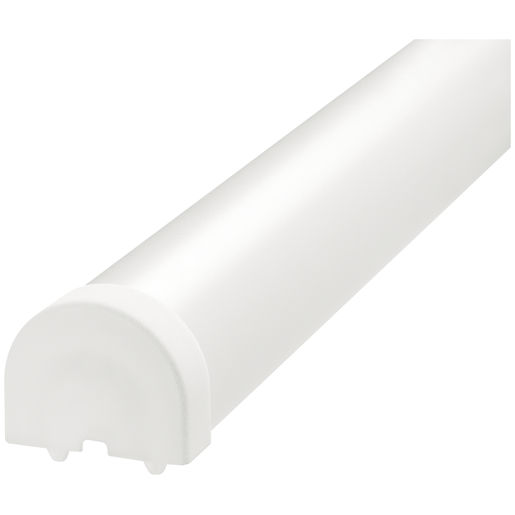

- LINEAR COVER for LLE
- Protection against direct touch for non-SELV applications (recommendation LLE 20: use all fixing points and screwed Endcap, recommendation LLE 24: use all fixing points)
- Fast snap on mounting on to LLE 20: with M4 screws and plastic washers, to LLE 24: with clips or plastic washers
- High transmission: transparent, semi-transparent and diffuse
- Material: PMMA
- Tolerances: ± 1 mm for 597 mm length (ends finished), + 10 mm from length 1,150 mm (ends raw)
Downloads & Documents
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| protection type: | IP20 |
| material: | PMMA |
| mounting: | surface mounting |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| inclusive lamp: | no |
| sensor type: | no |
| solar panel: | no |

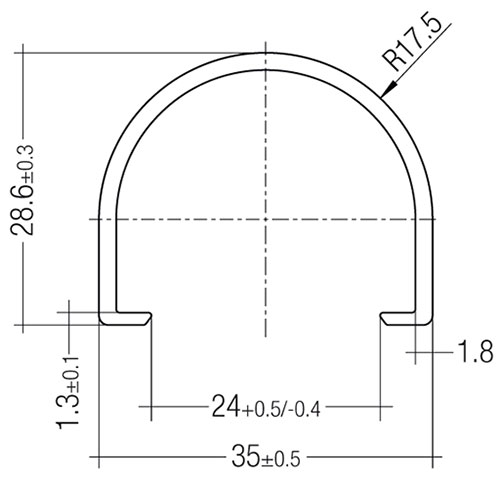

Dimensions & packaging
| Length | 1500 mm |
|---|---|
| Width | 35 mm |
| Height | 28.6 mm |
| Weight | 257 g |
