Tridonic Light management Build-In DALI2-Msensor G3 SFI 30 PIR 5DPI WH - 28002384
Tridonic Light management Build-In DALI2-Msensor G3 SFI 30 PIR 5DPI WH - 28002384
Shipping in 5 day(s)
€66.59
Prices incl. VAT plus shipping costs net €55.96
Product information "Tridonic Light management Build-In DALI2-Msensor G3 SFI 30 PIR 5DPI WH - 28002384"
DALI2 multi-sensor for luminaire installation
The Tridonic DALI2 multisensor "DALI2-Msensor G3 SFI 30 PIR 5DPI WH" is a sensor developed to work with the latest DALI specification. It is suitable for monitoring ambient light and motion detection. There is also a shutter to prevent motion detection in one direction and a remote control interface allowing infrared remote control interaction. The sensor is suitable for luminaire installation.
Parameters individually adjustable
The parameters can be adjusted individually via a configuration software. Power is supplied directly via the DALI line. The IP20-protected housing is made of white polycarbonate. Small dimensions allow a simple and inconspicuous integration in luminaires. The wide range of accessories allows an extended application range. Tridonic offers a 5-year warranty on the DALI2 multisensor.
Downloads & Documents
Declaration-of-Conformity-Tridonic-Light-management-Build-In-DALI2-MSensor-G3-SFI-30-PIR-5DPI-WH-28002384_1592176504_2
Konformitaetserklaerung-Tridonic-Lichtmanagement-Einbau-DALI2-MSensor-G3-SFI-30-PIR-5DPI-WH-28002384_1592176504_3
Datenblatt-Tridonic-Lichtmanagement-Einbau-DALI2-MSensor-G3-SFI-30-PIR-5DPI-WH-28002384_1592176496_5
ENEC-Zertifikat-Tridonic-Lichtmanagement-Einbau-DALI2-MSensor-G3-SFI-30-PIR-5DPI-WH-28002384_1592176496_6
ENEC-Certificate-Tridonic-Light-management-Build-In-DALI2-MSensor-G3-SFI-30-PIR-5DPI-WH-28002384_1592176496_7
Electrical data
| through wiring: | no |
|---|---|
| rated voltage: | DALI bus V |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| max housing temperature (tc-max): | 60 °C |
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | yes |
|---|---|
| detection angle: | 84 ° |
| color: | white |
| sensor type: | passive infrared |
| solar panel: | no |

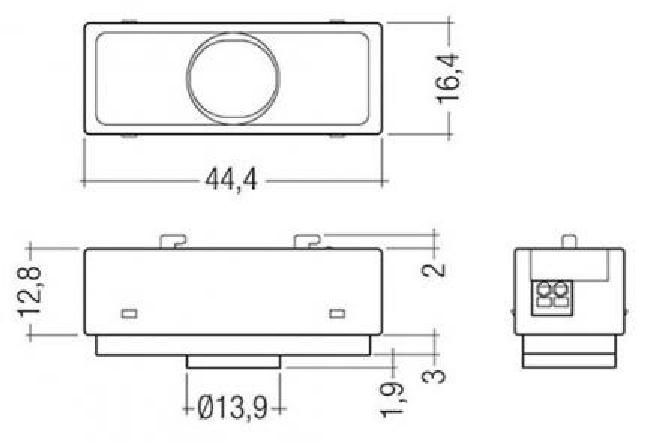

Dimensions & packaging
| EAN | 9006210672502 |
|---|---|
| Length | 44 mm |
| Width | 16 mm |
| Height | 20 mm |
| Weight | 10 g |
