Tridonic LED ECG LC 75W 100-400mA 1-10V lp EXC - 28001807
Tridonic LED ECG LC 75W 100-400mA 1-10V lp EXC - 28001807
Immediately available
€24.59
Prices incl. VAT plus shipping costs net €20.66
Product information "Tridonic LED ECG LC 75W 100-400mA 1-10V lp EXC - 28001807"
With the LC 75W 100-400mA 1-10V lp EXC from its EXCITE range, Tridonic offers a dimmable 1-10V non-SELV constant current driver for luminaire installation. The output current can be adjusted via ready2mains programmer or via I-select 2 plugs in 1mA steps between 100mA and 400mA. The maximum output power is 75 W. Thanks to the achieved efficiency of up to 94% and the dimming function, you benefit from best energy savings.
The LED ECG is suitable for lamps of protection class I and protection class II as well as for emergency lighting systems according to EN 50172. It is also equipped with IP20 protection. It has a low profile metal casing with a white cover.
For dimming, the driver has a 1-10 V interface. The dimming range is between 10% and 100% (depending on load).
The LED driver is protected against over-temperature, short-circuit, overload and no-load. The lifetime is up to 100,000 hours. Tridonic offers a 5-year guarantee on this ECG.
An ideal application area is the linear and area lighting in office applications.
Electrical data
| output current: | 100, 125, 150, 175, 200, 225, 250, 275, 300, 325, 350, 375, 400 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 80 °C |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | I/II |
| environment temperature from: | -25 °C |
| environment temperature to: | 65 °C |
Photometric data
| color: | white |
|---|---|
| interface: | 1-10 V |
Logistic data
| item category: | LED drivers |
|---|

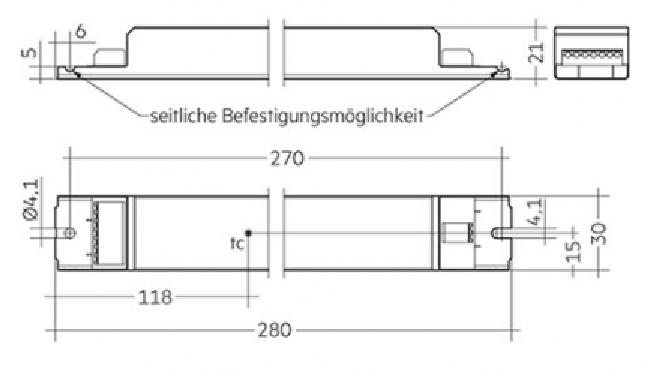

Dimensions & packaging
| EAN | 9006210621159 |
|---|---|
| Length | 280 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 189 g |
TRIDONIC
Tridonic Deutschland GmbH
Edisonalle 1
89231 Neu-Ulm
DE
BestellungDE@tridonic.com
www.tridonic.com/en/int
