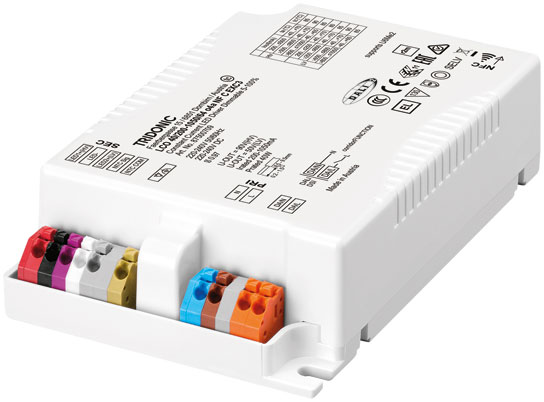

Tridonic LED-Driver LCO 40W 200–1050mA 64V one4all NFC C EXC3 - 28003167
Tridonic GmbH & Co KG
Tridonic LED-Driver LCO 40W 200–1050mA 64V one4all NFC C EXC3 - 28003167
Product number:
28003167
Immediately available
€50.88
Prices incl. VAT plus shipping costs net €42.76
Product information "Tridonic LED-Driver LCO 40W 200–1050mA 64V one4all NFC C EXC3 - 28003167"
- NEW: lumDATA (DALI-2 part 251, 252 and 253)
- Dimmable outdoor constant current LED driver for luminaire installation
- Dimming range 5 - 100 % (min. 10 mA)
- For luminaires in protection class I and protection class II
- Temperature protection in accordance with EN 61347-2-13 C5e
- SELV for output voltage < 120 V DC
- Output current adjustable between 200 - 1,050 mA with NFC, DALI or ready2mains programmer
- Max. Output power 40 W
- Up to 91 % efficiency
- Low power consumption in standby < 0.16 W
- Art. No. 28003167: Made in Europe, Art. No.: 87500709: Made in China.
- Nominal service life up to 100,000 h and 8-year guarantee (for conditions see https://www.tridonic.com/herstellergarantiebedingungen)
Downloads & Documents
Electrical data
| output current: | 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050 |
|---|---|
| operating mode: | constant current |
