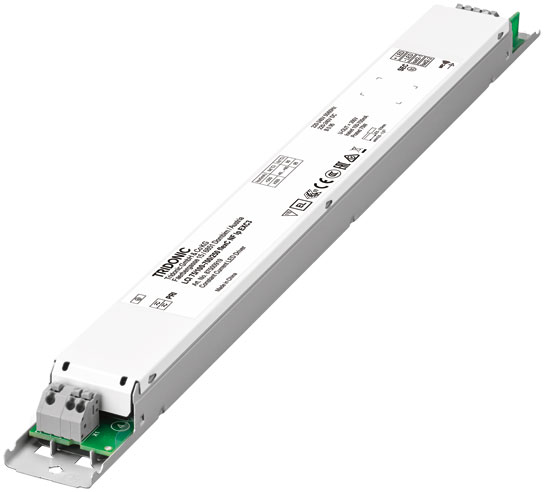

Tridonic LED-Driver LCI 75W 100-700mA 250V flexC NF lp EXC3 (INDUSTRY) - 87500919

Tridonic GmbH & Co KG

Tridonic LED-Driver LCI 75W 100-700mA 250V flexC NF lp EXC3 (INDUSTRY) - 87500919

Product number: 87500919

Immediately available

€37.08


Prices incl. VAT plus shipping costs net €31.16

Product information "Tridonic LED-Driver LCI 75W 100-700mA 250V flexC NF lp EXC3 (INDUSTRY) - 87500919"

Product description
  • Constant current built-in LED driver, particularly suitable for industrial applications in tough environments with elevated ambient temperatures such as cold warehouses or factories
  • Adjustable output current between 100 and 700 mA
  • Max. output power 75 W
  • Suitable for mains voltage peaks (burst/surge) up to 4 kV
  • Expanded temperature range of -40 ... +80 °C
  • Nominal lifetime up to 120,000 h (at ta 65 °C)
  • 8 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
  • White slim metal casing
  • Type of protection IP20
Interfaces
  • Near field communication (NFC)
  • Terminal blocks: 45° push terminals
Functions
  • Adjustable output current in 1-mA-steps (I-SELECT 2 resistor or NFC)
  • Intelligent Temperature Guard (overtemperature protection)
  • Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
  • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
  • Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
  • Flexible configuration via companionSUITE (NFC) or I-SELECT 2
  • Application-oriented operating window for maximum compatibility
  • Extended vibration damping
  • Increased safety through robust design and advanced testing under extreme test conditions
  • High reliability through the selection of exclusive components
Typical applications
  • For linear/area lighting in industry applications
EAN/UPC: 9006210723686
Country of Origin: CN
Customs tariff No.: 85044095
Electrical data
output current: 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700
operating mode: constant current
