Tridonic LED-Driver LCA 75W 250-550mA one4all lp PRE - 28001250

Tridonic GmbH & Co KG

Tridonic LED-Driver LCA 75W 250-550mA one4all lp PRE - 28001250

Product number: 28001250

Immediately available

€46.79


Content: 1 Stück

Prices incl. VAT plus shipping costs net €39.32

Product information "Tridonic LED-Driver LCA 75W 250-550mA one4all lp PRE - 28001250"

DALI-2 dimmable 75W LED driver

The DALI-2 dimmable constant current LED driver LCA 75W 250-550mA one4all lp PRE from the Premium series by Tridonic is suitable for installation in luminaires of protection class I and II. It has a nominal power of 75 watts. The efficiency is up to 92%; the power consumption in standby is less than 0.15 W - so you save energy! Ideal applications include linear and area lighting in office applications.

The LED driver has a Constant Light Output function (CLO) and power-up fading at AC. The integrated service monitor logs certain events. An application-oriented operating window ensures maximum compatibility.

Adjustable output current

Via ready2mains-Programmer, I-SELECT 2 Plugs- or DALI-2 the LED ECG is adjustable between 250 and 550 mA. It can also be configured and dimmed via the mains using ready2mains. Further dimming possibilities in a range of 1 - 100% are offered by the one4all interface (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION). In addition, there are 0 ° push terminals.

The Tridonic Premium constant current LED driver has an IP20 protected low profile metal caing with white cover. It is protected against overtemperature, short circuit, overload, open circuit and at the input voltage range. Additionally, it has a reduced surge current amplification. The LED driver is also suitable for emergency lighting systems according to EN50172. The lifetime is up to 100,000 h. Tridonic offers a 5-year warranty on the LED ECG.


Electrical data
output current: 250, 275, 300, 325, 350, 375, 400, 425, 450, 475, 500, 525, 550
operating mode: constant current
rated voltage: 220-240 V
lifetime: 100000 h
Casing
max housing temperature (tc-max): 80 °C
protection type: IP20
mounting: Installation
environment temperature from: -25 °C
environment temperature to: 60 °C
Photometric data
color: white
interface: DSI
Logistic data
item category: LED drivers

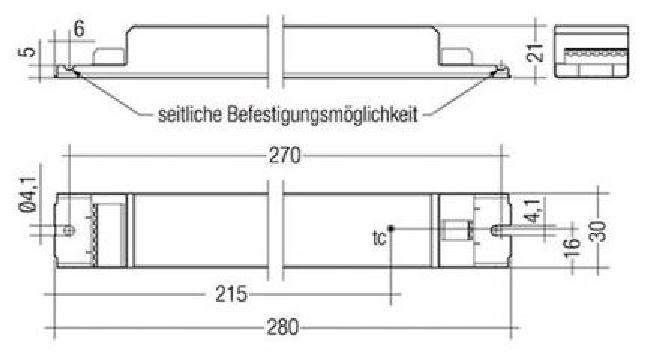

Dimensions & packaging
EAN 9006210563794
Length 280 mm
Width 30 mm
Height 21 mm
