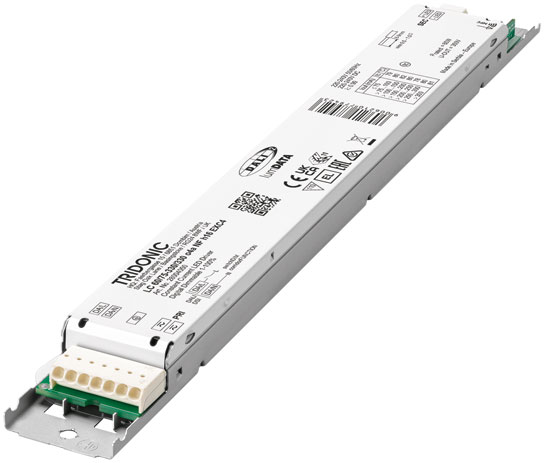

Tridonic LED-Driver LC 60W 75–330mA 330V o4a NFC h16 EXC4 - 28004050
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 60W 75–330mA 330V o4a NFC h16 EXC4 - 28004050
Product number:
28004050
Immediately available
€36.27
Prices incl. VAT plus shipping costs net €30.48
Product information "Tridonic LED-Driver LC 60W 75–330mA 330V o4a NFC h16 EXC4 - 28004050"
Product description
- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Dimmable built-in constant current LED driver
- Dimming range 1 to 100 %
- For luminaires of protection class I and protection class II
- Adjustable output current between 75 and 330 mA
- Max. output power 60 W
- Up to 94.3 % efficiency
- Power input on stand-by < 0.14 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Low profile metal casing with white cover
- Only 16 mm housing height
- Type of protection IP20
Interfaces
- Near field communication (NFC)
- one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
- Terminal blocks: 0° push terminals
Functions
- Adjustable output current in 1-mA-steps (NFC, DALI)
- Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
- Constant light output function (eCLO)
- Power-up fading at AC
- Switch off the driver with fade2zero
- Protective features (overtemperature, short-circuit, overload, no-load)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE
- Support NFC multiple programming (full carton box)
- Application-oriented operating window for maximum compatibility
- Best energy savings due to low stand-by losses and high efficiency
- Reliability proven by lifetime up to 100,000 h and 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Typical applications
- For linear/area lighting in office applications
EAN/UPC: 9006210779423
Country of Origin: RS
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 75, 100, 150, 200, 250, 300, 330 |
|---|---|
| operating mode: | constant current |

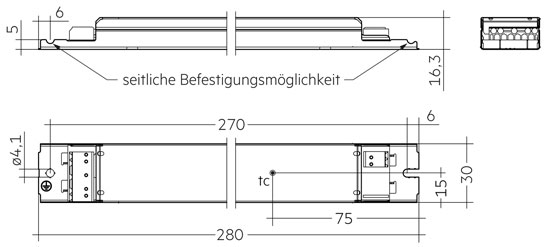

Dimensions & packaging
