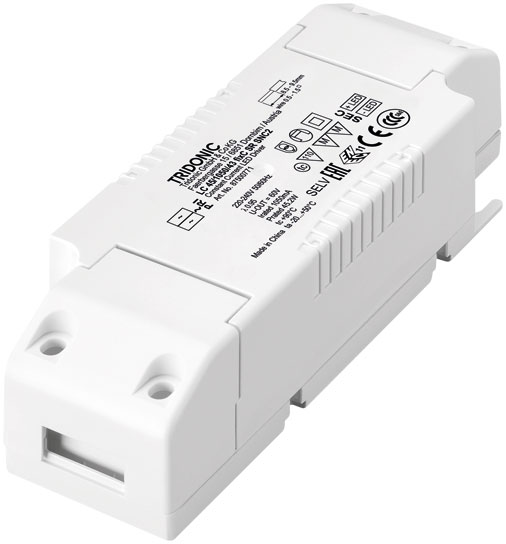

Tridonic LED-Driver LC 45W 1050mA fixC SR SNC2 - 87500771
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 45W 1050mA fixC SR SNC2 - 87500771
Product number:
87500771
Immediately available
€15.17
Prices incl. VAT plus shipping costs net €12.75
Product information "Tridonic LED-Driver LC 45W 1050mA fixC SR SNC2 - 87500771"
Product description
- Independent driver with strain-relief housing
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
- Temperature protection as per EN 61347-2-13 C5e
- Output current 1,050 mA
- Nominal lifetime up to 50,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
- Push-in terminals
- 2 separate strain relief parts for input and output cables with highly robust clamps
Functions
- Overload protection
- Short-circuit protection
- No-load protection
- No output current overshoot at mains on/off
- Burst protection voltage 1 kV
- Surge protection voltage 1 kV (L to N)
- Surge protection voltage 2 kV (L/N to earth)
Typical applications
- For spot light and downlight in retail and hospitality applications
- For panel light and area light in office and education application
EAN/UPC: 9006210683119
Country of Origin: CN
Customs tariff No.: 85044083
Downloads & Documents
Electrical data
| output current: | 1050 |
|---|---|
| operating mode: | constant current |

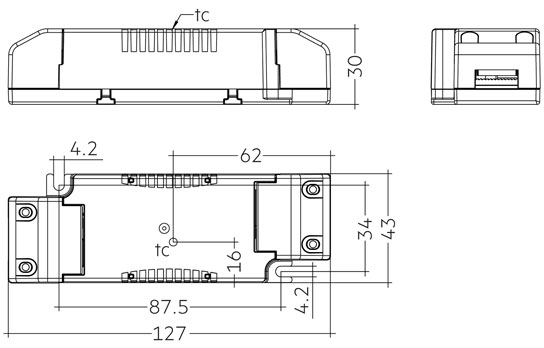

Dimensions & packaging
