Tridonic LED-Driver LC 38W 650–1050mA o4a NFC SC EXC3 - 28004043
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 38W 650–1050mA o4a NFC SC EXC3 - 28004043
Product number:
28004043
Shipping in 5 day(s)
€45.52
Prices incl. VAT plus shipping costs net €38.25
Product information "Tridonic LED-Driver LC 38W 650–1050mA o4a NFC SC EXC3 - 28004043"
Product description
- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
- Can be either used build-in or independent with clip-on strain-relief (see accessory)
- Dimming range 1 to 100 % (min. 5 mA)
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current between 650 – 1,050 mA via NFC or DALI
- Max. output power 38 W
- Up to 88 % efficiency
- Lowest power input on stand-by < 0.4 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
Interfaces
- Near field communication (NFC)
- one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION)
- Terminal blocks: 45° push terminals
Functions
- Adjustable output current in 1-mA-steps (NFC, DALI)
- Enhanced constant light output function (eCLO)
- Protective features (overtemperature, short-circuit, overload, no-load)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE (NFC, DALI)
- Application-oriented operating window for maximum compatibility
- Best energy savings due to low stand-by losses and high efficiency
- In-field programming possible after installation with NFC interface
Typical applications
- For downlight, spotlight and decorative applications
EAN/UPC: 9006210778921
Country of Origin: RS
Customs tariff No.: 85044083
Downloads & Documents
Electrical data
| output current: | 650, 750, 850, 950, 1050 |
|---|---|
| operating mode: | constant current |

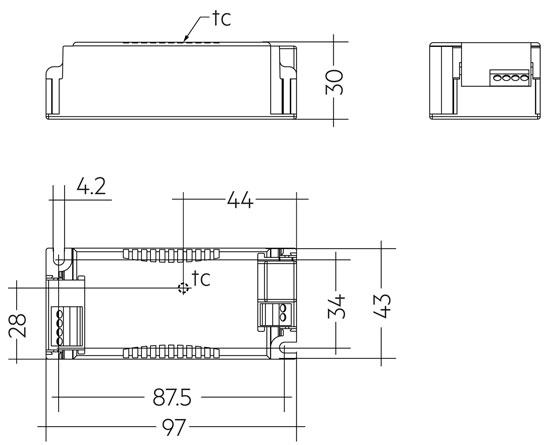

Dimensions & packaging
