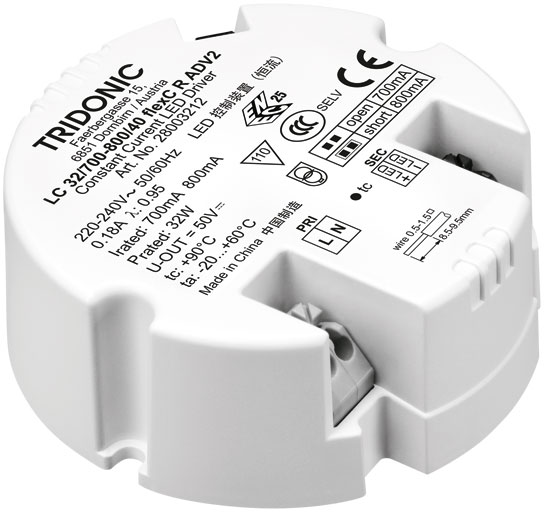

Tridonic LED-Driver LC 32W 700-800mA flexC R ADV2 - 28003212
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 32W 700-800mA flexC R ADV2 - 28003212
Product number:
28003212
Immediately available
€18.68
Prices incl. VAT plus shipping costs net €15.70
Product information "Tridonic LED-Driver LC 32W 700-800mA flexC R ADV2 - 28003212"
Product description
- Fixed output built-in LED driver
- Constant current LED driver
- For luminaires of protection class I and protection class II
- Adjustable output current 700 or 800 mA
- Up to 90 % efficiency
- For ambient temperatures up to 60 °C
- Nominal lifetime up to 50,000 h (at ta 50 °C)
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
Functions
- Overload protection
- Short-circuit protection
- No-load protection
Typical applications
- For spot light, track light and wall light in retail and hospitality application
EAN/UPC: 9006210731025
Country of Origin: CN
Customs tariff No.: 85044083
Downloads & Documents
Electrical data
| output current: | 700, 800 |
|---|---|
| operating mode: | constant current |

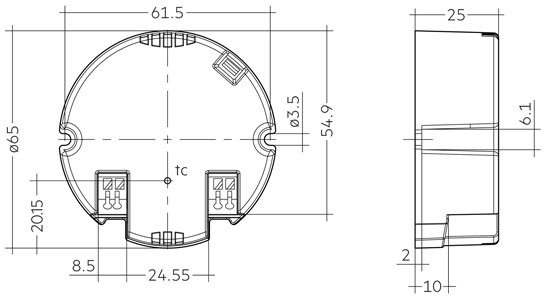

Dimensions & packaging
