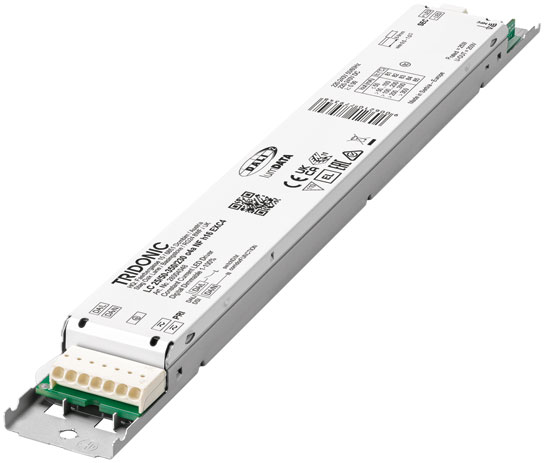

Tridonic LED-Driver LC 25W 50–350mA 230V o4a NFC h16 EXC4 - 28004048

Tridonic GmbH & Co KG

Tridonic LED-Driver LC 25W 50–350mA 230V o4a NFC h16 EXC4 - 28004048

Product number: 28004048

Immediately available

€35.15


Prices incl. VAT plus shipping costs net €29.54

Product information "Tridonic LED-Driver LC 25W 50–350mA 230V o4a NFC h16 EXC4 - 28004048"

Product description
  • NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
  • Dimmable built-in constant current LED driver
  • Dimming range 1 to 100 %
  • For luminaires of protection class I and protection class II
  • Output current adjustable between 50 – 350 mA
  • Max. output power 25 W
  • Up to 91.1 % efficiency
  • Power input on stand-by < 0.14 W
  • Nominal lifetime up to 100,000 h
  • 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
  • Low profile metal casing with white cover
  • Only 16 mm housing height
  • Type of protection IP20
Interfaces
  • Near field communication (NFC)
  • one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
  • Terminal blocks: 0° push terminals
Functions
  • Adjustable output current in 1-mA-steps (NFC, DALI)
  • Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
  • Constant light output function (eCLO)
  • Power-up fading at AC
  • Switch off the driver with fade2zero
  • Protective features (overtemperature, short-circuit, overload, no-load)
  • Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
  • Flexible configuration via companionSUITE
  • Support NFC multiple programming (full carton box)
  • Application-oriented operating window for maximum compatibility
  • Best energy savings due to low stand-by losses and high efficiency
  • Reliability proven by lifetime up to 100,000 h and 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Typical applications
  • For linear/area lighting in office applications
EAN/UPC: 9006210779348
Country of Origin: RS
Customs tariff No.: 85044095
Electrical data
output current: 50, 100, 150, 200, 250, 300, 350
operating mode: constant current

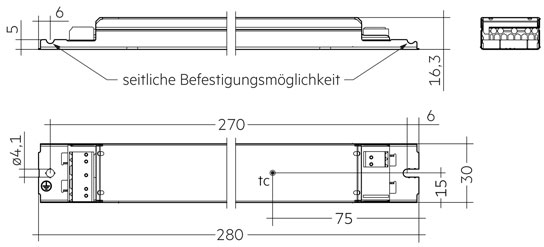

Dimensions & packaging

TRIDONIC
Tridonic Deutschland GmbH
Edisonalle 1
89231 Neu-Ulm DE

BestellungDE@tridonic.com

www.tridonic.com/en/int
