Tridonic LED-Driver LC 25/350-1050/50 bDW SC PRE2 - 28002413
Tridonic LED-Driver LC 25/350-1050/50 bDW SC PRE2 - 28002413
Immediately available
Accessories
Immediately available
Immediately available
€87.83
Prices incl. VAT plus shipping costs net €73.81
Product information "Tridonic LED-Driver LC 25/350-1050/50 bDW SC PRE2 - 28002413"
25W basicDIM Wireless dimmable LED ECG
The dimmable constant current LED driver LC 25/350-1050/50 bDW SC PRE2 from the Premium series fby Tridonic is suitable for installation in luminaires of protection class I and II. It has a nominal power of 25 watts. The power consumption in stand-by is <0.37 W, the efficiency up to 90% - so you save energy!
Output current adjustable
The LED driver automatically establishes a wireless communication network with up to 127 nodes. It can be dimmed in a range of 1 - 100% via basicDIM Wireless. The output current can be adjusted between 350 and 1050 mA via the ready2mains programmer and I-select 2 plugs. With the help of ready2mains, the LED ECG can also be configured via the network. In addition, 45 ° plug-in terminals are available.
The application-oriented operating window ensures maximum compatibility. In addition, the LED ECG has a constant light output function (CLO) and power-up fading at AC. The service monitor logs certain events. The case has IP20 protection and is made of white polycarbonate.
CASAMBI functionality: lighting control via app
The Tridonic basicDIM Wireless LED driver also has all the CASAMBI functionality: you can integrate it into any CASAMBI Bluetooth network and then conveniently control it via an app on your smartphone or tablet.
The constant current LED ECG is against overtemperature, short circuit, overload, open circuit and at the input voltage range. It also has a reduced surge current gain. It is suitable for emergency lighting systems according to EN50172. The nominal life is 100,000 hours. Tridonic offers a 5-year warranty.
You can download the CASAMBI app here for free:
Downloads & Documents
Declaration-of-Confirmity-Tridonic-LED-TreiberLC-25-350-1050-50-bDW-SC-PRE2-28002413_1592175864_3
Datenblatt-Tridonic-LED-Treiber-LC-25-350-1050-50-bDW-SC-PRE2-28002413_1592175864_4
ENEC-Certificate-Tridonic-LED-TreiberLC-25-350-1050-50-bDW-SC-PRE2-28002413_1592175864_5
Konformitaetserklaerung-Tridonic-LED-Treiber-LC-25-350-1050-50-bDW-SC-PRE2-28002413_1592175864_6
Datasheet-Tridonic-LED-TreiberLC-25-350-1050-50-bDW-SC-PRE2-28002413_1592175856_8
Electrical data
| output current: | 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| protection type: | IP20 |
|---|---|
| mounting: | Installation |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | basicDIM Wireless |
Logistic data
| item category: | LED drivers |
|---|

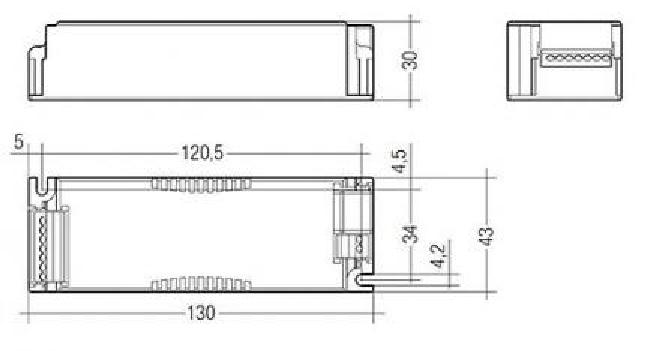

Dimensions & packaging
| EAN | 9006210665023 |
|---|---|
| Length | 130 mm |
| Width | 43 mm |
| Height | 30 mm |
