Tridonic LED-Driver LC 100W 24V SC SNC2 - 87501052
slide 3 of 2
Product information "Tridonic LED-Driver LC 100W 24V SC SNC2 - 87501052"
Product description
- Constant voltage LED driver
- Output voltage 24 V
- Max. output power 100 W
- Dimmable via external PWM LED dimmers attached on output side
- For luminaires of protection class I and protection class II
- The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
- Nominal lifetime up to 50,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Typical applications
- Cove lighting, facade accent lighting, ceiling integration, refrigerated displays
Technical details
- 24 V, 100 W

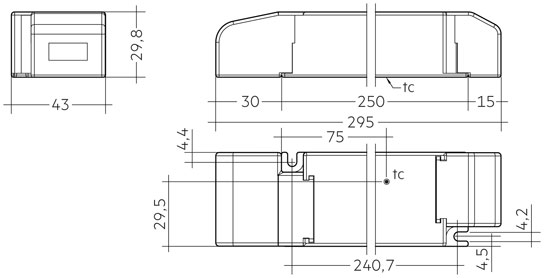

- Small design (295 x 43 x 30 mm) with stretched-compact strain relief
- Very good THD performance in wide load range < 20 %
- Output LF voltage ripple (< 120 Hz) ± 1.5 %
- Power input on stand-by < 0.5 W
- Small cross section
- Push terminals for simple wiring
System solution
- Tridonic LLE-FLEX ADV G2 600, 1,200, 1,800 lm/m
- Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
- In connection with Flex accessories wire to PCB plug
EAN/UPC: 9006210799940
Country of Origin: CN
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output voltage: | 24 |
|---|---|
| operating mode: | constant voltage |
